Description

Price

1

JOINT, CARBURETOR 1 (5B61)

5B6-E3586-00-00

$6.99

2

JOINT

4GL-13595-01-00

$22.99

3

O-RING (22F)

93210-25552-00

$13.49

4

O-RING (22F)

93210-25552-00

$13.49

5

BOLT,SOCKET

91317-06040-00

$3.76

6

BOLT,SOCKET

91317-06025-00

$5.60

7

CASE, AIR CLEANER 1

5B6-14411-00-00

$92.99

8

CAP, CLEANER CASE 1

5B6-14412-00-00

$23.99

9

PLATE, ELEMENT

5B6-14472-00-00

$13.49

10

ELEMENT, AIR CLEANER

5B6-14451-00-00

$9.99

11

DUCT

5B6-14437-01-00

$31.99

12

JOINT, AIR CLEANER 1

5B6-14453-01-00

$38.99

13

SEAL

1VJ-14462-00-00

$18.49

14

SEAL

59V-14457-00-00

$6.99

15

CLIP (21V)

90467-22080-00

$8.49

16

SCREW, BINDING

98907-06025-00

Unavailable

17

PIPE, DRAIN

5XT-1443E-00-00

Unavailable

18

CLIP(1JH)

90467-11106-00

Unavailable

19

PIPE

5Y1-14419-00-00

Unavailable

20

BAND

4TR-13474-02-00

Unavailable

21

SCREW, WITH WASHER (5U8)

90159-06056-00

Unavailable

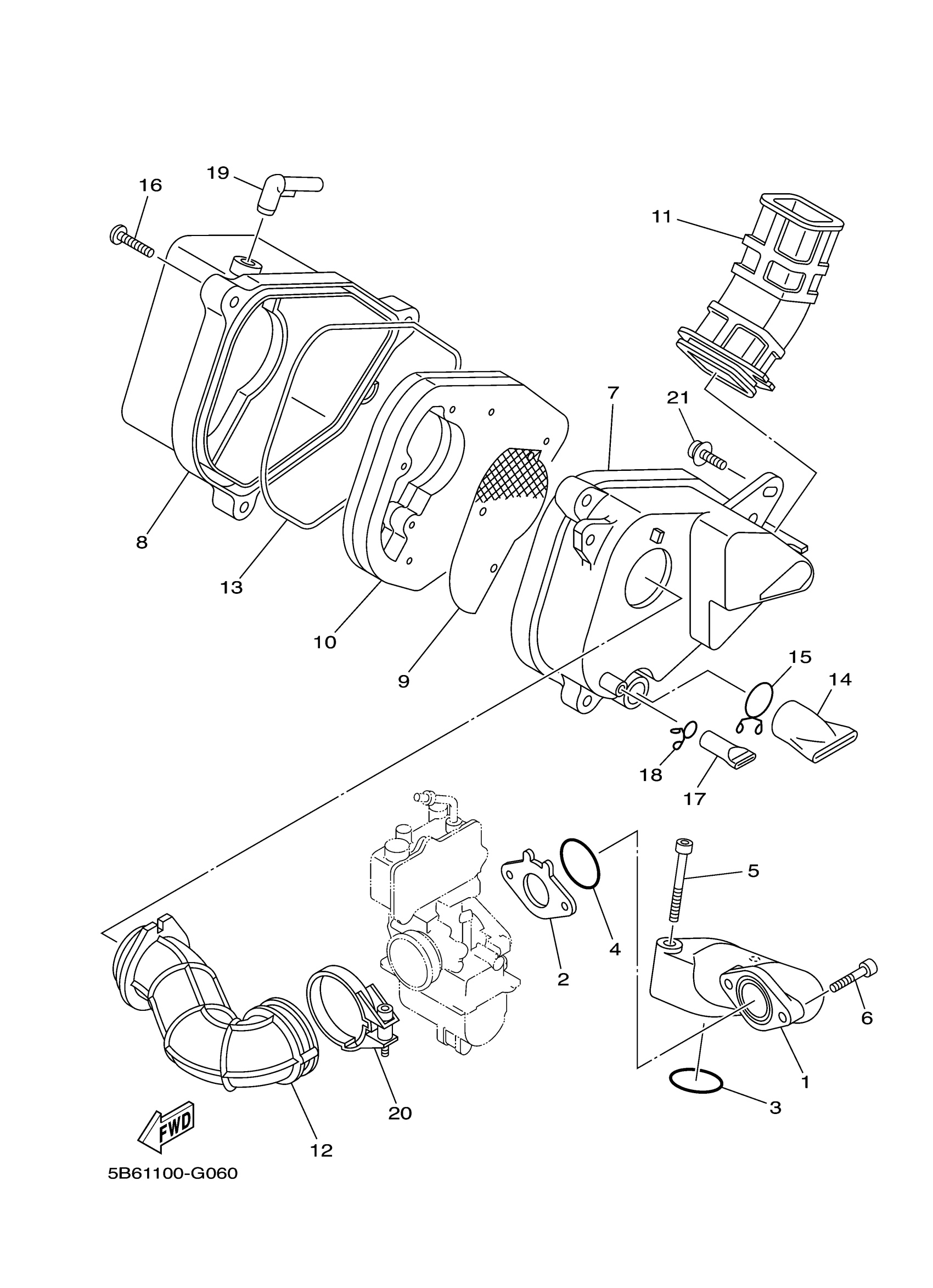

Yamaha TTR110ESC (TTR110E CA) BMAM 2025 INTAKE Diagram

JOINT, CARBURETOR 1 (5B61)

JOINT

O-RING (22F)

O-RING (22F)

BOLT,SOCKET

BOLT,SOCKET

CASE, AIR CLEANER 1

CAP, CLEANER CASE 1

PLATE, ELEMENT

ELEMENT, AIR CLEANER

DUCT

JOINT, AIR CLEANER 1

SEAL

SEAL

CLIP (21V)

SCREW, BINDING

PIPE, DRAIN

CLIP(1JH)

PIPE

BAND

SCREW, WITH WASHER (5U8)
