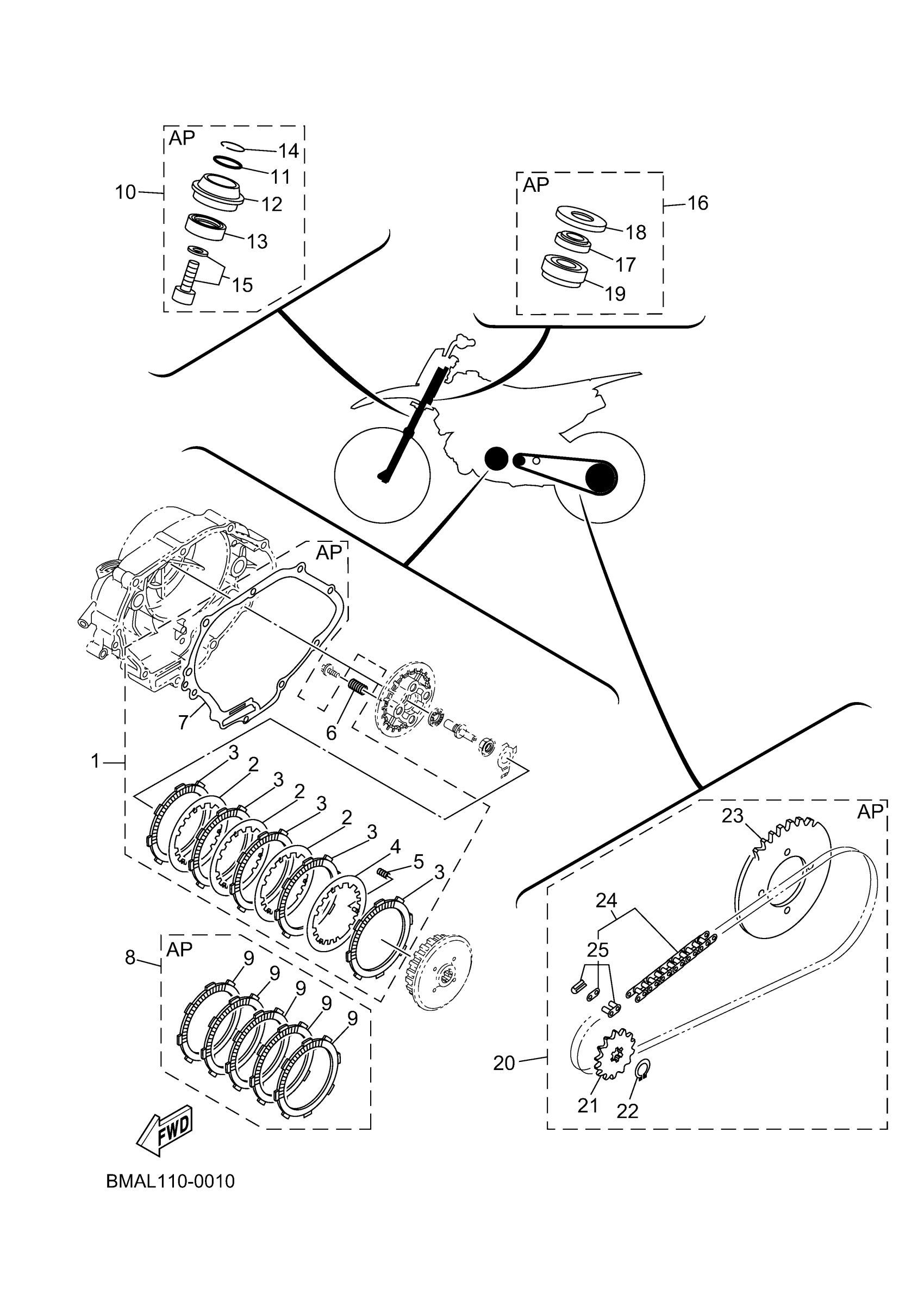

Yamaha TTR110ESC (TTR110E CA) BMAM 2025 2 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

B51-W001G-00-00

Unavailable

2

PLATE, CLUTCH 1 (2P21)

2P2-E6324-00-00

$2.13

3

PLATE, FRICTION (2P21)

2P2-E6321-00-00

$9.49

4

PRESSURE PLATE ASSY (2P21)

2P2-E6350-00-00

Unavailable

5

SPRING, COMPRESSION(2JG)

90501-050F1-00

$4.67

6

SPRING, COMPRESSION(3YR)

90501-203G2-00

$3.35

7

GASKET, CRANKCASE COVER 2 (JUP

4ST-E5461-11-00

$9.99

8

FRICTION PLATE KIT

B51-W001M-00-00

$109.99

9

PLATE, FRICTION (2P21)

2P2-E6321-00-00

$9.49

10

FORK SEAL KIT (ONE FORK)

B51-W003B-00-00

$32.99

11

O-RING

5B6-23147-00-00

$3.59

12

SEAL, DUST

5B6-23144-00-00

$12.99

13

OIL SEAL

5B6-23145-00-00

$24.99

14

RING, STOPPER

1L9-23183-00-00

$6.99

15

BOLT

3M7-23181-00-00

$8.99

16

STEERING BEARING KIT

BMA-W000B-00-00

Unavailable

17

BEARING

93399-99949-00

Unavailable

18

COVER, BALL RACE 2

5HP-23416-00-00

Unavailable

19

BEARING(4ES)

93332-00079-00

Unavailable

20

CHAIN & SPROCKET KIT

B51-W001A-00-00

Unavailable

21

SPROCKET, DRIVE (5B61)

93812-14814-00

Unavailable

22

CIRCLIP (525)

93410-20038-00

Unavailable

23

SPROCKET, DRIVEN (35T)

5A7-25435-01-00

Unavailable

24

CHAIN, DRIVE

9Y580-52089-00

Unavailable

25

JOINT, CHAIN (29A)

94680-52001-00

Unavailable
