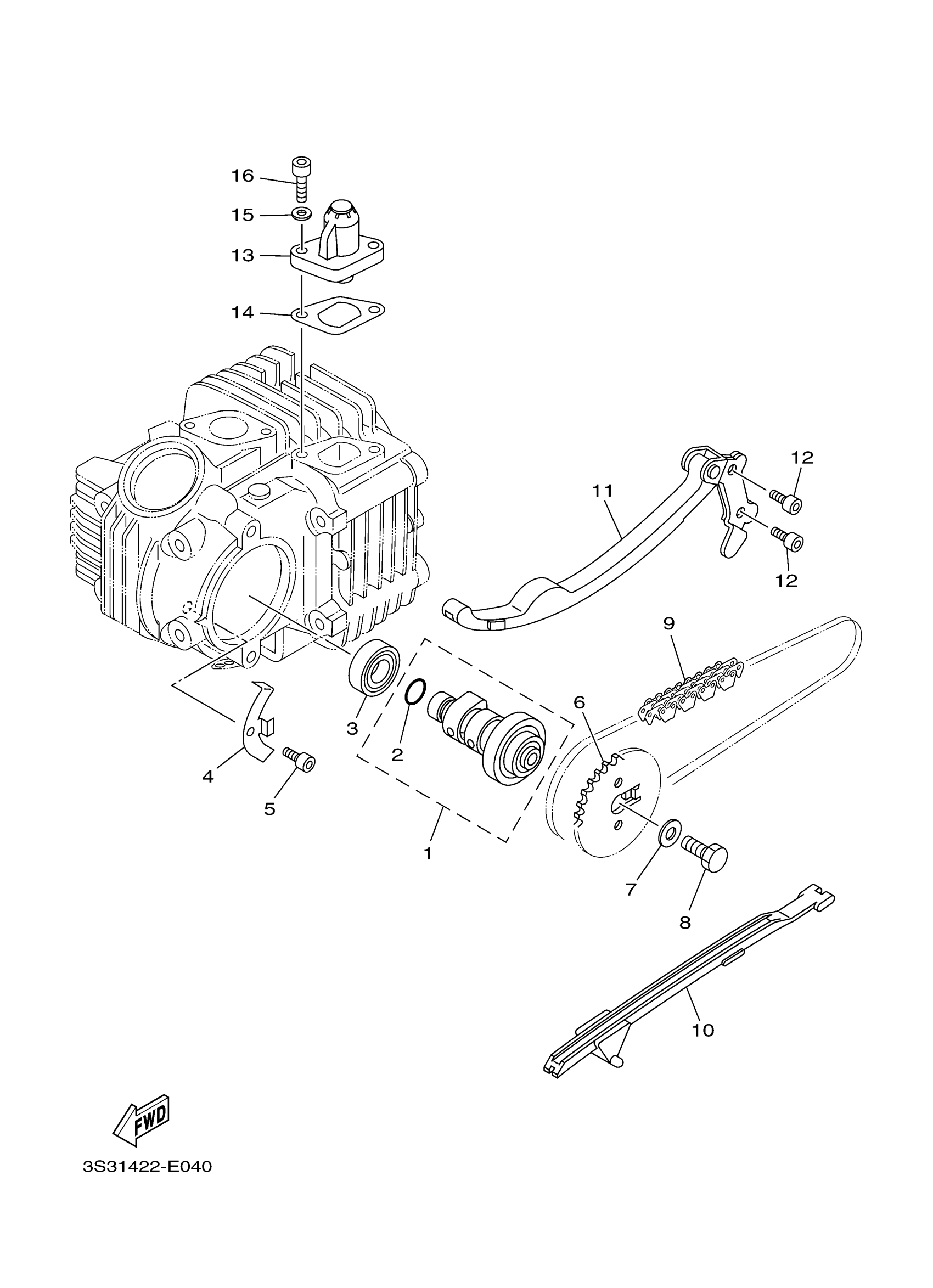

Yamaha TTR110ERC (TTR110E CA) BMAF 2024 CAMSHAFT & CHAIN Diagram

CAMSHAFT ASSY 1 (JUPITER Z)

5TP-E2170-00-00

$56.94

O-RING (4G0)

93210-11453-00

$5.47

BEARING(4ES)

93306-00210-00

$21.00

PLATE (JUPITER-Z)

5TP-E111F-00-00

$1.54

BOLT,SOCKET

91317-06012-00

$5.75

SPROCKET, CAM CHAIN (30T)

5TN-E2176-00-00

Unavailable

WASHER (853)

90201-08326-00

$5.75

BOLT, HEXAGON (22F)

90101-08590-00

$2.08

CHAIN, CAMSHAFT (JUPITER-Z) SC

94568-B3086-00

$15.55

GUIDE, STOPPER 1

2P2-E2231-00-00

$12.43

GUIDE, STOPPER 2

2P2-E2241-00-00

$54.64

BOLT,SOCKET

91317-06016-00

$1.15

TENSIONER ASSY, CAM CHAIN

5TN-E2210-10-00

$105.09

GASKET, TENSIONER CASE (3P91)

3S0-E2213-00-00

$5.97

GASKET 256113960000

90430-06014-00

Unavailable

BOLT,SOCKET

91317-06018-00

Unavailable
