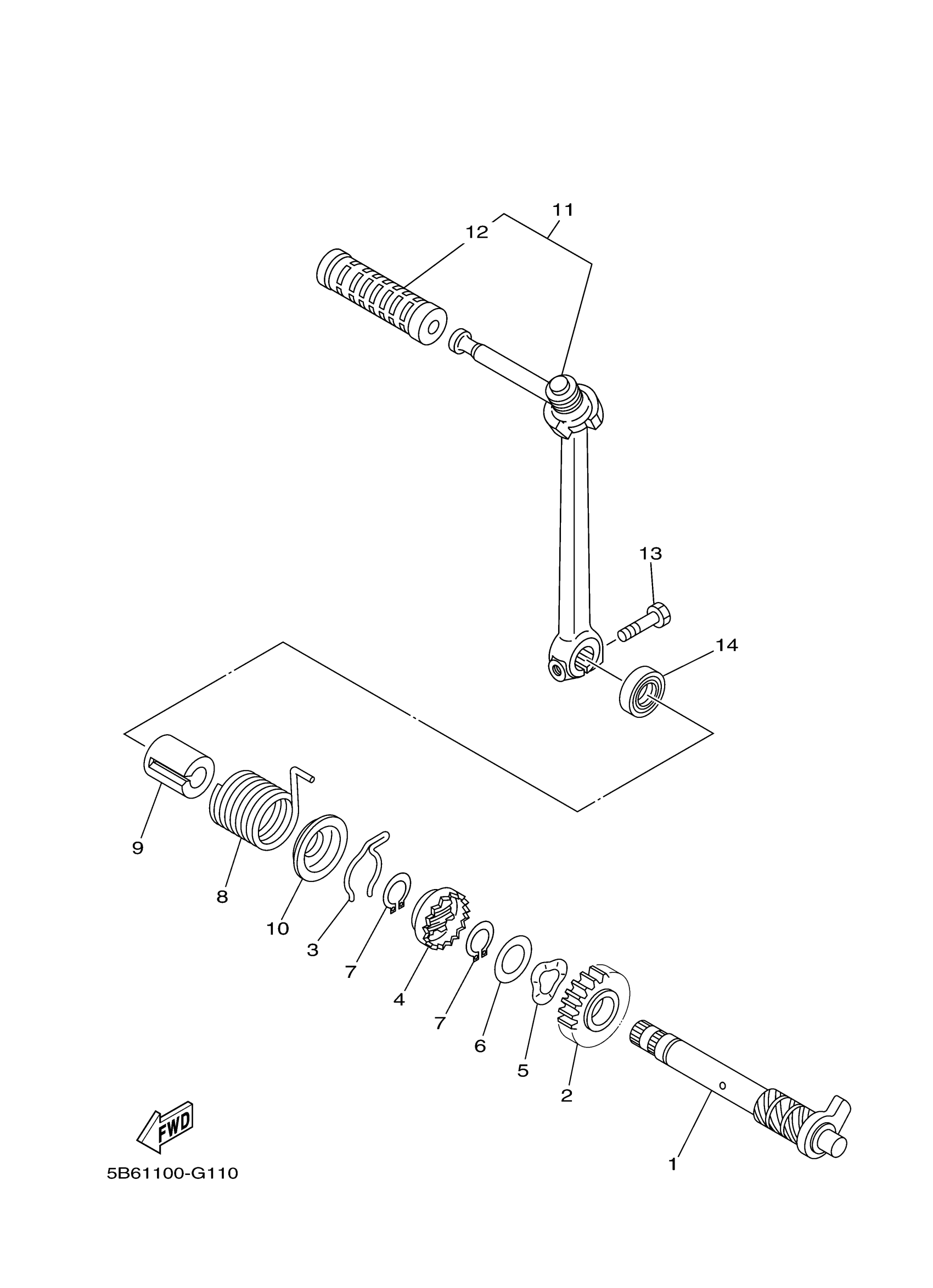

Yamaha TTR110EPC (TTR110E CA) BMA9 2023 STARTER Diagram

#

Description
Price

1

KICK AXLE ASSY (JUPITER-Z)

5TP-E5660-00-00

$25.26

2

GEAR, KICK

5LM-E5641-00-00

$12.50

3

CLIP(4ES)

90468-23194-00

$7.37

4

WHEEL, RATCHET

296-15671-00-00

Unavailable

5

WASHER WAVE 296156430000

90206-19027-00

$5.70

6

SHIM

296-15644-00-00

$5.35

7

CIRCLIP(1EY)

99009-19400-00

$5.75

8

SPRING, TORSION

90508-26016-00

$4.45

9

GUIDE, SPRING (3P91)

3S0-E5664-00-00

$1.03

10

GUIDE, SPRING (T105LM)

5LM-E5664-00-00

$0.51

11

KICK CRANK ASSY

5B6-15620-00-00

Unavailable

12

COVER, KICK LEVER

156-15618-01-00

$5.99

13

BOLT, HEXAGON

97017-06025-00

$2.78

14

OIL SEAL (T105) L

93102-15890-00

$4.01
