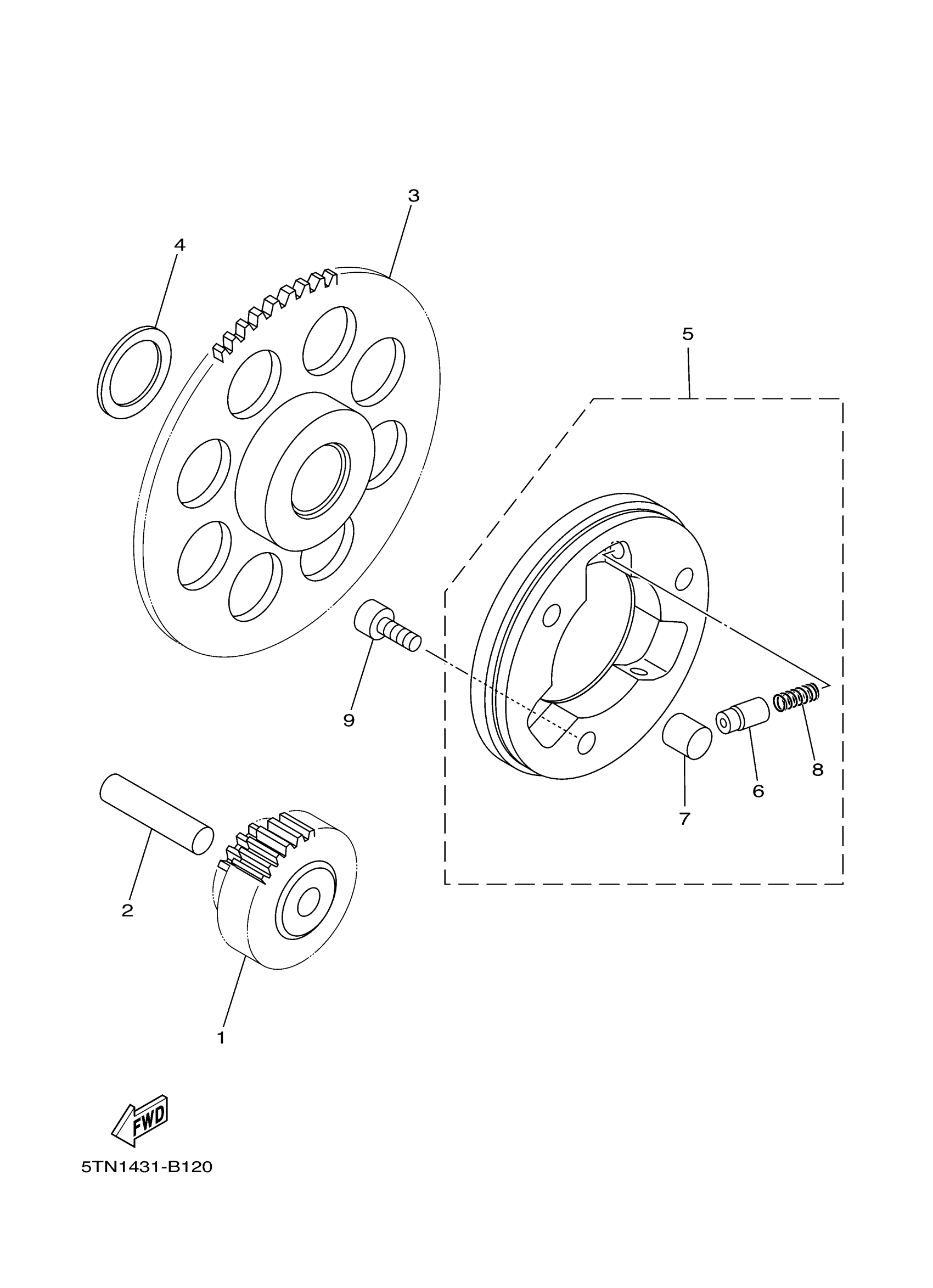

Yamaha TTR110EPC (TTR110E CA) BMA9 2023 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

5TN-E5512-00-00

Unavailable

2

PIN, DOWEL (4H7)

93608-43157-00

$3.85

3

WHEEL, STARTER

5TP-E5524-01-00

$142.97

4

SHIM

296-15644-00-00

$5.35

5

STARTER CLUTCH OUTER ASSY

5HV-E5580-00-00

$199.09

6

CAP, STARTER CLUTCH SPRING

3AY-15583-00-00

$2.45

7

PIN, DOWEL (5J3)

93610-10174-00

$3.68

8

SPRING, COMPRESSION (5J3)

90501-02639-00

$2.44

9

BOLT,SOCKET

91317-06012-00

$5.75
