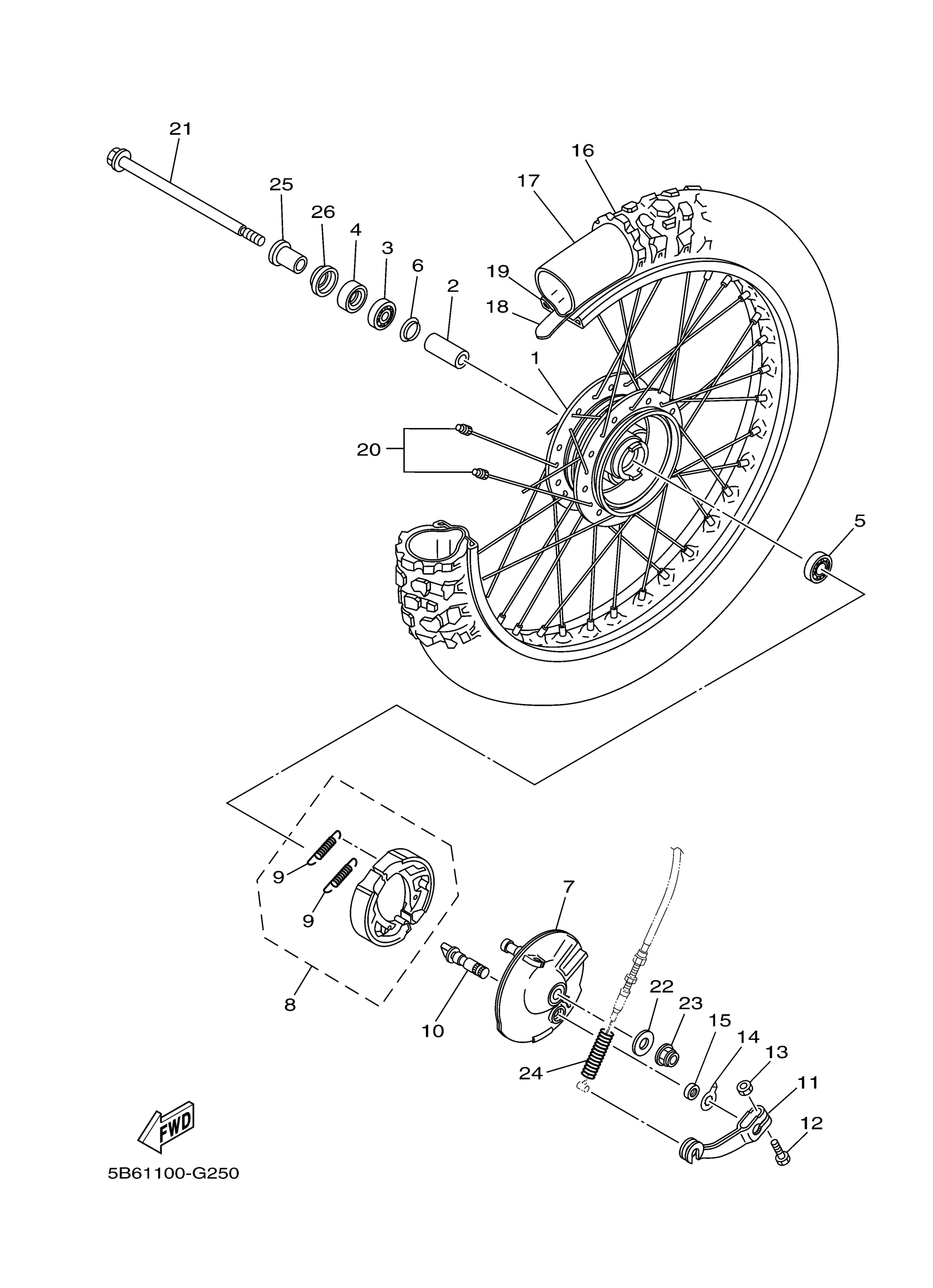

Yamaha TTR110EPC (TTR110E CA) BMA9 2023 FRONT WHEEL Diagram

#

Description
Price

1

HUB, FRONT

451-25111-00-35

$167.99

2

SPACER 451251170000

90560-10103-00

$17.99

3

BEARING

93306-20004-00

Unavailable

4

OIL SEAL (17X30X8.5-451)

93106-17006-00

$11.49

5

BEARING (3R0)

93306-20009-00

$44.99

6

FLANGE, SPACER 2

2E9-25116-00-00

$7.99

7

PLATE, BRAKE SHOE

5B6-25121-00-35

Unavailable

8

BRAKE SHOE KIT

5B6-W253A-00-00

$20.99

9

SPRING TENSION 451251330000

90506-14081-00

$8.49

10

CAMSHAFT

5B6-25151-00-00

Unavailable

11

LEVER, CAM SHAFT

451-25155-00-00

Unavailable

12

BOLT, HEXAGON (462)

90101-06291-00

$8.49

13

NUT(6TA)

95317-06600-00

$3.55

14

INDICATOR

3L8-2513A-00-00

$7.99

15

OIL SEAL

93104-10001-00

$5.60

16

TIRE

94125-141A6-00

Unavailable

17

TUBE (3L8)

94220-14143-00

Unavailable

18

BAND, RIM (1K8)

94327-14076-00

Unavailable

19

RIM

94414-14227-00

Unavailable

20

SPOKE SET, FRONT

3R0-25104-00-00

Unavailable

21

AXLE, WHEEL

5B6-25181-00-00

Unavailable

22

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

23

NUT, S/L FLANGE

95602-10200-00

Unavailable

24

SPRING, COMPRESSION(52H)

90501-123A0-00

Unavailable

25

COLLAR (3R0)

90387-10744-00

Unavailable

26

COVER, HUB DUST

451-25118-00-00

Unavailable
