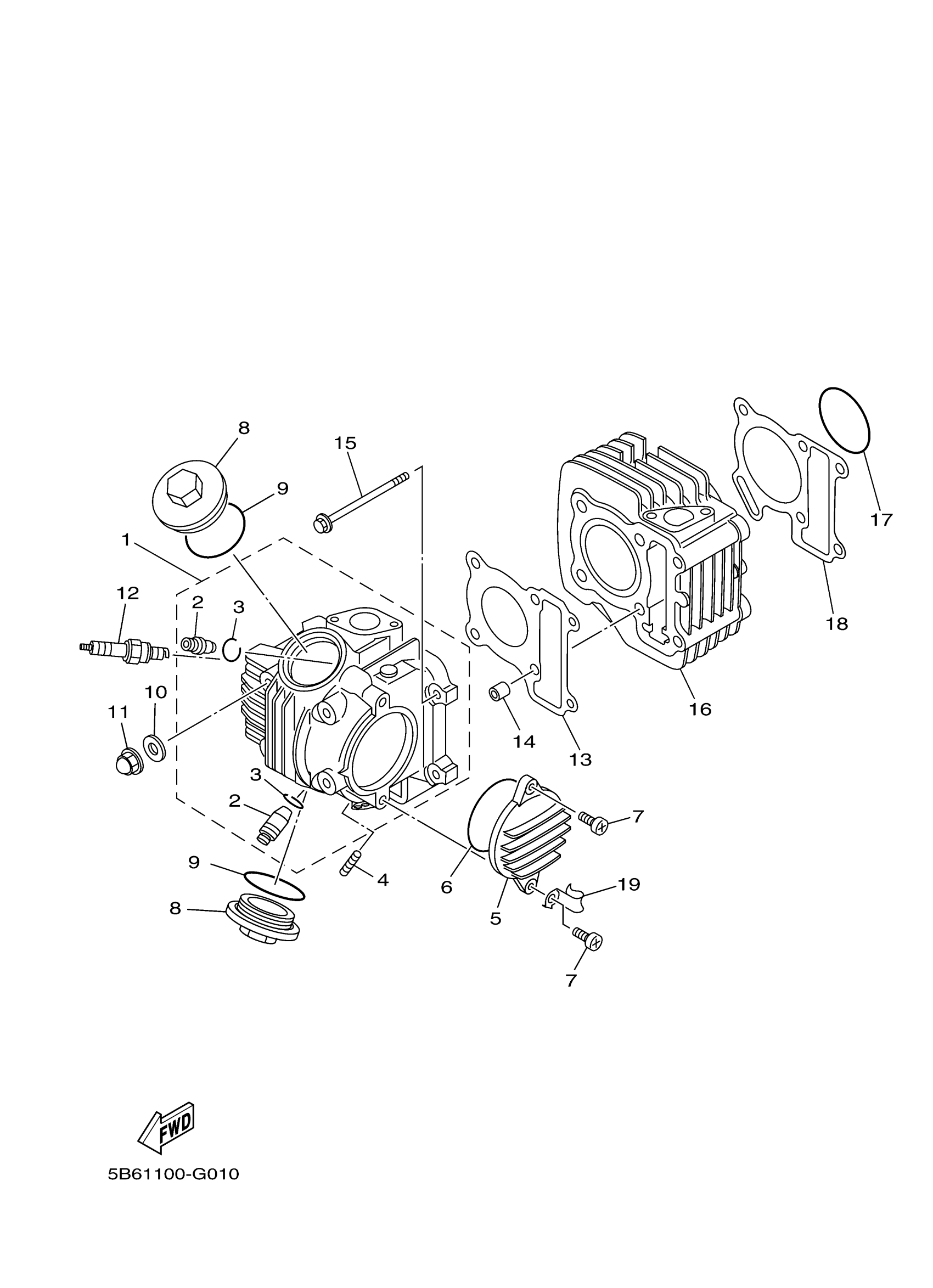

Yamaha TTR110EPC (TTR110E CA) BMA9 2023 CYLINDER HEAD Diagram

HEAD, CYLINDER 1 (JUPITER-Z)

5TP-E1111-30-00

Unavailable

GUIDE, EXHAUST VALVE

4ST-11134-11-00

Unavailable

CIRCLIP(1WG)

93440-10153-00

$2.39

BOLT

22F-14651-00-00

$6.99

COVER, CYLINDER HEAD SIDE 1

4ST-E1185-01-00

$4.35

O-RING (22F)

93210-63556-00

$5.60

SCREW, PAN HEAD(3TJ)

98507-06016-00

$3.48

COVER, CYLINDER HEAD SIDE 2 (4

4ST-E1186-00-00

$26.99

O-RING(55X)

93210-44704-00

$7.49

WASHER, PLATE

90201-080L7-00

$4.82

NUT, CROWN (4G0)

90176-08026-00

$14.99

CR6HS-A NGK SPLUG 4PK

CR6-HSA00-00-00

Unavailable

GASKET, CYLINDER HEAD 1

5TN-E1181-00-00

Unavailable

PIN, DOWEL

91810-14809-00

$2.72

BOLT, SMALL FLANGE

95027-06090-00

Unavailable

CYLINDER

5TP-E1310-01-00

Unavailable

O-RING (4G0)

93210-56459-00

Unavailable

GASKET, CYLINDER (KT) T105

4ST-E1351-02-00

Unavailable

CLAMP (22K)

90465-08230-00

Unavailable
