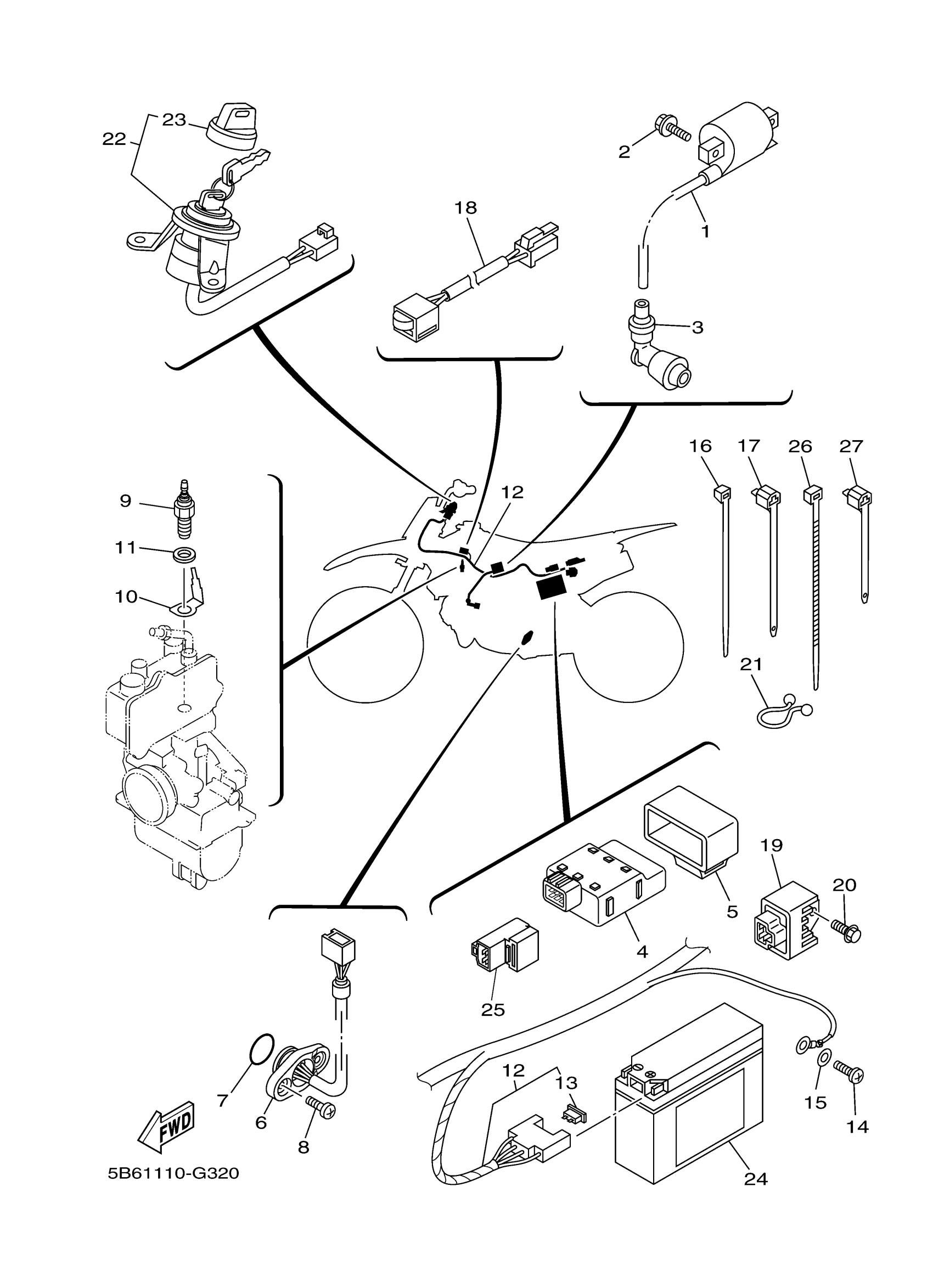

Yamaha TTR110ENC (TTR110E CA) BMA5 2022 ELECTRICAL 1 Diagram

IGNITION COIL ASSY

4KJ-82310-13-00

$38.99

BOLT, FLANGE

95022-06016-00

$3.62

PLUG CAP ASSY

4BP-82370-01-00

$35.99

C.D.I. UNIT ASSY

5B6-85540-01-00

$295.99

BAND

3MB-85546-00-00

Unavailable

NEUTRAL SWITCH ASSY

3S0-H2540-00-00

$16.49

O-RING (25G)

93210-20573-00

$8.49

SCREW, PAN HEAD(3LA)

98517-05010-00

$4.25

HEATER ASSY

5FU-83790-20-00

$49.99

TERMINAL 1

5FU-82103-00-00

$7.99

WASHER, PLATE

90201-08016-00

$8.49

WIRE HARNESS ASSY

5B6-82590-01-00

$195.99

FUSE (10A)

42X-82151-00-00

$4.32

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

WASHER, PLAIN (646)

92990-06600-00

$2.80

BAND

1UA-82591-00-00

Unavailable

BAND, SWITCH CORD

437-83936-11-00

Unavailable

THERMO SWITCH ASSY

B51-82560-00-00

Unavailable

RECTIFIER & REGULATOR ASSY

3LA-81960-01-00

Unavailable

BOLT, FLANGE

95022-06012-00

Unavailable

CLAMP (3Y2)

90464-16039-00

Unavailable

MAIN SWITCH ASSY

5B6-82510-01-00

Unavailable

CAP, KEY

3HN-82579-00-00

Unavailable

GT4B5 GS BATTERY - FA

GT4-B5000-00-00

Unavailable

RELAY ASSY (29U-93)

29U-81950-93-00

Unavailable

BAND

1UA-82591-00-00

Unavailable

CLAMP(6E8)

90465-13M39-00

Unavailable
