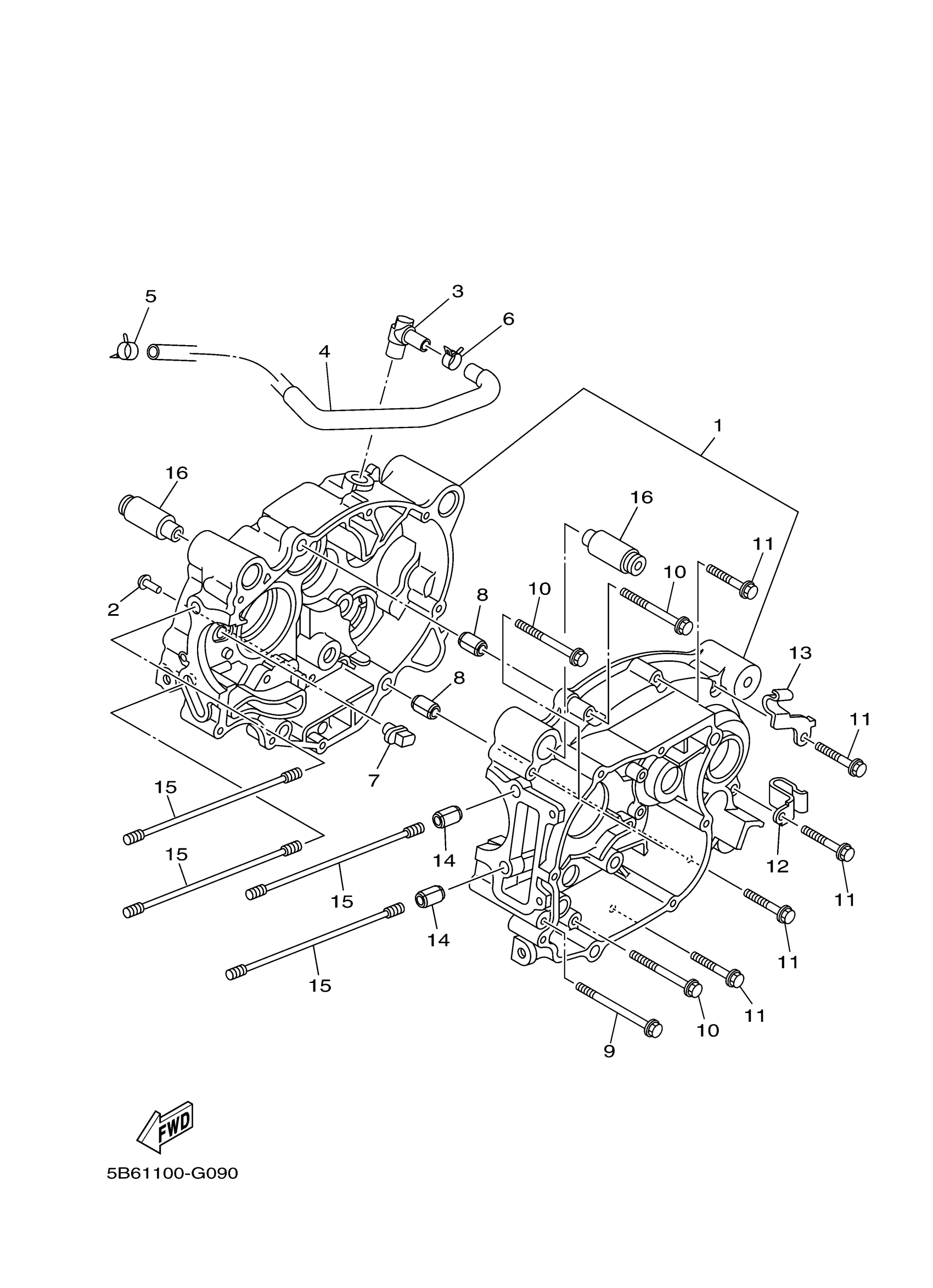

Yamaha TTR110ENC (TTR110E CA) BMA5 2022 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY (2P23,2P24,17B1

3S0-E5150-01-00

$227.99

2

HOOK, SPRING

5HV-E6346-00-00

Unavailable

3

BREATHER (5B61)

5B6-E5371-00-00

$7.99

4

PIPE, BREATHER 1 (5B61)

5B6-E1166-00-00

$13.49

5

CLIP(3YX)

90467-13133-00

$8.49

6

CLIP (3P91)

90467-13808-00

$1.07

7

NOZZLE 3

5TP-E5155-00-00

Unavailable

8

PIN, DOWEL

91810-14809-00

$2.72

9

BOLT, FLANGE

95022-06080-00

$4.24

10

BOLT, FLANGE

95022-06060-00

$8.49

11

BOLT, FLANGE

95022-06040-00

$3.45

12

CLAMP

90465-10833-00

Unavailable

13

CLAMP

90462-10801-00

Unavailable

14

PIN, DOWEL

91810-14809-00

$2.72

15

BOLT, STUD

90116-08807-00

Unavailable

16

DAMPER

5VT-E5316-10-00

Unavailable
