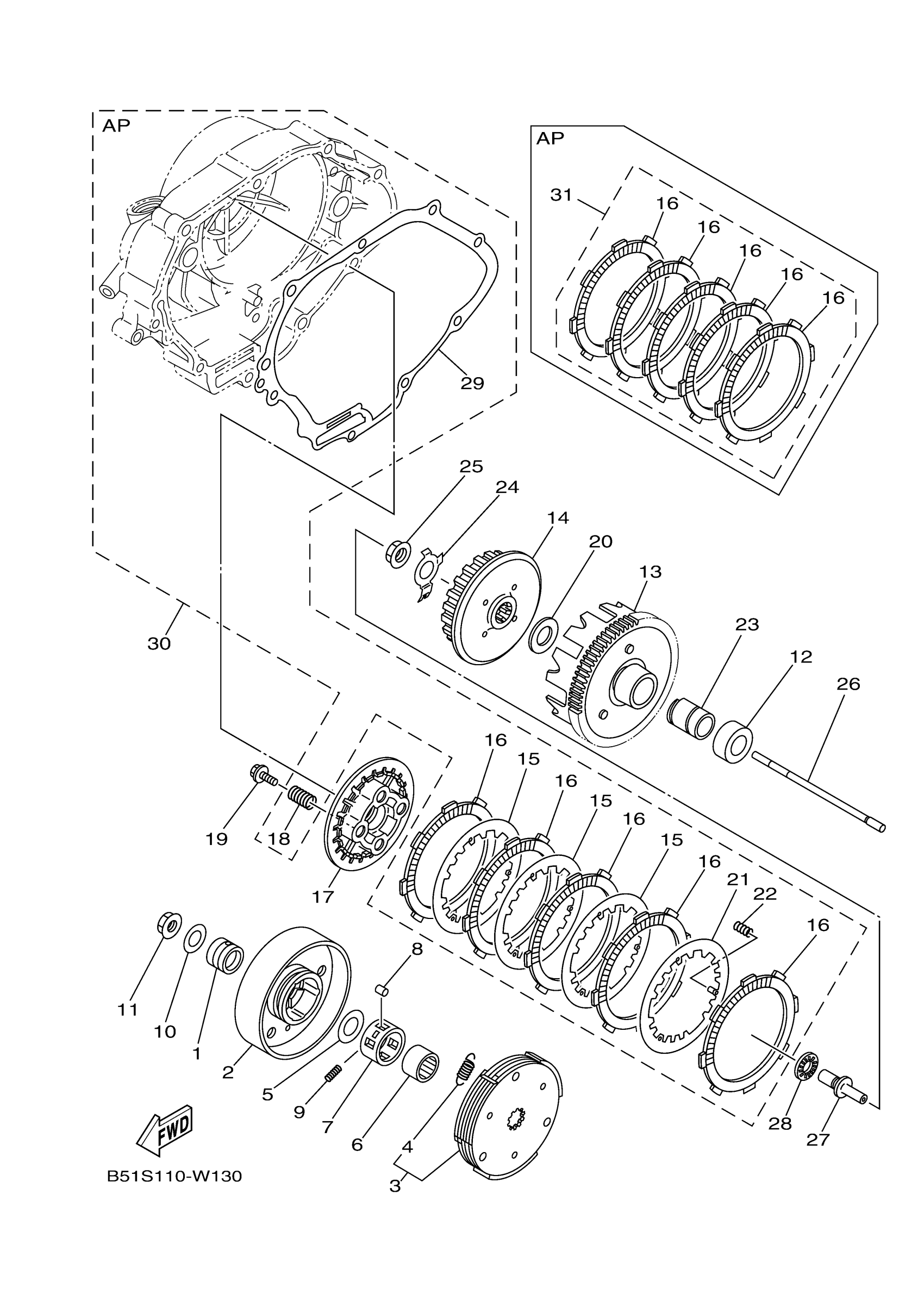

Yamaha TTR110ENC (TTR110E CA) BMA5 2022 CLUTCH Diagram

COLLAR

90387-16001-00

Unavailable

CLUTCH HOUSING COMP.(2P21)

2P2-E6611-00-00

$40.99

CLUTCH CARRIER ASSY (2P21)

2P2-E6620-00-00

$65.99

. SPRING, CLUTCH WEIGHT 1

2P2-E6626-00-00

Unavailable

WASHER, PLATE(4GL)

90201-167P7-00

$9.49

BOSS, CLUTCH HOUSING

4GL-16512-01-00

$60.99

CAGE (5D93,31B3)

5D9-E6586-00-00

$3.24

PIN, DOWEL

93606-10800-00

$3.28

SPRING, COMPRESSION

90501-04800-00

Unavailable

WASHER, PLATE

90201-12019-00

$4.99

NUT(1EE)

90179-12659-00

$8.49

SPACER(4GL)

90560-17384-00

Unavailable

PRIMARY DRIVEN GEAR COMP.(2P21

2P2-E6150-00-00

$70.99

BOSS, CLUTCH (2P21)

2P2-E6371-00-00

$10.99

PLATE, CLUTCH 1 (2P21)

2P2-E6324-00-00

$2.13

PLATE, FRICTION (2P21)

2P2-E6321-00-00

Unavailable

PLATE, PRESSURE 1 (2P21)

2P2-E6351-00-00

Unavailable

SPRING, COMPRESSION(3YR)

90501-203G2-00

Unavailable

BOLT, HEXAGON WITH WASHER(353)

90119-05001-00

Unavailable

PLATE, THRUST 1

4S9-E6154-10-00

Unavailable

PRESSURE PLATE ASSY (2P21)

2P2-E6350-00-00

Unavailable

SPRING, COMPRESSION(2JG)

90501-050F1-00

Unavailable

COLLAR

90387-17004-00

Unavailable

WASHER, LOCK (JUPITER-Z)

5TP-E6135-00-00

Unavailable

NUT

90179-14001-00

Unavailable

ROD, PUSH 2

4S9-E6357-00-00

Unavailable

ROD, PUSH 1

4S9-E6356-00-00

Unavailable

BEARING

93340-210Y0-00

Unavailable

GASKET, CRANKCASE COVER 2 (JUP

4ST-E5461-11-00

Unavailable

CLUTCH PLATE KIT

B51-W001G-00-00

Unavailable

FRICTION PLATE KIT

B51-W001M-00-00

Unavailable
