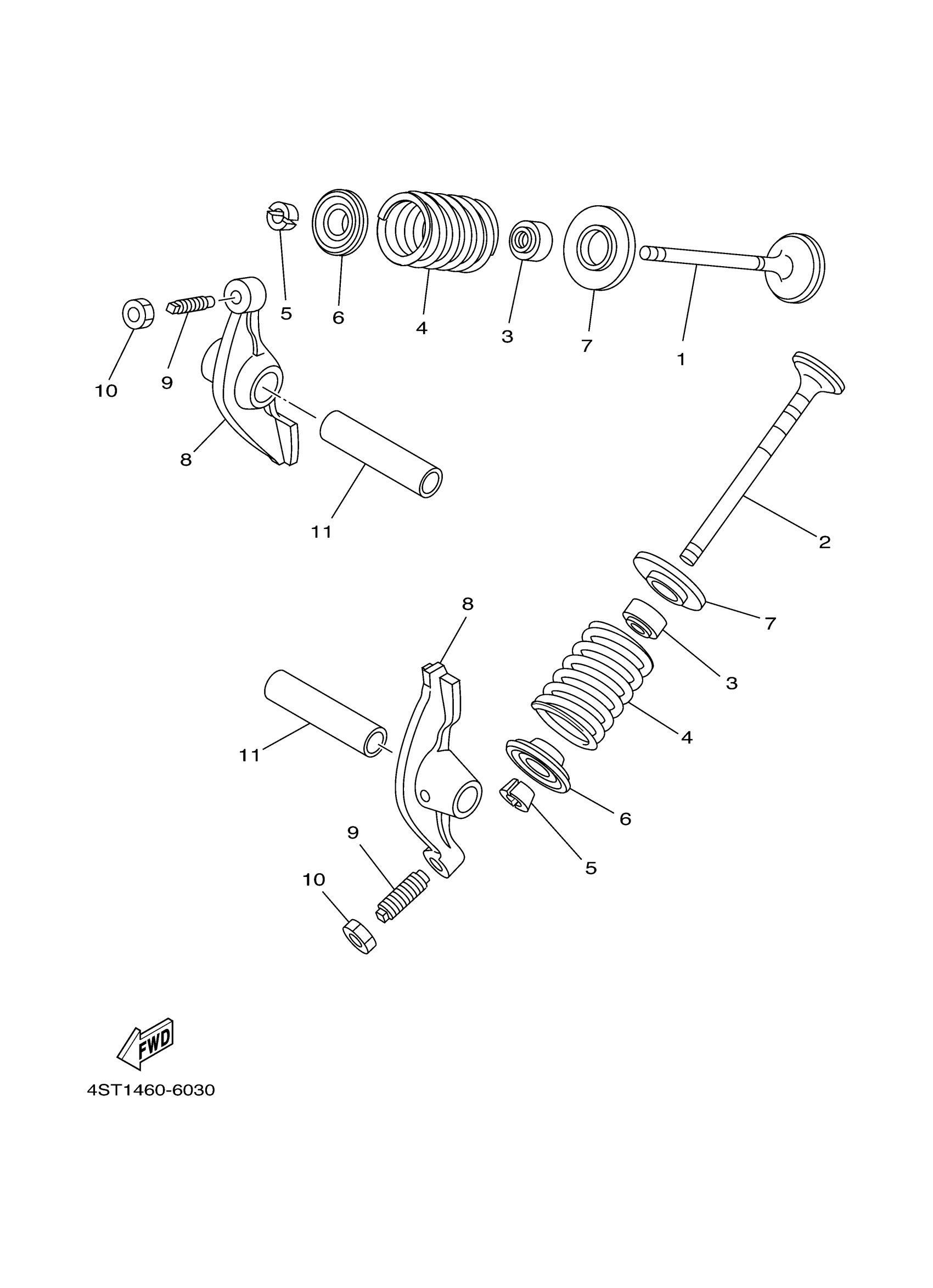

Yamaha TTR110EL (TTR110E) B51M 2020 VALVE Diagram

VALVE, INTAKE

4S9-E2111-00-00

$13.33

VALVE, EXHAUST

4S9-E2121-00-00

$21.88

SEAL, VALVE STEM

4SV-12119-00-00

$18.53

SPRING, VALVE OUTER

5TN-E2114-00-00

$18.52

COTTER, VALVE

1WG-12118-00-00

$5.50

RETAINER, VALVE SPRING

5TN-12117-00-00

$9.02

SEAT, VALVE SPRING 2

4S9-E2126-00-00

$5.95

ARM, VALVE ROCKER (2P22)

2P2-E2151-00-00

Unavailable

SCREW, VALVE ADJUSTING

22F-12159-00-00

$8.56

NUT (22F)

90170-05302-00

$0.70

SHAFT, ROCKER 2

22F-12156-00-00

$17.82
