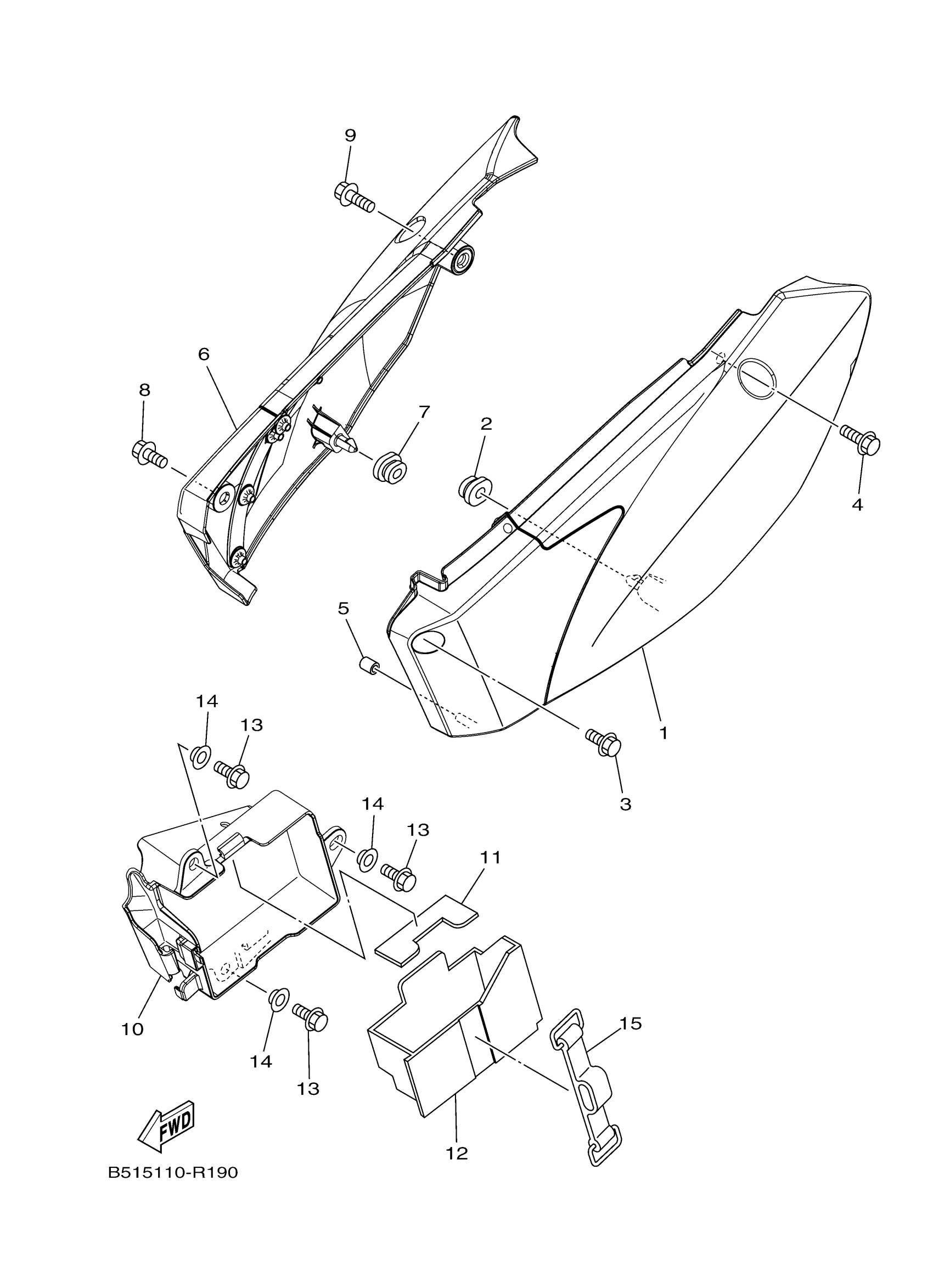

Yamaha TTR110EL (TTR110E) B51M 2020 SIDE COVER Diagram

#

Description

Price

1

SIDE COVER ASSY 1

5B6-21710-00-00

$74.82

2

GROMMET(4DN)

90480-01558-00

$3.68

3

BOLT, FLANGE

95817-06014-00

Unavailable

4

BOLT, FLANGE

95817-06016-00

$1.40

5

DAMPER, LOCATING 1

5B6-21778-00-00

$6.48

6

SIDE COVER ASSY 2

5B6-21720-00-00

$75.12

7

GROMMET(4DN)

90480-01558-00

$3.68

8

BOLT, FLANGE

95817-06014-00

Unavailable

9

BOLT, FLANGE

95817-06016-00

$1.40

10

BOX, BATTERY

5B6-2177G-01-00

$26.06

11

DAMPER

5HN-21746-00-00

$6.33

12

COVER

5HN-2172W-00-00

$16.29

13

BOLT, FLANGE

95817-06014-00

Unavailable

14

COLLAR (8G8)

90387-06681-00

$6.17

15

BAND, BATTERY

34M-82131-00-00

$8.31
