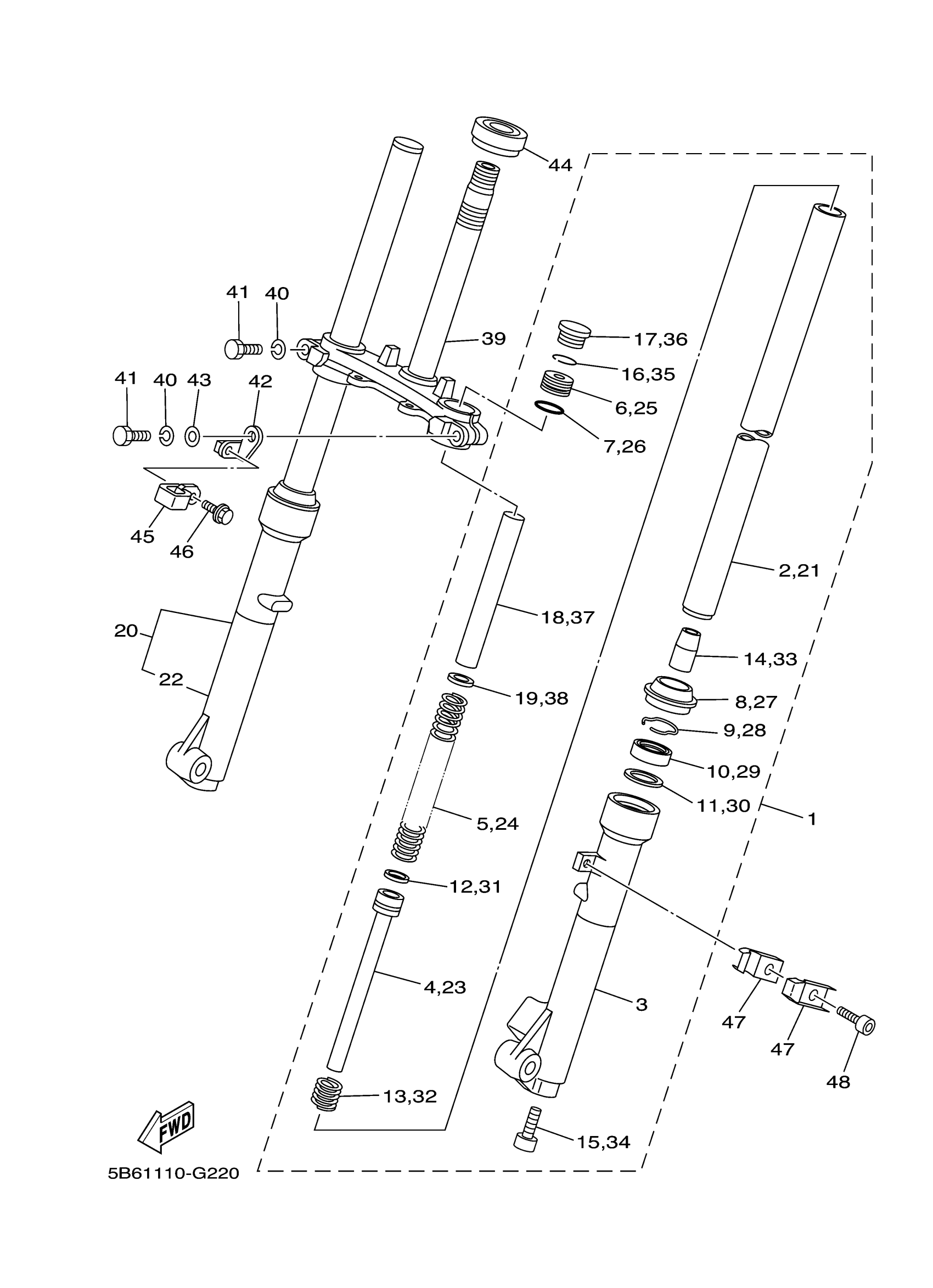

Yamaha TTR110EK (TTR110E) B51H 2019 FRONT FORK Diagram
#
Description
Price
2
INNER TUBE COMP.1
5B6-23110-00-00
Unavailable
16
RING, STOPPER
1L9-23183-00-00
Unavailable
17
CAP, FRONT FORK
3V2-23154-00-00
Unavailable
18
SPACER
5B6-23118-00-00
Unavailable
19
WASHER, SPRING UPPER
5B6-23149-00-00
Unavailable
20
FRONT FORK ASSY (R.H)
5B6-23103-00-00
Unavailable
21
INNER TUBE COMP.1
5B6-23110-00-00
Unavailable
22
TUBE, OUTER (RIGHT)
5B6-23136-00-00
Unavailable
35
RING, STOPPER
1L9-23183-00-00
Unavailable
36
CAP, FRONT FORK
3V2-23154-00-00
Unavailable
37
SPACER
5B6-23118-00-00
Unavailable
38
WASHER, SPRING UPPER
5B6-23149-00-00
Unavailable
39
UNDER BRACKET COMP.
5B6-23340-00-00
Unavailable
40
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
41
BOLT
451-23346-01-00
Unavailable
42
BRACKET 1
5B6-2334G-00-00
Unavailable
43
WASHER, PLATE
92990-10600-00
Unavailable
44
BEARING(4ES)
93332-00079-00
Unavailable
45
HOLDER
5HN-23857-00-00
Unavailable
46
BOLT, FLANGE
90105-05014-00
Unavailable
47
CLAMP (3R0)
90462-14055-00
Unavailable
48
BOLT,SOCKET
91317-06012-00
Unavailable
