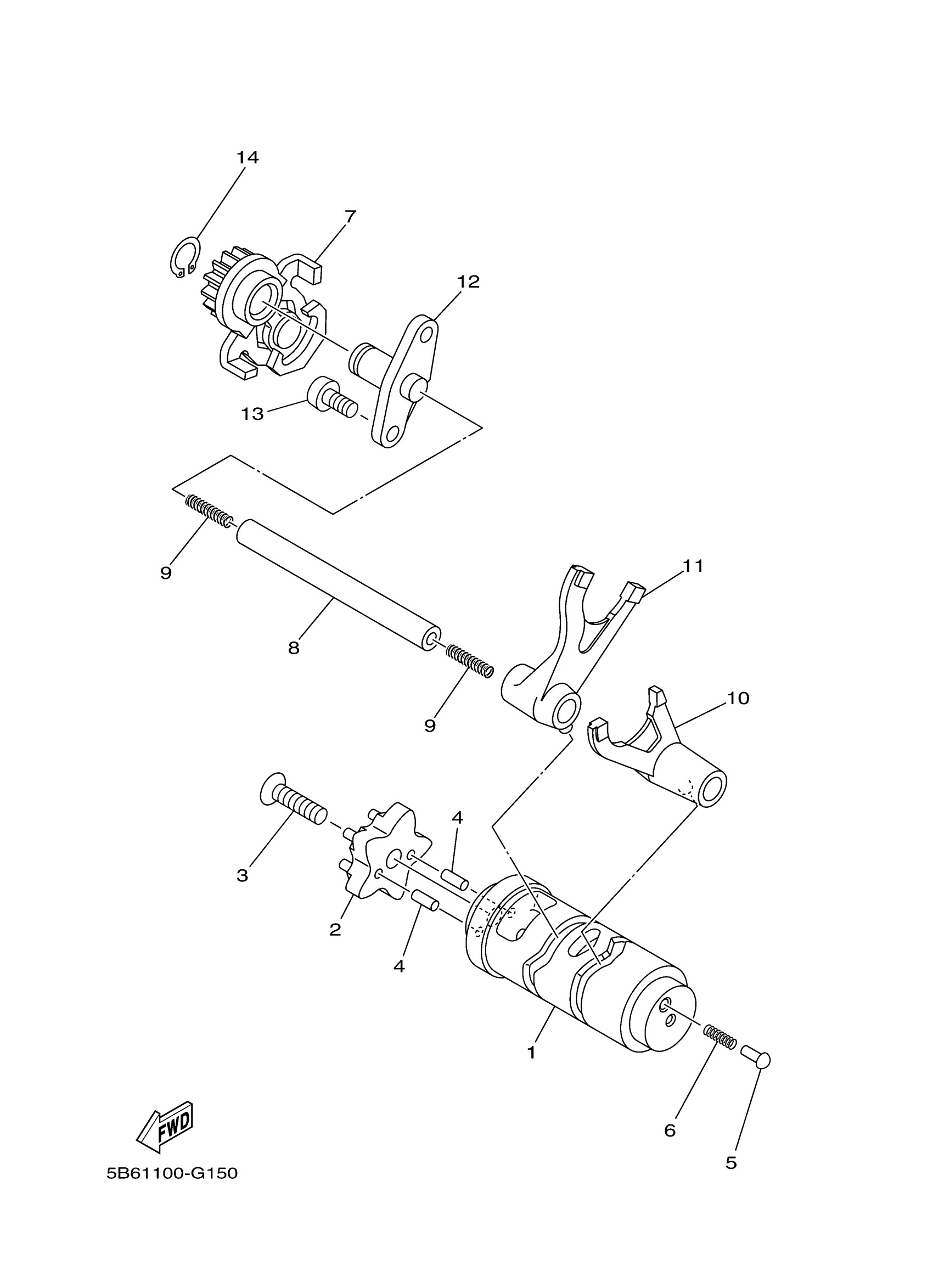

Yamaha TTR110EG (TTR110E) B515 2016 SHIFT CAM FORK Diagram

SHIFT CAM ASSY

BMA-E8540-00-00

$154.99

SEGMENT

5C6-E8185-00-00

Unavailable

SCREW(7YA)

90149-06N01-00

$2.34

PIN,DOWEL (168)

93604-12037-00

$8.49

POINT, NEUTRAL

4BA-18542-00-00

$12.99

SPRING COMPRESSION278185450000

90501-06022-00

$8.49

SHIFT LEVER ASSY (JUPITER-Z)

5TP-E8120-00-00

$22.99

BAR, SHIFT FORK GUIDE 1

5TP-E8531-00-00

Unavailable

SPRING, COMPRESSION

90501-06800-00

$1.01

FORK, SHIFT 1 (VEGA-R)

5LM-E8511-00-00

$39.99

FORK, SHIFT 2

5LM-E8512-00-00

Unavailable

BOSS

5TP-E818A-00-00

Unavailable

BOLT, BUTTON HEAD

92017-06016-00

$8.49

CIRCLIP(10Y)

99009-12400-00

$3.59
