Description

Price

1

CRANKSHAFT ASSY (2P23,3P91,17B

5TP-WE140-30-00

$149.99

2

. PIN, CRANK 1

5LM-E1681-00-00

Unavailable

3

BEARING

93310-526X0-00

Unavailable

4

. ROD, CONNECTING

5TN-E1651-02-00

Unavailable

5

CRANK 2 (JUPITER Z)

5TP-E1422-00-00

Unavailable

6

. SPACER

5ER-E1445-00-00

Unavailable

7

BEARING (T105,YA100)

93306-205YG-00

$31.99

8

KEY WOODRUFF 146115450000

90280-03017-00

$7.49

9

PISTON (STD) 3P91 (KT)

3S0-E1631-00-A0

$15.99

9

PISTON (0.50MM O/S) 3P91 (KT)

3S0-E1636-00-00

$15.49

9

PISTON (1.00MM O/S) 3P91 (KT)

3S0-E1638-00-00

Unavailable

10

PIN, PISTON (KT) (T105SE)

5LM-E1633-00-00

$3.49

11

CIRCLIP (22F)

93450-14088-00

$4.08

12

PISTON RING SET (STD) 3P91

5TP-E1603-20-00

$58.99

12

PISTON RING SET (0.50MM O/S)

5TP-E1605-00-00

$30.99

12

PISTON RING SET (1.00MM O/S)

5TP-E1607-00-00

Unavailable

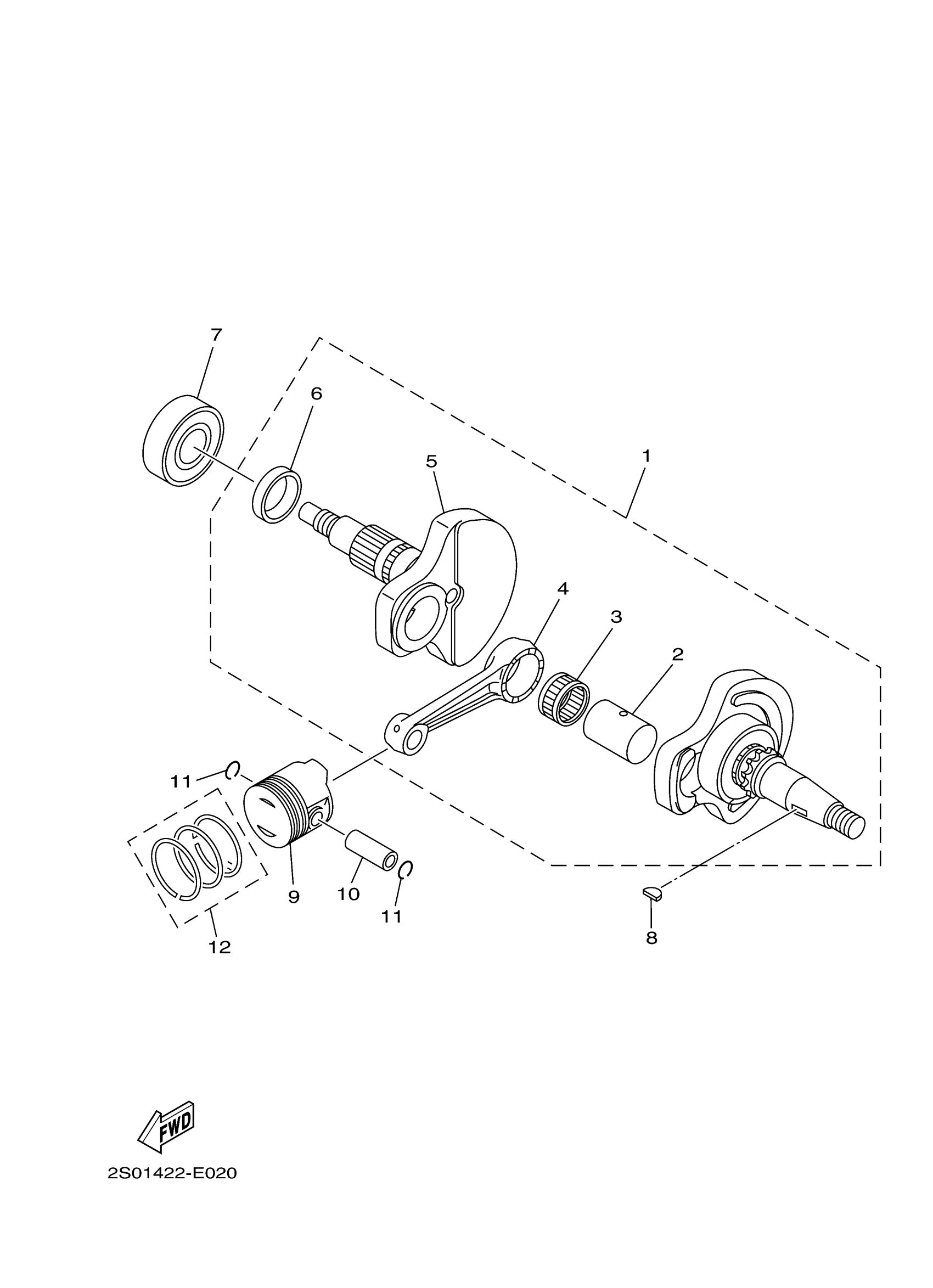

Yamaha TTR110EG (TTR110E) B515 2016 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY (2P23,3P91,17B

. PIN, CRANK 1

BEARING

. ROD, CONNECTING

CRANK 2 (JUPITER Z)

. SPACER

BEARING (T105,YA100)

KEY WOODRUFF 146115450000

PISTON (STD) 3P91 (KT)

PISTON (0.50MM O/S) 3P91 (KT)

PISTON (1.00MM O/S) 3P91 (KT)

PIN, PISTON (KT) (T105SE)

CIRCLIP (22F)

PISTON RING SET (STD) 3P91

PISTON RING SET (0.50MM O/S)

PISTON RING SET (1.00MM O/S)
