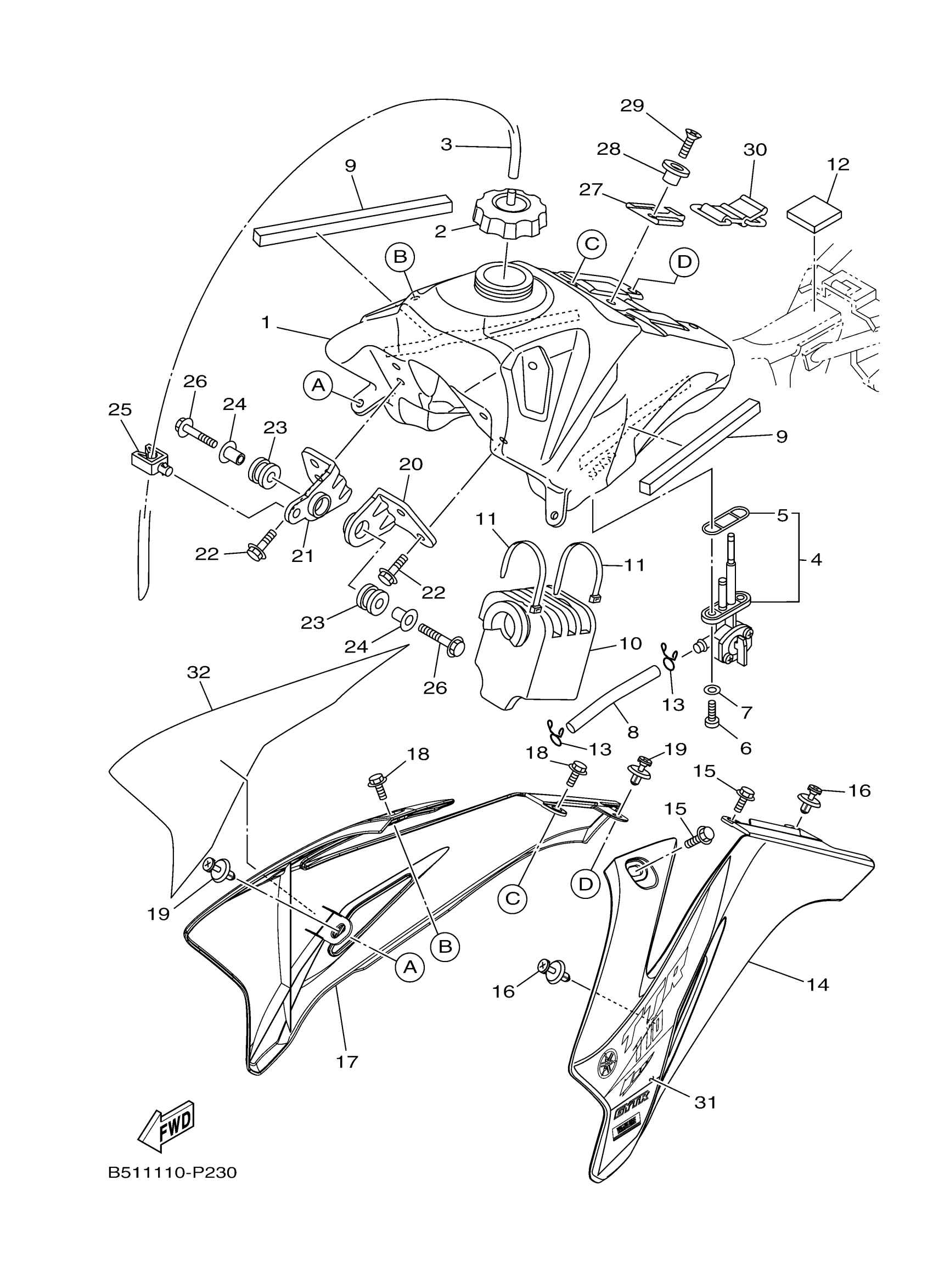

Yamaha TTR110EF (TTR110E) B511 2015 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

5B6-24110-01-00

$313.99

2

CAP ASSY

2FJ-24610-20-00

$68.99

3

PIPE, BREATHER

5B6-21826-10-00

$12.99

4

FUEL COCK ASSY 1

1P6-24500-10-00

$124.99

5

O-RING

1P6-24512-10-00

Unavailable

6

SCREW, PAN

98507-06014-00

$8.49

7

WASHER(6TA)

92907-06600-00

$2.72

8

PIPE, FUEL 1

5B6-24311-00-00

$16.49

9

DAMPER, SIDE COVER

5B6-2411J-00-00

Unavailable

10

DAMPER, LOCATING 1

5B6-24181-00-00

Unavailable

11

BAND

1UA-82591-00-00

$4.78

12

DAMPER, LOCATING

2X6-24183-00-00

Unavailable

13

CLIP

90467-090A2-00

$4.41

14

SCOOP AIR ASSY. 1

5B6-2137A-00-00

$55.99

15

BOLT, FLANGE

90105-06064-00

Unavailable

16

RIVET(4JH)

90269-07076-00

Unavailable

17

SCOOP AIR ASSY. 2

5B6-2137B-00-00

Unavailable

18

BOLT, FLANGE

90105-06064-00

Unavailable

19

RIVET(4JH)

90269-07076-00

Unavailable

20

STAY, FUEL TANK 1

5B6-24157-00-00

Unavailable

21

STAY, FUEL TANK 2

5B6-24158-00-00

Unavailable

22

BOLT, FLANGE

95812-06010-00

Unavailable

23

GROMMET (4V1)

90480-18290-00

Unavailable

24

COLLAR (36R)

90387-066J1-00

Unavailable

25

CLAMP

90464-13003-00

Unavailable

26

BOLT, FLANGE

95817-06030-00

Unavailable

27

STAY, FUEL TANK 2

5B6-24116-00-00

Unavailable

28

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

29

SCREW, FLAT HEAD

98702-06025-00

Unavailable

30

BAND, TANK FITTING 1

5B6-24173-00-00

Unavailable

31

GRAPHIC, FUEL TANK

B51-24244-00-00

Unavailable

32

GRAPHIC, FUEL TANK

B51-24245-00-00

Unavailable
