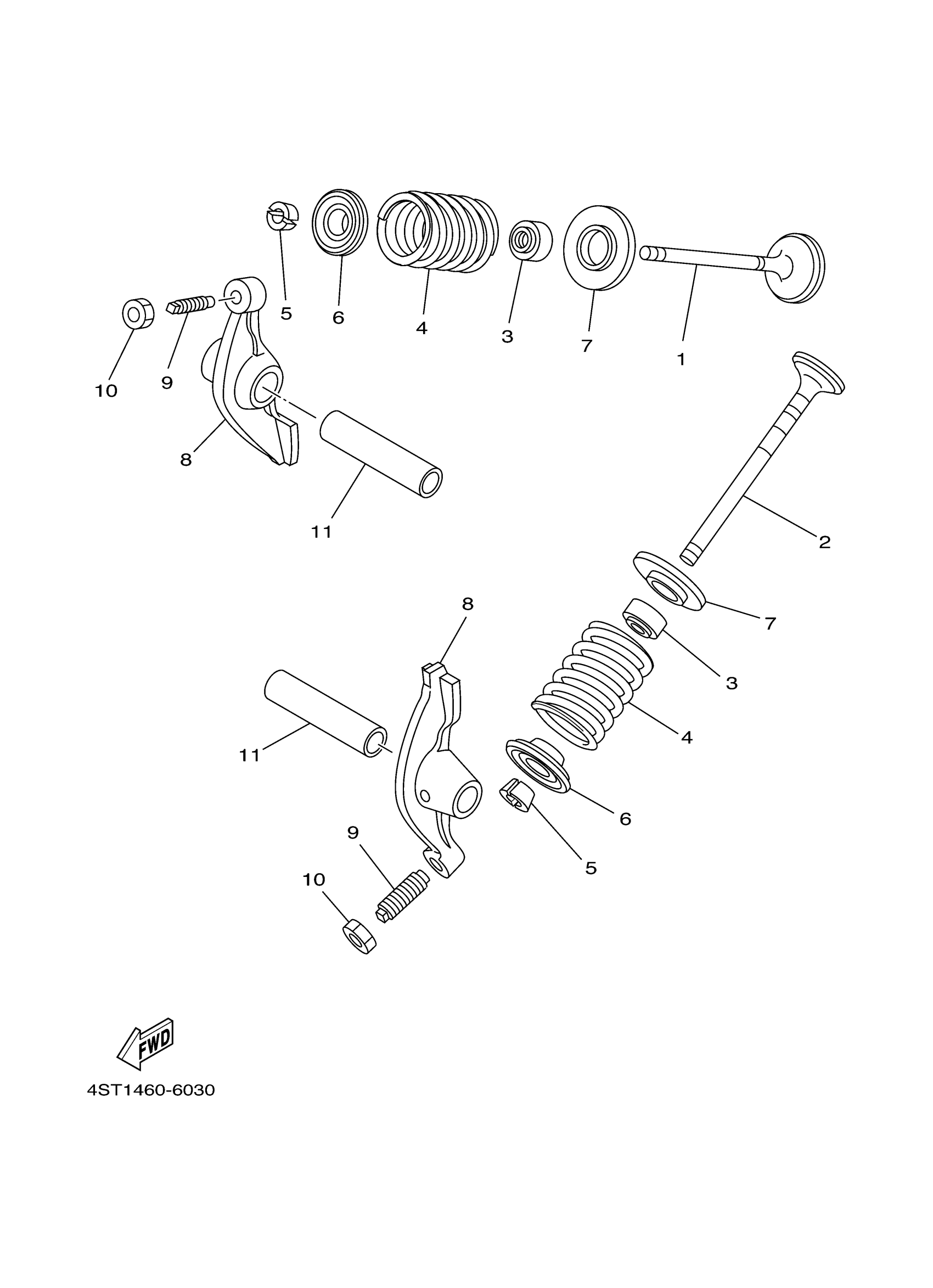

Yamaha TTR110ED (TTR110E) 5B6N 2013 VALVE Diagram

VALVE, INTAKE

4S9-E2111-00-00

$16.49

VALVE, EXHAUST

4S9-E2121-00-00

$28.99

SEAL, VALVE STEM

4SV-12119-00-00

$24.99

SPRING, VALVE OUTER

5TN-E2114-00-00

$22.99

COTTER, VALVE

1WG-12118-00-00

$8.99

RETAINER, VALVE SPRING

5TN-12117-00-00

$9.99

SEAT, VALVE SPRING 2

4S9-E2126-00-00

$6.99

ARM, VALVE ROCKER (2P22)

2P2-E2151-00-00

Unavailable

SCREW, VALVE ADJUSTING

22F-12159-00-00

$9.99

NUT (22F)

90170-05302-00

$5.60

SHAFT, ROCKER 2

22F-12156-00-00

$20.99
