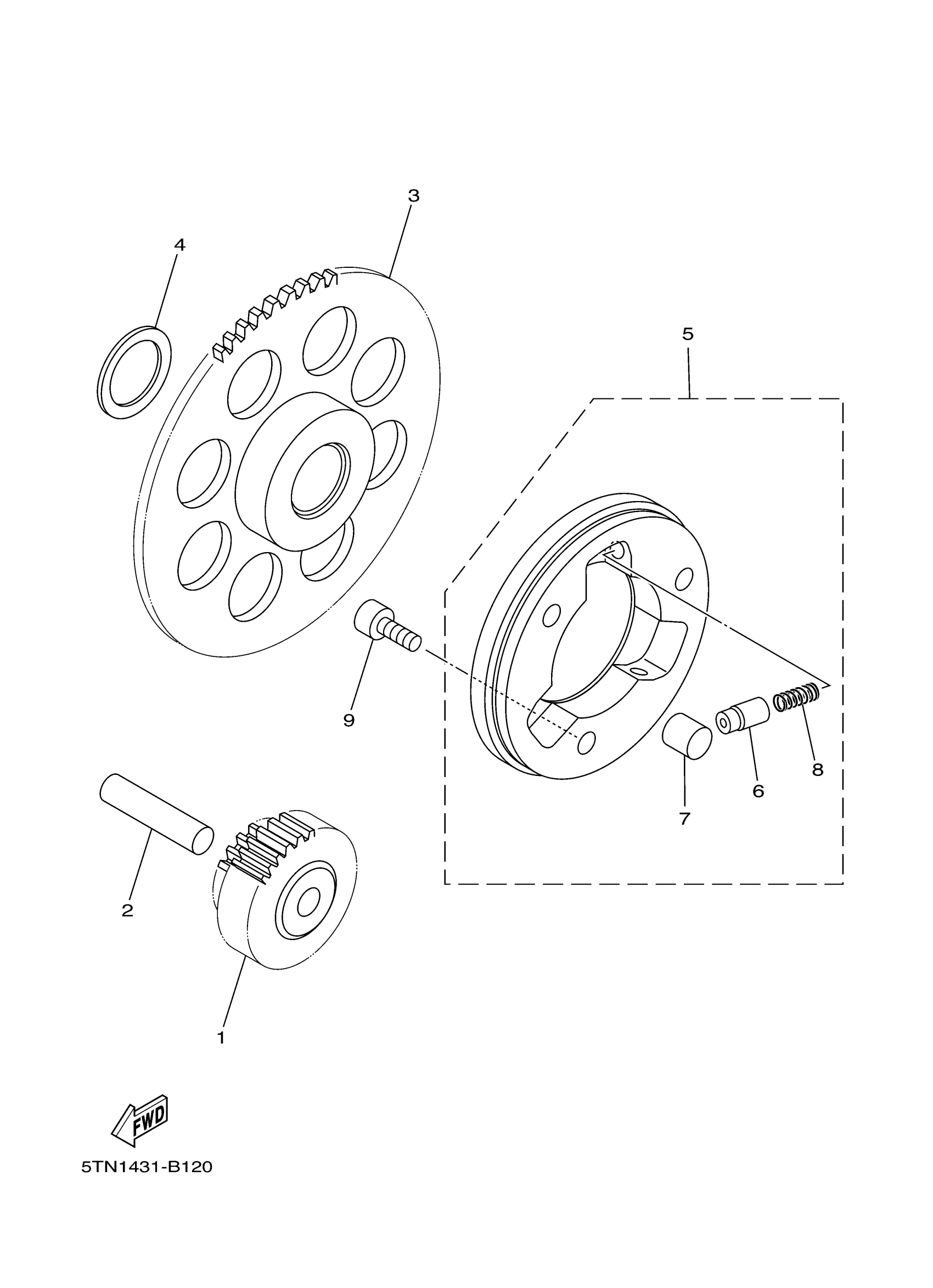

Yamaha TTR110ED (TTR110E) 5B6N 2013 STARTER CLUTCH Diagram

#

Description
Price

1

GEAR, IDLER 1

5TN-E5512-00-00

Unavailable

2

PIN, DOWEL (4H7)

93608-43157-00

$3.79

3

WHEEL, STARTER

5TP-E5524-00-00

Unavailable

4

SHIM

296-15644-00-00

$5.27

5

STARTER CLUTCH OUTER ASSY

5HV-E5580-00-00

$196.12

6

CAP, STARTER CLUTCH SPRING

3AY-15583-00-00

$2.42

7

PIN, DOWEL (5J3)

93610-10174-00

$3.63

8

SPRING, COMPRESSION (5J3)

90501-02639-00

$2.40

9

BOLT,SOCKET

91317-06012-00

$5.75
