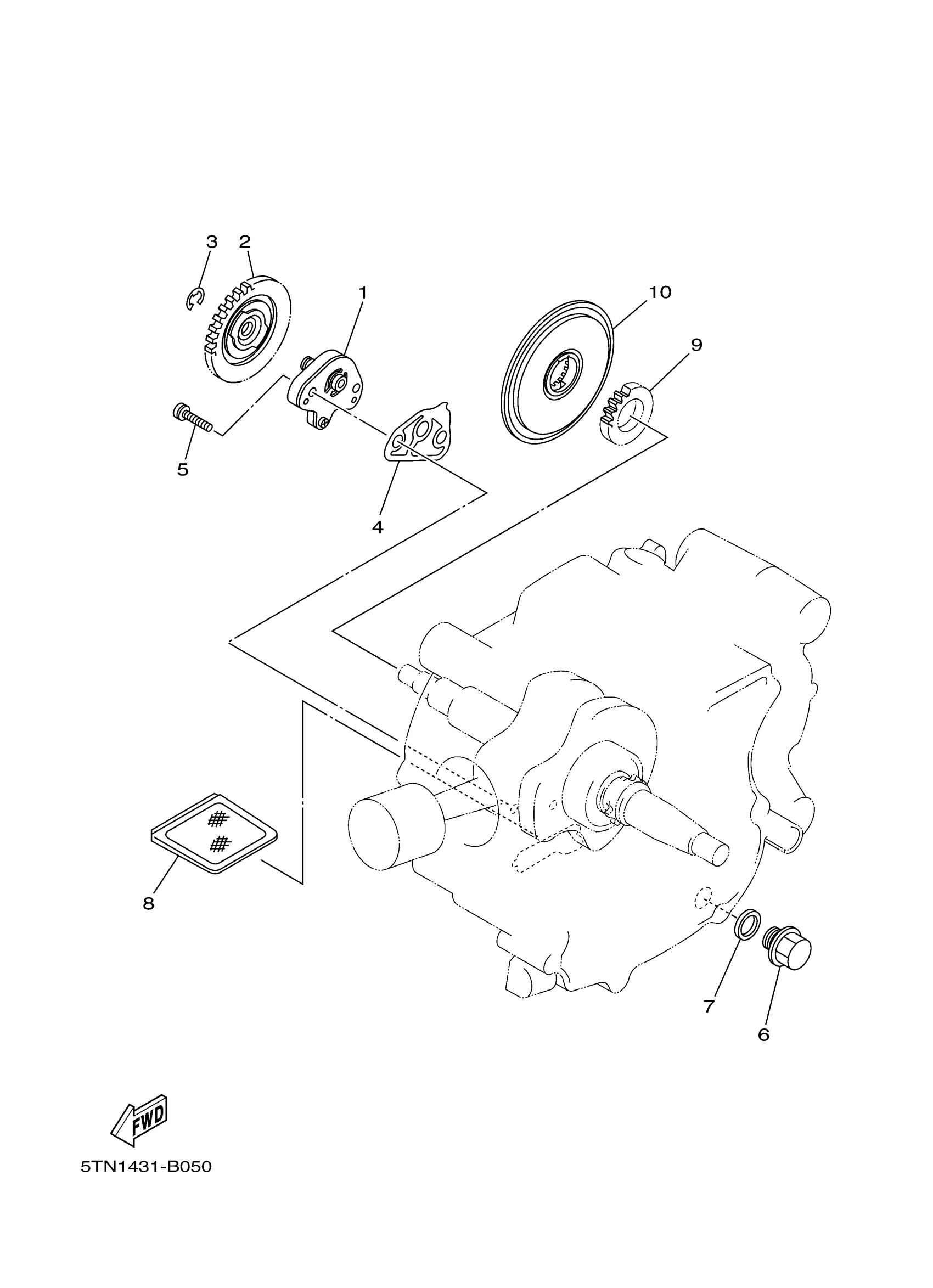

Yamaha TTR110ED (TTR110E) 5B6N 2013 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP SUB-ASSY.

5VT-E3104-00-00

Unavailable

2

GEAR, PUMP DRIVEN (JUPITER Z)

5TP-E3325-00-00

Unavailable

3

CIRCLIP(22K)

99080-05600-00

$5.75

4

GASKET, PUMP COVER

4S9-E3329-00-00

$1.61

5

SCREW, FLAT FILLISTER

90155-06007-00

$0.41

6

PLUG, STRAIGHT SCREW (5MX1)

90340-12808-00

$0.77

7

GASKET

812-11198-00-00

$6.03

8

STRAINER, OIL

4S9-E3411-00-00

Unavailable

9

GEAR, PUMP DRIVE (JUPITER-Z)

5TP-E3324-00-00

Unavailable

10

FILTER,ROTARY

5TP-E3451-00-00

Unavailable
