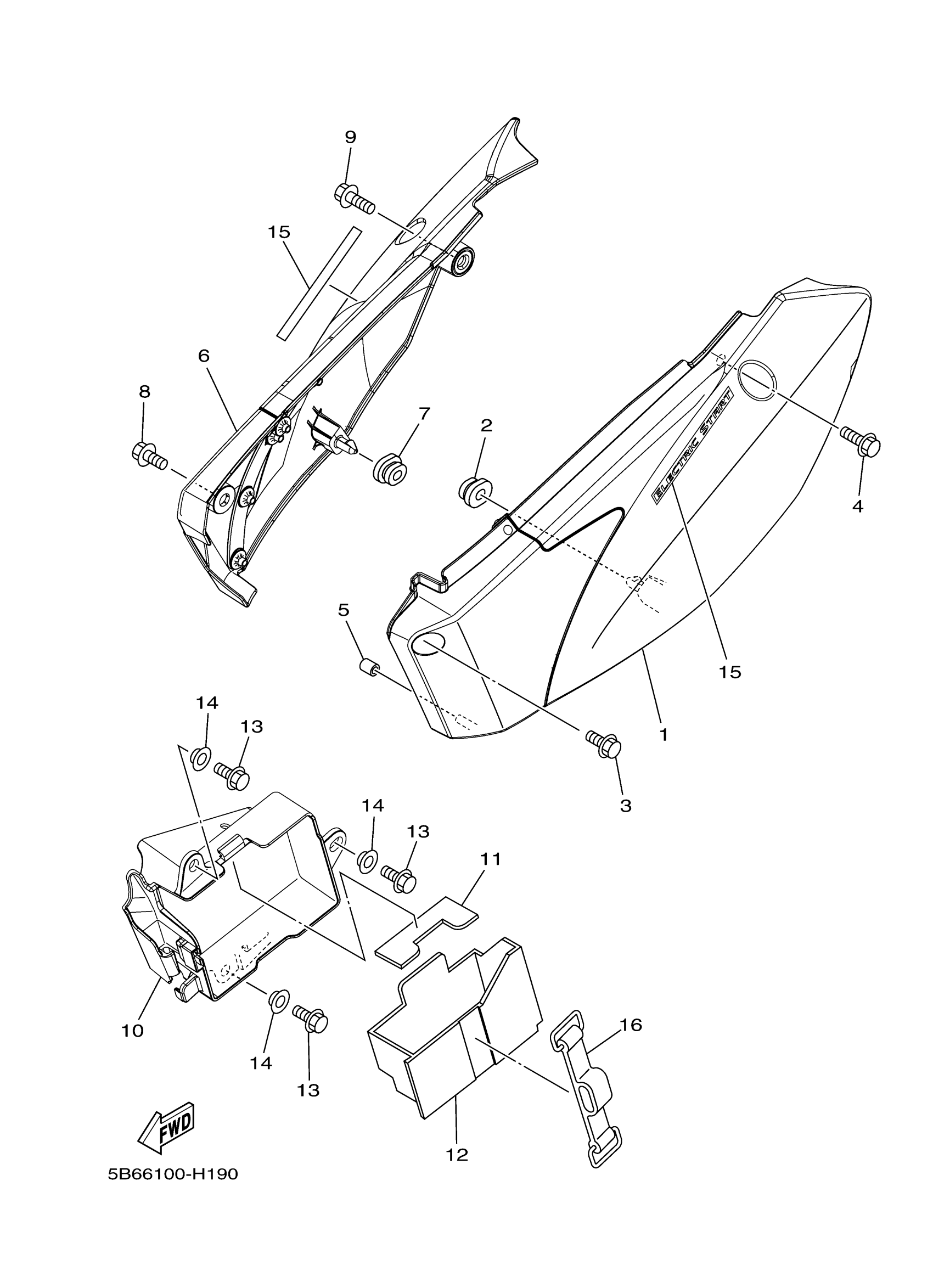

Yamaha TTR110EB (TTR110E) 5B6J 2012 SIDE COVER Diagram

#

Description
Price

1

SIDE COVER ASSY 1

5B6-21710-00-00

$83.99

2

GROMMET(4DN)

90480-01558-00

$4.19

3

BOLT, FLANGE

95817-06014-00

Unavailable

4

BOLT, FLANGE

95817-06016-00

$2.75

5

DAMPER, LOCATING 1

5B6-21778-00-00

$7.99

6

SIDE COVER ASSY 2

5B6-21720-00-00

$82.99

7

GROMMET(4DN)

90480-01558-00

$4.19

8

BOLT, FLANGE

95817-06014-00

Unavailable

9

BOLT, FLANGE

95817-06016-00

$2.75

10

BOX, BATTERY

5B6-2177G-01-00

$31.99

11

DAMPER

5HN-21746-00-00

$6.99

12

COVER

5HN-2172W-00-00

$19.99

13

BOLT, FLANGE

95817-06014-00

Unavailable

14

COLLAR (8G8)

90387-06681-00

$9.49

15

EMBLEM

5B6-21737-00-00

$10.99

16

BAND, BATTERY

34M-82131-00-00

Unavailable
