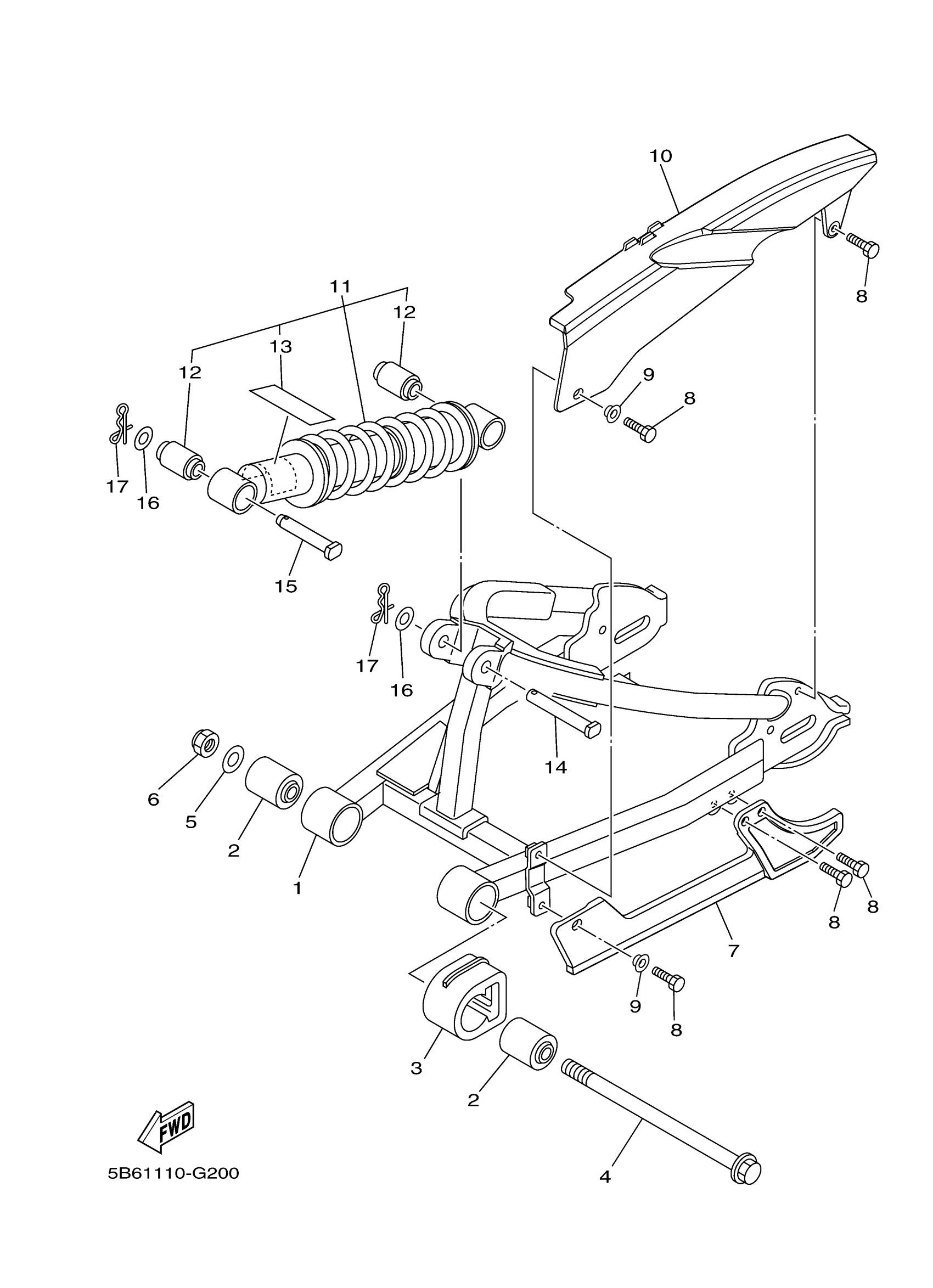

Yamaha TTR110EB (TTR110E) 5B6J 2012 REAR ARM SUSPENSION Diagram

#

Description
Price

1

REAR ARM COMP.

5B6-22110-00-00

$479.99

2

BUSH 1

5B6-22123-00-00

$42.99

3

SEAL, GUARD

5B6-22151-00-00

$13.49

4

BOLT, FLANGE

90105-12026-00

$15.99

5

WASHER, PLATE(55K)

90201-127J6-00

$8.49

6

NUT, U (4PM)

95617-12100-00

$4.16

7

SUPPORT, CHAIN

5B6-22199-01-00

$31.99

8

BOLT(4ML)

97027-05014-00

$2.17

9

COLLAR

90387-05021-00

$8.49

10

CASE CHAIN

5B6-22311-01-00

$27.99

11

SHOCK ABSORBER ASSY, REAR

B51-22210-00-00

Unavailable

12

BUSHING

3M7-22216-00-00

$23.99

13

LABEL, WARNING

4AA-22259-80-00

$13.49

14

PIN, CLEVIS (3R0)

90240-10072-00

$11.49

15

PIN, CLEVIS (3R0)

90240-10069-00

$11.49

16

WASHER, PLATE(56J)

90201-106H5-00

Unavailable

17

CLIP

90468-20196-00

Unavailable
