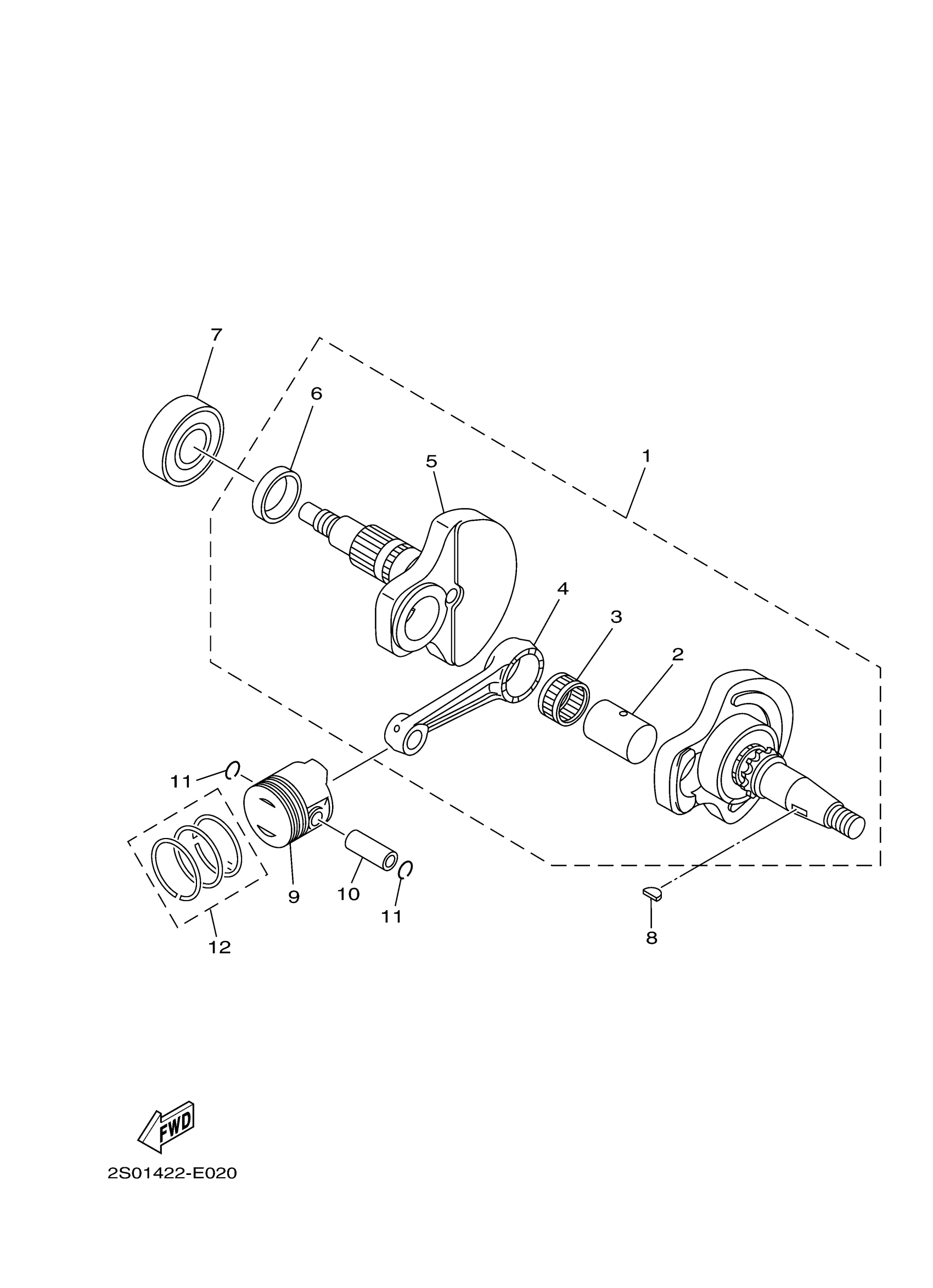

Yamaha TTR110EB (TTR110E) 5B6J 2012 CRANKSHAFT PISTON Diagram

CRANKSHAFT ASSY (2P23,3P91,17B

5TP-WE140-30-00

Unavailable

. PIN, CRANK 1

5LM-E1681-00-00

$16.39

BEARING

93310-526X0-00

Unavailable

. ROD, CONNECTING

5TN-E1651-02-00

$17.61

CRANK 2 (JUPITER Z)

5TP-E1422-00-00

Unavailable

. SPACER

5ER-E1445-00-00

$3.94

BEARING (T105,YA100)

93306-205YG-00

$29.83

KEY WOODRUFF 146115450000

90280-03017-00

$5.39

PISTON (STD) 3P91 (KT)

3S0-E1631-00-A0

$15.17

PISTON (0.50MM O/S) 3P91 (KT)

3S0-E1636-00-00

$16.23

PISTON (1.00MM O/S) 3P91 (KT)

3S0-E1638-00-00

Unavailable

PIN, PISTON (KT) (T105SE)

5LM-E1633-00-00

$3.15

CIRCLIP (22F)

93450-14088-00

$2.69

PISTON RING SET (STD) 3P91

5TP-E1603-20-00

$47.41

PISTON RING SET (0.50MM O/S)

5TP-E1605-00-00

$29.24

PISTON RING SET (1.00MM O/S)

5TP-E1607-00-00

Unavailable
