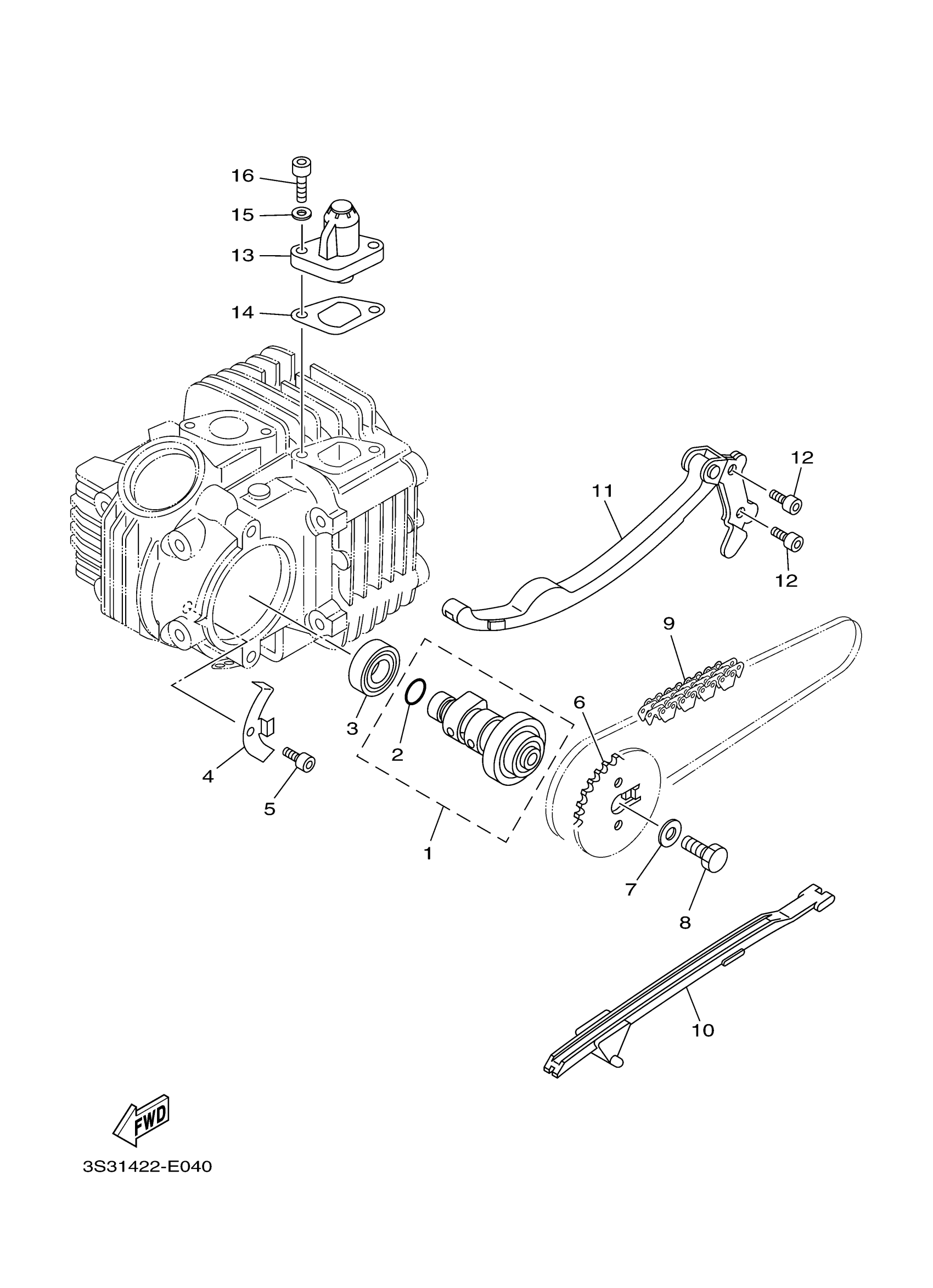

Yamaha TTR110EB (TTR110E) 5B6J 2012 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1 (JUPITER Z)

5TP-E2170-00-00

$56.94

2

O-RING (4G0)

93210-11453-00

$5.47

3

BEARING(4ES)

93306-00210-00

$21.00

4

PLATE (JUPITER-Z)

5TP-E111F-00-00

$1.54

5

BOLT,SOCKET

91317-06012-00

$5.75

6

SPROCKET, CAM CHAIN (30T)

5TN-E2176-00-00

Unavailable

7

WASHER (853)

90201-08326-00

$5.75

8

BOLT, HEXAGON (22F)

90101-08590-00

$2.08

9

CHAIN, CAMSHAFT (JUPITER-Z) SC

94568-B3086-00

$15.55

10

GUIDE, STOPPER 1

2P2-E2231-00-00

$12.43

11

GUIDE, STOPPER 2

2P2-E2241-00-00

$54.64

12

BOLT,SOCKET

91317-06016-00

$1.15

13

TENSIONER ASSY, CAM CHAIN

5TN-E2210-10-00

$105.09

14

GASKET, TENSIONER CASE (3P91)

3S0-E2213-00-00

$5.97

15

GASKET 256113960000

90430-06014-00

Unavailable

16

BOLT,SOCKET

91317-06018-00

Unavailable
