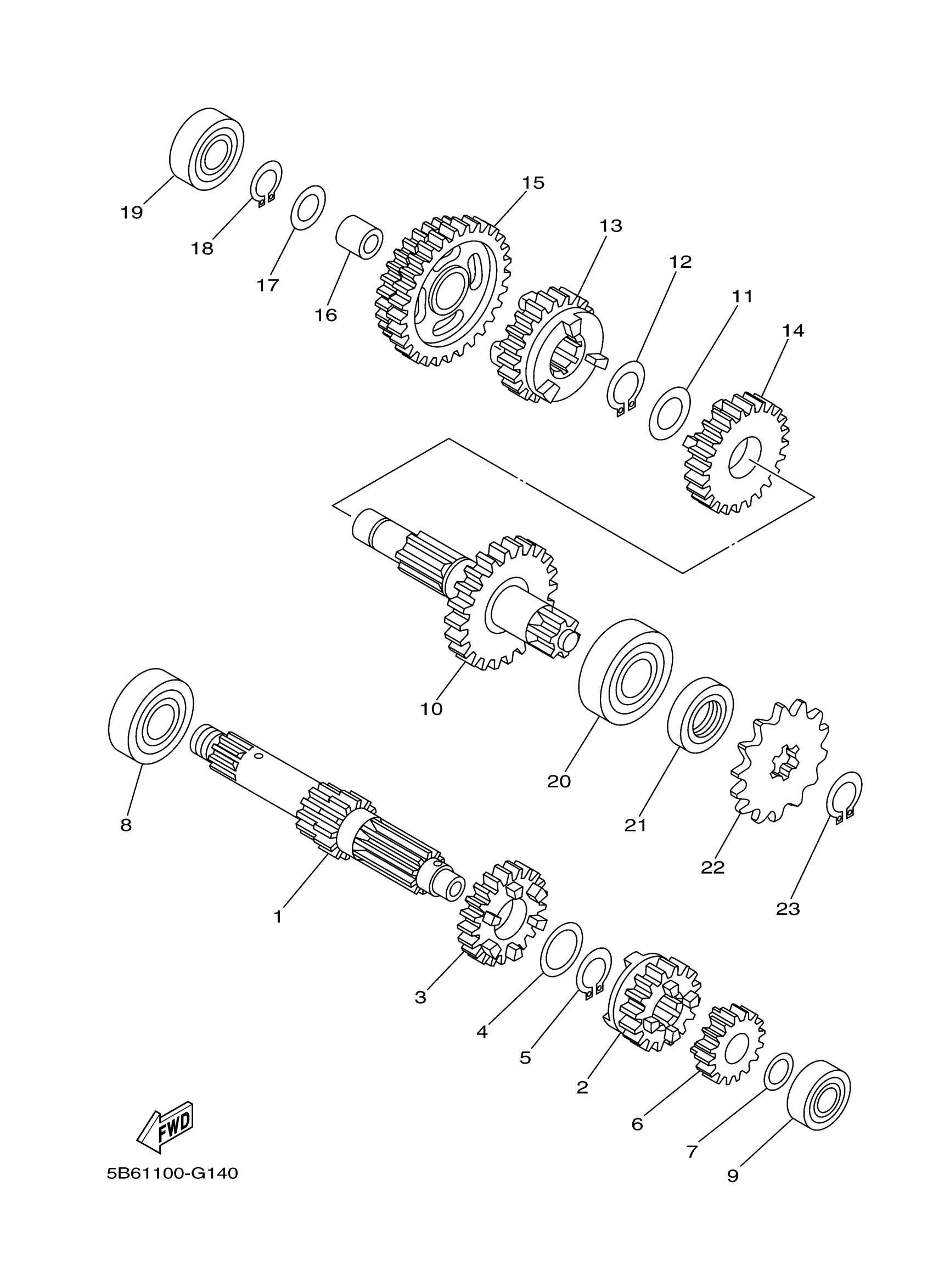

Yamaha TTR110EA (TTR110E) 5B6E 2011 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN (12T)

4S9-E7411-00-00

Unavailable

2

GEAR, 3RD PINION (21T)

5TP-E7131-00-00

$26.70

3

GEAR, 4TH PINION (JUPITER Z)

5TP-E7141-00-00

Unavailable

4

WASHER PLATE 132172160000

90201-20266-00

$7.66

5

CIRCLIP (525)

93410-20038-00

$2.44

6

GEAR, 2ND PINION (JUPITER Z)

5TP-E7121-00-00

Unavailable

7

WASHER PLATE 164185720000

90201-12166-00

$5.86

8

BEARING

93306-203YR-00

$35.18

9

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$23.71

10

DRIVE AXLE ASSY

5TP-E7402-00-00

Unavailable

11

WASHER PLATE 132172160000

90201-20266-00

$7.66

12

CIRCLIP (525)

93410-20038-00

$2.44

13

GEAR, 4TH WHEEL (JUPITER Z)

5TP-E7241-00-00

$19.04

14

GEAR, 3RD WHEEL (29T)

5TP-E7231-00-00

$22.09

15

GEAR, 1ST WHEEL (30T/38T)

5TP-E7211-00-00

$57.13

16

COLLAR

90387-1503D-00

$15.48

17

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

18

CIRCLIP(1AR)

99009-15400-00

Unavailable

19

BEARING

93306-20203-00

Unavailable

20

BEARING

93306-254Y1-00

Unavailable

21

OIL SEAL (T105) L

93102-20892-00

Unavailable

22

SPROCKET, DRIVE (5B61)

93812-14814-00

Unavailable

23

CIRCLIP (525)

93410-20038-00

$2.44
