2011 Yamaha TTR110E (TTR110EA) Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 2011 Yamaha TTR110E (TTR110EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

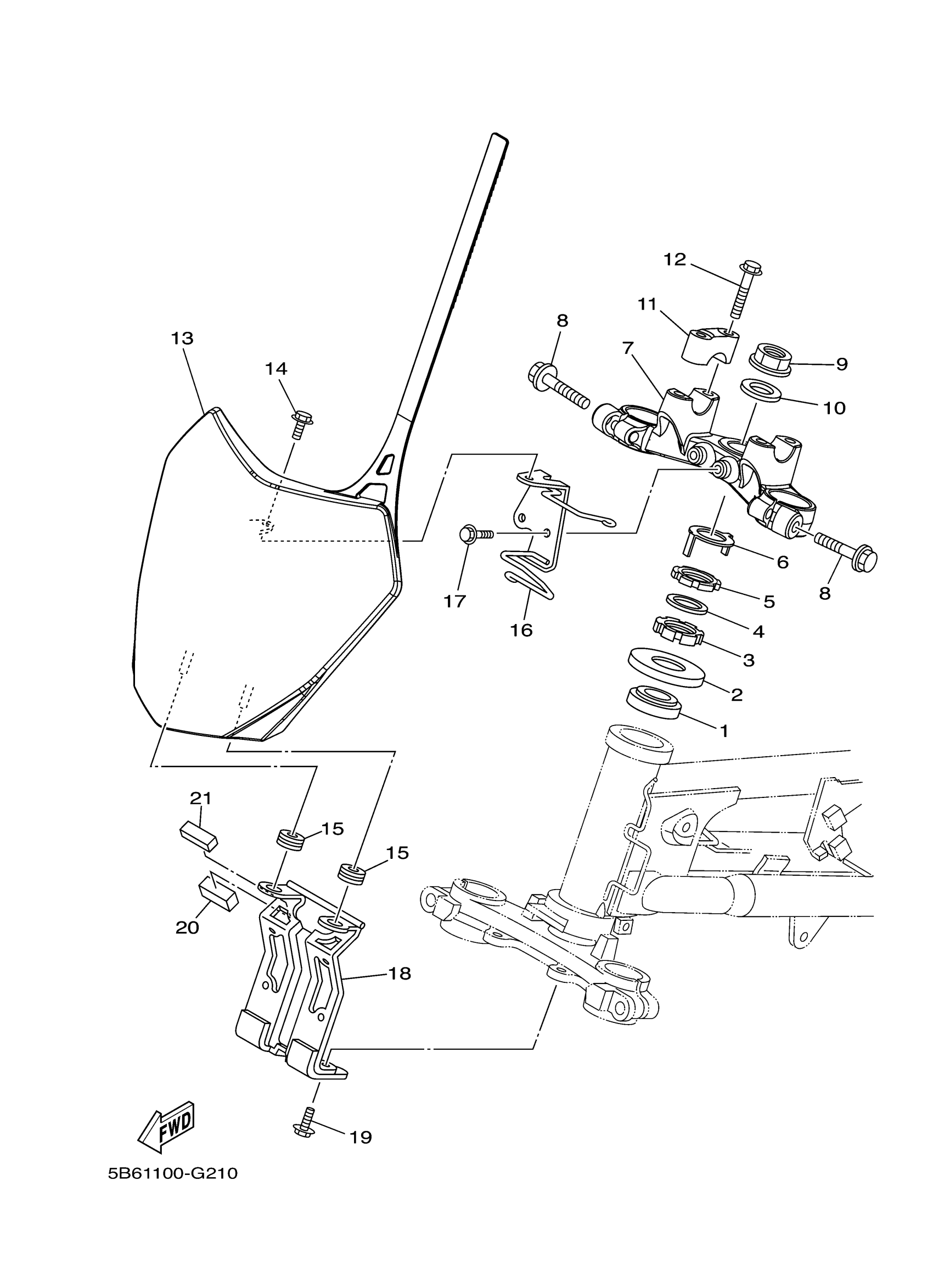

2011 Yamaha TTR110E (TTR110EA) Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BEARING

93399-99949-00

1

$50.02

In stock

2

COVER, BALL RACE 2

5HP-23416-00-00

—

$19.86

In stock

3

NUT

90179-25003-00

1

$16.78

In stock

4

WASHER, PLATE (26H)

90202-26142-00

1

$8.06

In stock

5

NUT(3XP)

90179-25615-00

1

$21.28

In stock

6

WASHER, SPECIAL

3YF-23418-00-00

—

$16.62

In stock

7

CROWN, HANDLE

5B6-23435-01-00

1

$180.98

In stock

8

BOLT, FLANGE

95022-08035-00

1

$3.49

In stock

9

NUT (26H)

90179-22412-00

1

$17.88

In stock

10

WASHER, PLATE

90201-22018-00

1

$4.11

In stock

11

HOLDER, HANDLE UPPER

1E6-23441-10-35

1

$20.51

In stock

12

BOLT, FLANGE

95022-08035-00

1

$3.49

In stock

13

PLATE, NUMBER

5B6-23485-00-00

1

$35.63

In stock

14

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

15

GROMMET(80K)

90480-13428-00

1

$5.10

In stock

16

STAY

5B6-2317E-00-00

—

$65.55

In stock

17

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

18

STAY, PLATE

5B6-23486-00-00

—

$109.09

In stock

19

BOLT, FLANGE

95817-06012-00

1

$1.49

In stock

20

DAMPER

5B6-23445-00-00

—

$3.29

In stock

21

DAMPER

5B6-23455-00-00

—

$4.77

In stock
← Rear Wheel Steering Handle Cable →
