2011 Yamaha TTR110E (TTR110EA) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2011 Yamaha TTR110E (TTR110EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

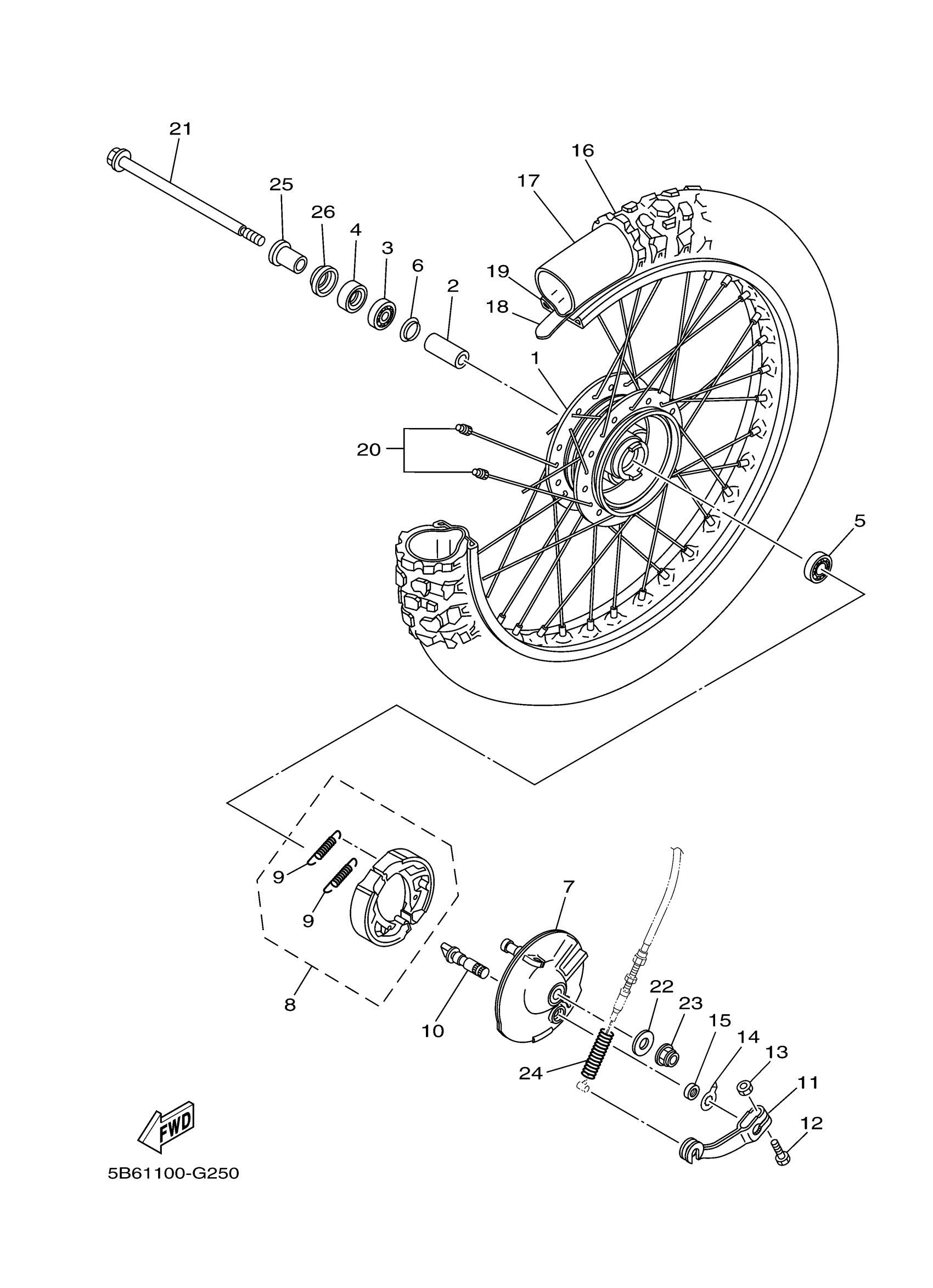

2011 Yamaha TTR110E (TTR110EA) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

451-25111-00-35

1

$144.13

In stock

2

SPACER 451251170000

90560-10103-00

1

$15.43

In stock

3

BEARING

93306-20004-00

—

$16.62

In stock

4

OIL SEAL (17X30X8.5-451)

93106-17006-00

1

$9.89

In stock

5

BEARING (3R0)

93306-20009-00

1

$38.79

In stock

6

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

7

PLATE, BRAKE SHOE

5B6-25121-00-35

—

$90.37

In stock

8

BRAKE SHOE KIT

5B6-W253A-00-00

1

$18.21

In stock

9

1

$7.51

In stock

10

CAMSHAFT

5B6-25151-00-00

—

$41.42

In stock

11

LEVER, CAM SHAFT

451-25155-00-00

—

$32.20

In stock

12

BOLT, HEXAGON (462)

90101-06291-00

1

$6.68

In stock

13

NUT(6TA)

95317-06600-00

1

$2.69

In stock

14

INDICATOR

3L8-2513A-00-00

1

$6.38

In stock

15

OIL SEAL

93104-10001-00

1

$4.69

In stock

16

TIRE

94125-141A6-00

1

$44.54

In stock

17

TUBE (3L8)

94220-14143-00

—

$31.31

In stock

18

BAND, RIM (1K8)

94327-14076-00

—

$7.42

In stock

19

RIM

94414-14227-00

—

$117.87

In stock

20

SPOKE SET, FRONT

3R0-25104-00-00

—

$36.51

In stock

21

AXLE, WHEEL

5B6-25181-00-00

—

$12.45

In stock

22

—

$3.00

In stock

23

NUT, S/L FLANGE

95602-10200-00

—

$2.29

In stock

24

SPRING, COMPRESSION(52H)

90501-123A0-00

—

$2.77

In stock

25

COLLAR (3R0)

90387-10744-00

—

$15.09

In stock

26

COVER, HUB DUST

451-25118-00-00

—

$15.83

In stock
