2011 Yamaha TTR110E (TTR110EA) Starter Diagram

← All diagrams

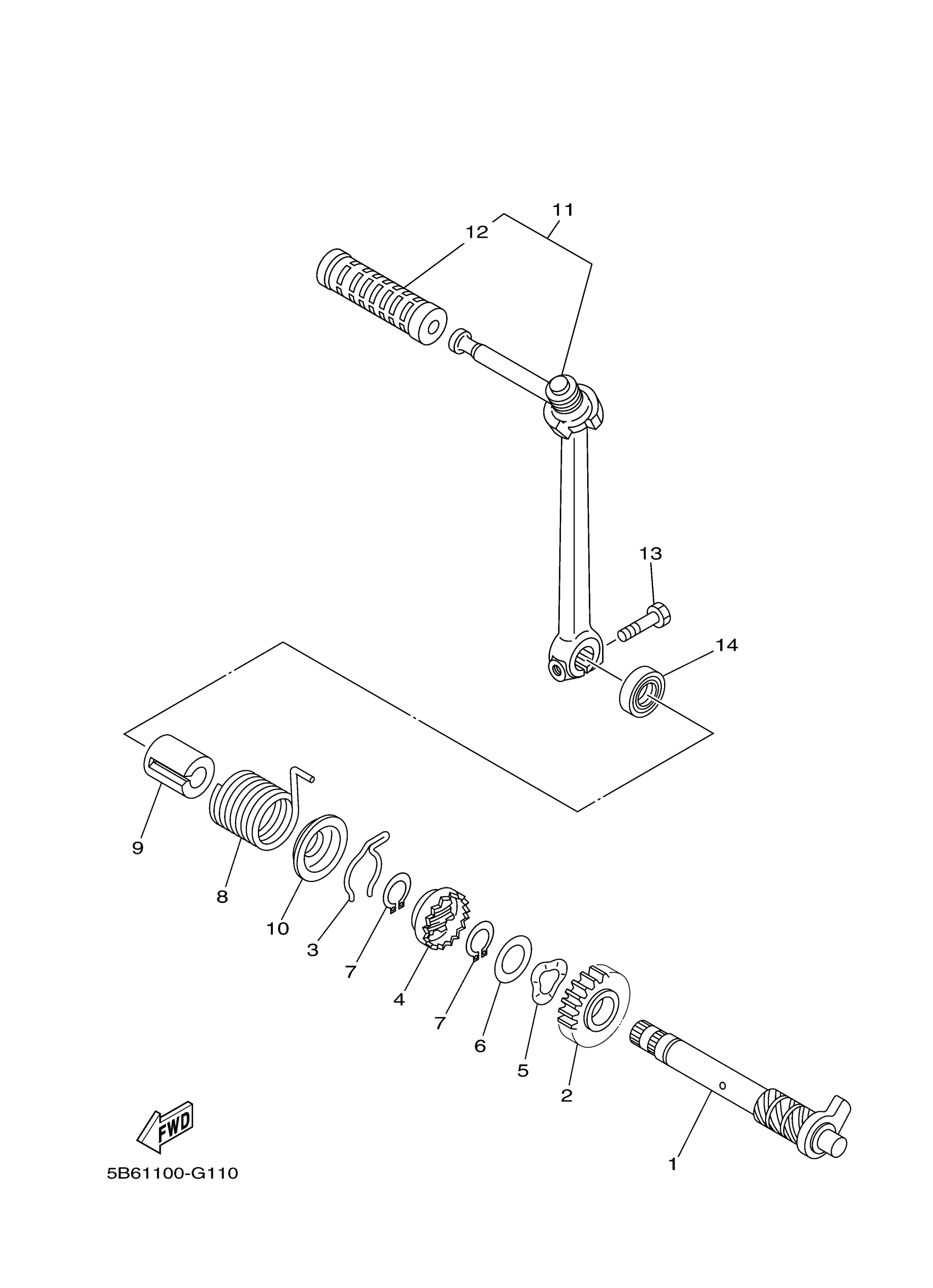

Find the part on the Starter diagram for your 2011 Yamaha TTR110E (TTR110EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Yamaha TTR110E (TTR110EA) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK AXLE ASSY (JUPITER-Z)

5TP-E5660-00-00

1

$25.65

In stock

2

GEAR, KICK

5LM-E5641-00-00

1

$13.46

In stock

3

CLIP(4ES)

90468-23194-00

1

$7.91

In stock

4

WHEEL, RATCHET

296-15671-00-00

—

$47.12

In stock

5

WASHER WAVE 296156430000

90206-19027-00

1

$5.78

In stock

6

SHIM

296-15644-00-00

1

$5.43

In stock

7

CIRCLIP(1EY)

99009-19400-00

1

$6.17

In stock

8

SPRING, TORSION

90508-26016-00

1

$4.52

In stock

9

GUIDE, SPRING (3P91)

3S0-E5664-00-00

1

$1.11

In stock

10

GUIDE, SPRING (T105LM)

5LM-E5664-00-00

1

$0.55

In stock

11

KICK CRANK ASSY

5B6-15620-00-00

—

$118.35

In stock

12

COVER, KICK LEVER

156-15618-01-00

1

$6.43

In stock

13

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

14

OIL SEAL (T105) L

93102-15890-00

1

$4.32

In stock
