2011 Yamaha TTR110E (TTR110EA) Electrical 1 Diagram

← All diagrams

Find the part on the Electrical 1 diagram for your 2011 Yamaha TTR110E (TTR110EA), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

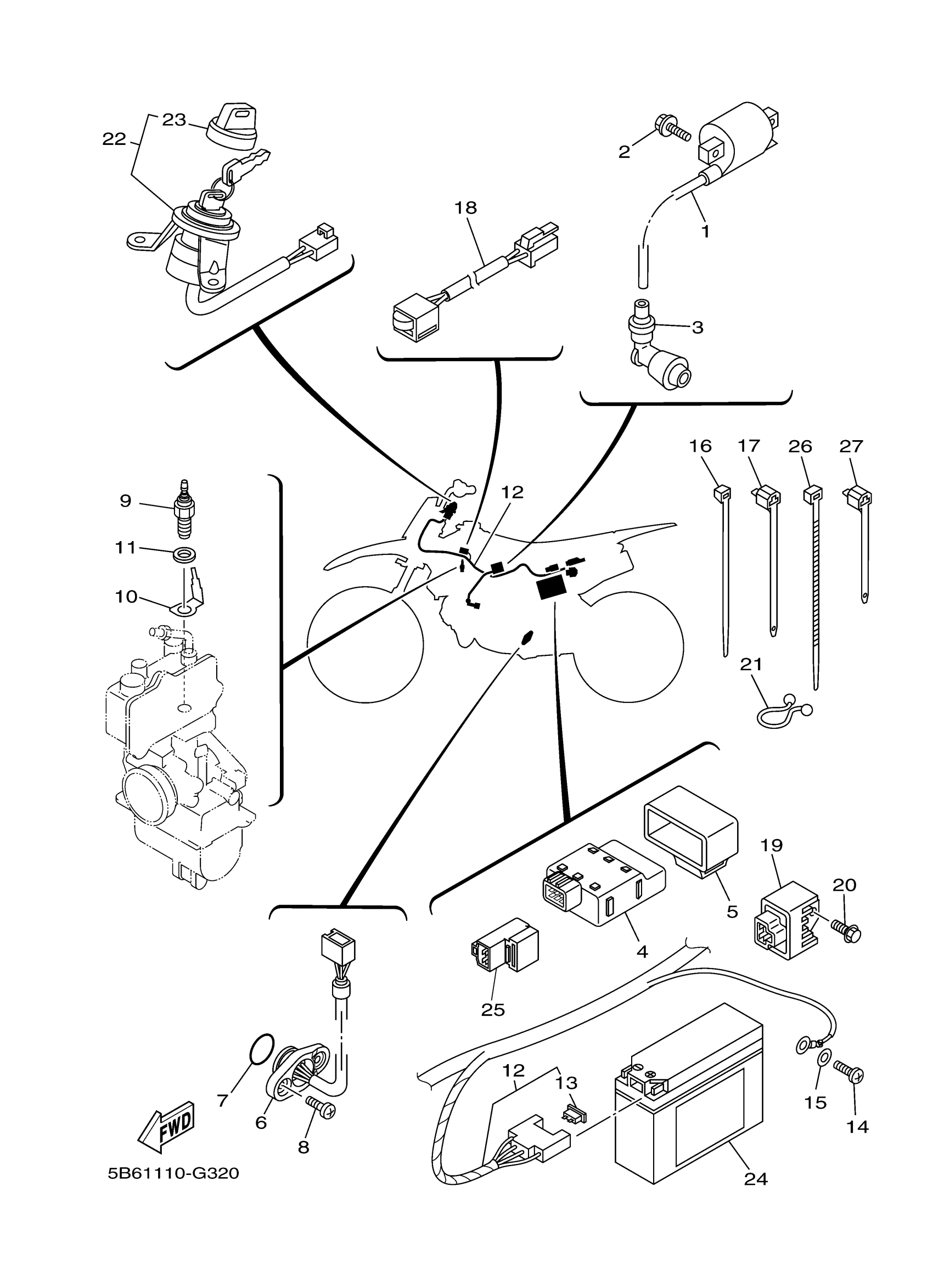

2011 Yamaha TTR110E (TTR110EA) Electrical 1 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

IGNITION COIL ASSY

3KJ-82310-13-00

1
Out of stock

2

BOLT, FLANGE

95022-06016-00

1

$3.32

In stock

3

PLUG CAP ASSY

4BP-82370-01-00

1

$30.96

In stock

4

C.D.I. UNIT ASSY

5B6-85540-01-00

1
Out of stock

5

BAND

3MB-85546-00-00

—

$6.37

In stock

6

NEUTRAL SWITCH ASSY

3S0-H2540-00-00

1

$19.14

In stock

7

O-RING (25G)

93210-20573-00

1
Out of stock

8

SCREW, PAN HEAD(3LA)

98517-05010-00

1

$3.52

In stock

9

HEATER ASSY

5FU-83790-20-00

1

$42.63

In stock

10

TERMINAL 1

5FU-82103-00-00

1
Out of stock

11

WASHER, PLATE

90201-08016-00

1

$6.25

In stock

12

WIRE HARNESS ASSY

5B6-82590-01-00

1

$184.66

In stock

13

FUSE (10A)

42X-82151-00-00

1

$2.16

In stock

14

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

BAND

1UA-82591-00-00

—
Out of stock

17

BAND, SWITCH CORD

437-83936-11-00

—

$3.20

In stock

18

THERMO SWITCH ASSY

5FU-82560-50-00

—
Out of stock

19

RECTIFIER & REGULATOR ASSY

3LA-81960-01-00

—

$192.72

In stock

20

BOLT, FLANGE

95022-06012-00

—

$3.00

In stock

21

CLAMP (3Y2)

90464-16039-00

—
Out of stock

22

MAIN SWITCH ASSY

5B6-82510-01-00

—

$78.58

In stock

23

CAP, KEY

3HN-82579-00-00

—

$12.27

In stock

24

GT4B5 GS BATTERY - FA

GT4-B5000-00-00

1

$85.76

In stock

25

RELAY ASSY (29U-93)

29U-81950-93-00

—

$67.77

In stock

26

BAND

1UA-82591-00-00

—
Out of stock

27

CLAMP(6E8)

90465-13M39-00

—

$4.66

In stock
