Description

Price

1

COVER, CRANKCASE 1 (5B61)

5B6-E5411-00-00

$360.99

2

GASKET, CRANKCASECOVER 1 (2P22

3S0-E5451-00-00

$7.99

3

PIN, DOWEL

91810-14809-00

$2.72

4

BOLT, FLANGE

95022-06040-00

$3.45

5

BOLT, FLANGE

95022-06050-00

$3.23

6

BOLT, FLANGE

95022-06080-00

$4.24

7

PLUG, STRAIGHT SCREW

90340-14812-00

$9.49

8

O-RING (2H9)

93210-14369-00

$7.49

9

PLUG, STRAIGHT SCREW

90340-32806-00

$9.49

10

O-RING (341)

93210-32172-00

$7.49

11

PLATE

5TP-E5113-00-00

Unavailable

12

COVER, CHAIN CASE

5B6-15418-00-00

Unavailable

13

BOLT, FLANGE

95022-06025-00

$3.62

14

COVER, CRANKCASE 2 (5B61)

5B6-E5421-00-00

$118.99

15

GASKET, CRANKCASE COVER 2 (JUP

4ST-E5461-11-00

$9.99

16

PIN, DOWEL

91810-14809-00

$2.72

17

BOLT, FLANGE

95022-06040-00

$3.45

18

BOLT, FLANGE

95022-06050-00

$3.23

19

PLUG, OIL LEVEL (5B61)

5B6-E5362-00-00

Unavailable

20

O-RING (5Y1)

93210-19522-00

Unavailable

21

OIL SEAL(2FJ)

93101-10142-00

Unavailable

22

COVER, STARTING MOTOR (5B61)

5B6-E5436-00-00

Unavailable

23

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable

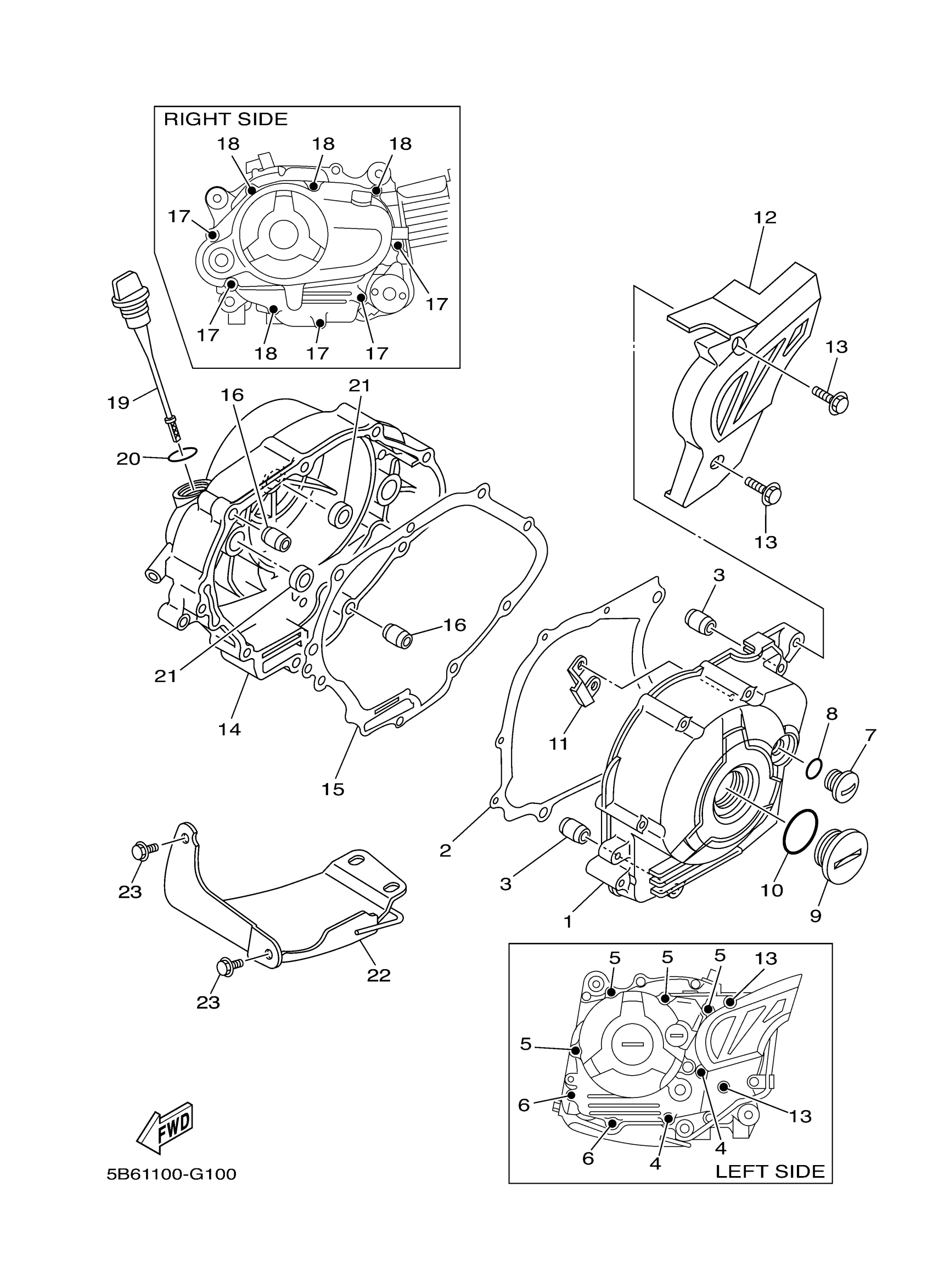

Yamaha TTR110EA (TTR110E) 5B6E 2011 CRANKCASE COVER 1 Diagram

COVER, CRANKCASE 1 (5B61)

GASKET, CRANKCASECOVER 1 (2P22

PIN, DOWEL

BOLT, FLANGE

BOLT, FLANGE

BOLT, FLANGE

PLUG, STRAIGHT SCREW

O-RING (2H9)

PLUG, STRAIGHT SCREW

O-RING (341)

PLATE

COVER, CHAIN CASE

BOLT, FLANGE

COVER, CRANKCASE 2 (5B61)

GASKET, CRANKCASE COVER 2 (JUP

PIN, DOWEL

BOLT, FLANGE

BOLT, FLANGE

PLUG, OIL LEVEL (5B61)

O-RING (5Y1)

OIL SEAL(2FJ)

COVER, STARTING MOTOR (5B61)

BOLT, FLANGE(JN5)
