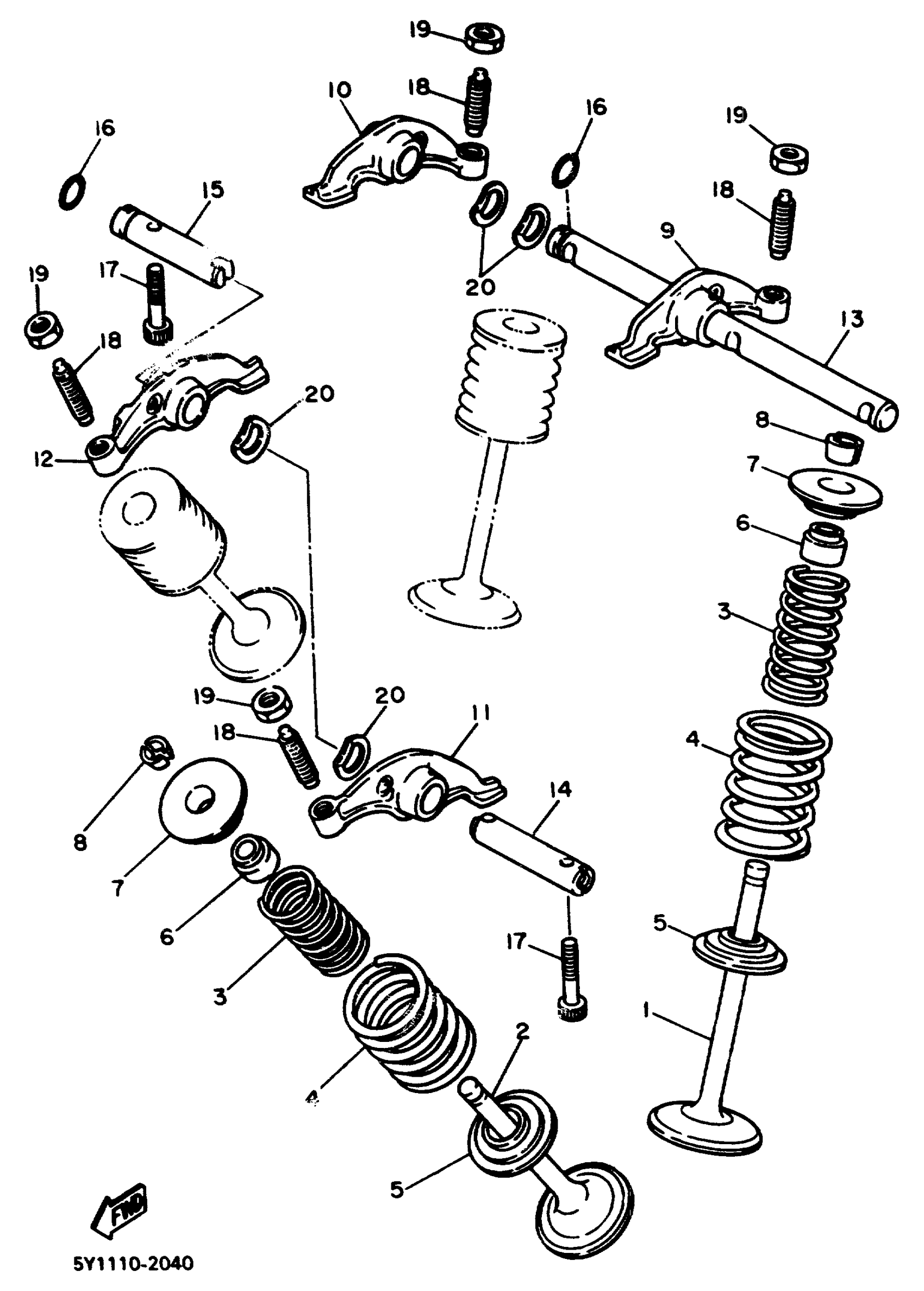

Yamaha TT600S (TT600) 1986 VALVE Diagram

#

Description
Price

1

VALVE, INTAKE

5Y1-12111-00-00

Unavailable

2

VALVE, EXHAUST

34K-12121-00-00

Unavailable

3

SPRING, VALVE INNER

5Y1-12113-00-00

Unavailable

4

SPRING, VALVE OUTER

5Y1-12114-00-00

$12.99

5

SEAT, VALVE SPRING

4H7-12116-00-00

Unavailable

6

SEAL, VALVE STEM OIL

1J7-12119-01-00

$20.99

7

RETAINER, VALVE SPRING

2F3-12117-00-00

Unavailable

8

LOCK, VALVE SPRING

1J7-12118-00-00

$7.99

9

ARM, VALVE ROCKER

34K-12151-00-00

Unavailable

10

ARM, VALVE ROCKER 2

34K-12161-00-00

Unavailable

11

ARM,VALVE ROCKER 3

34K-12162-00-00

Unavailable

12

ARM, VALVE ROCKER 4

34K-12163-00-00

Unavailable

13

SHAFT, ROCKER

2NX-12146-00-00

Unavailable

14

SHAFT, ROCKER

5Y1-12156-00-00

Unavailable

15

SHAFT, ROCKER 3

5Y1-12166-00-00

Unavailable

16

O-RING (5Y1)

93210-08521-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

18

SCREW, VALVE ADJUSTING

2NX-12159-00-00

Unavailable

19

NUT HEXAGON 371121580000

90170-06128-00

Unavailable

20

WASHER, WAVE (17W)

90206-12074-00

Unavailable
