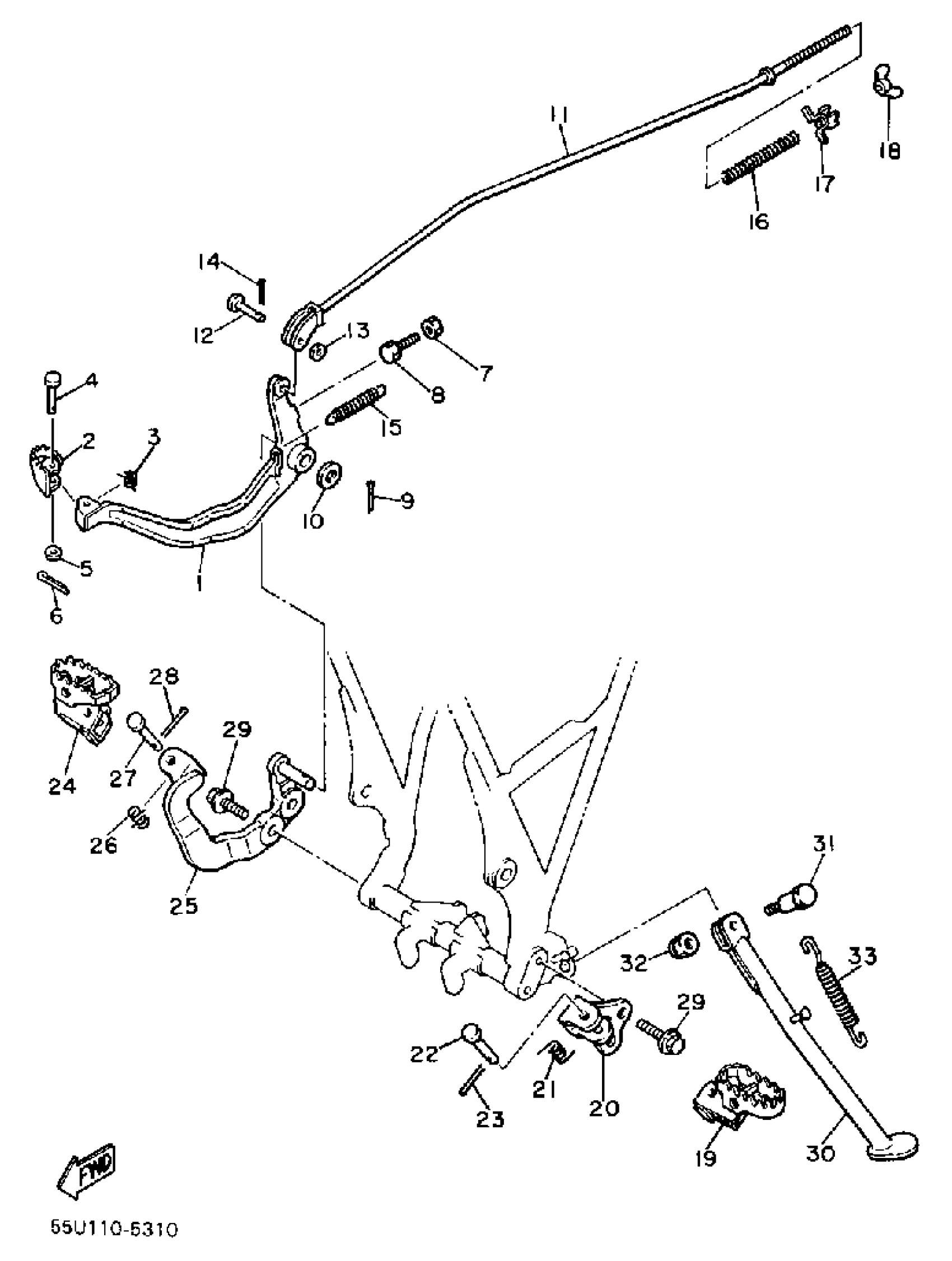

Yamaha TT600S (TT600) 1986 STAND-FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

36A-27211-01-90

Unavailable

2

PEDAL, BRAKE

3R8-27242-00-00

Unavailable

3

SPRING, TORSION

90508-14429-00

Unavailable

4

PIN, CLEVIS

91702-06028-00

$7.49

5

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

6

PIN, COTTER

91490-20025-00

$1.99

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

NUT, HEXAGON

95380-06600-00

Unavailable

9

PIN COTTER

91490-30025-00

$3.99

10

WASHER, PLAIN (434)

90201-14411-00

$8.49

11

ROD, BRAKE

34K-27231-00-00

Unavailable

12

PIN, CLEVIS (24X)

90240-06103-00

$7.49

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

PIN, COTTER

91490-20025-00

$1.99

15

SPRING, TENSION (23X)

90506-18305-00

$10.49

16

SPRING, (180-27236-00)

90501-10245-00

Unavailable

17

SEAT, SPRING

1W2-27239-00-00

Unavailable

18

NUT (25K)

90179-06411-00

Unavailable

19

FOOTREST 1

23X-27411-03-00

Unavailable

20

BRACKET, FOOTREST 1

34K-27412-00-R4

Unavailable

21

SPRING, TORSION (23X)

90508-20583-00

Unavailable

22

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

FOOTREST 2

34K-27421-00-00

Unavailable

25

BRACKET, FOOTREST 2

34K-27422-00-R4

Unavailable

26

SPRING, TORSION (23X)

90508-20583-00

Unavailable

27

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

28

PIN, COTTER

91490-25020-00

Unavailable

29

BOLT, FLANGE(3GD)

95817-10025-00

Unavailable

30

STAND, SIDE

55U-27311-00-R4

Unavailable

31

BOLT, WASHER BASED

90105-12616-00

Unavailable

32

NUT, SELF LOCKING (23X)

90185-12119-00

Unavailable

33

SPRING (434)

90507-29008-00

Unavailable
