1986 Yamaha TT600 (TT600S) Shift Shaft Diagram

← All diagrams

Find the part on the Shift Shaft diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

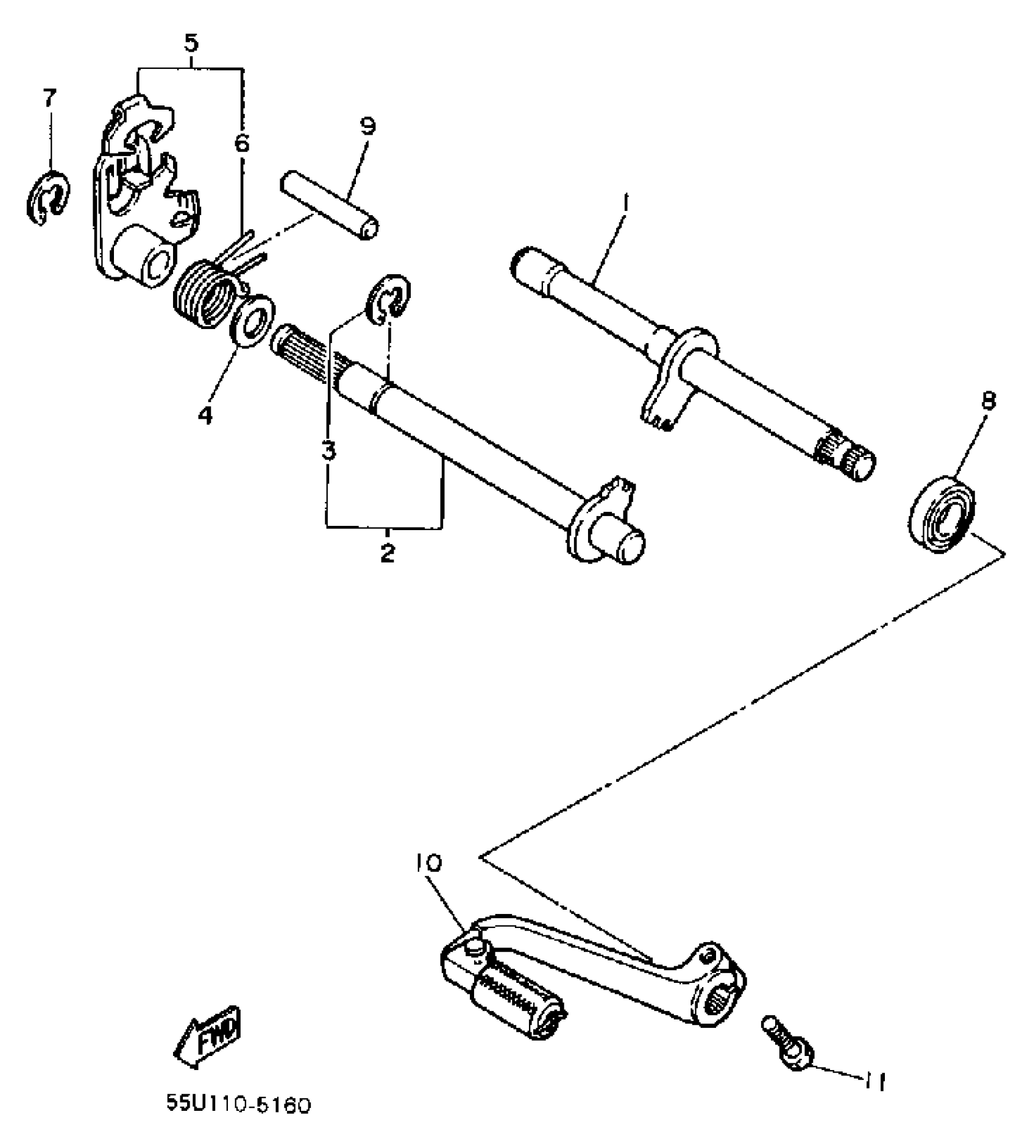

1986 Yamaha TT600 (TT600S) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT SHAFT ASSY 2

43F-18102-02-00

—

$25.02

In stock

2

SHIFT SHAFT ASSEMBLY

5Y1-18101-02-00

1
Out of stock

3

CIRCLIP

99006-10600-00

1

$6.91

In stock

4

WASHER PLATE 102181410000

90201-12474-00

1
Out of stock

5

SHIFT LEVER ASSY

34K-18120-01-00

1
Out of stock

6

. SPRING, TORSION

90508-29629-00

1
Out of stock

7

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

8

SEAL, OIL (30X)

93102-12321-00

1

$10.14

In stock

9

PIN, DOWEL

93608-33046-00

1
Out of stock

10

SHIFT PEDAL ASSEMBLY

34K-18110-02-00

1
Out of stock

11

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock
