1986 Yamaha TT600 (TT600S) Shift CAM-Fork Diagram

← All diagrams

Find the part on the Shift CAM-Fork diagram for your 1986 Yamaha TT600 (TT600S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

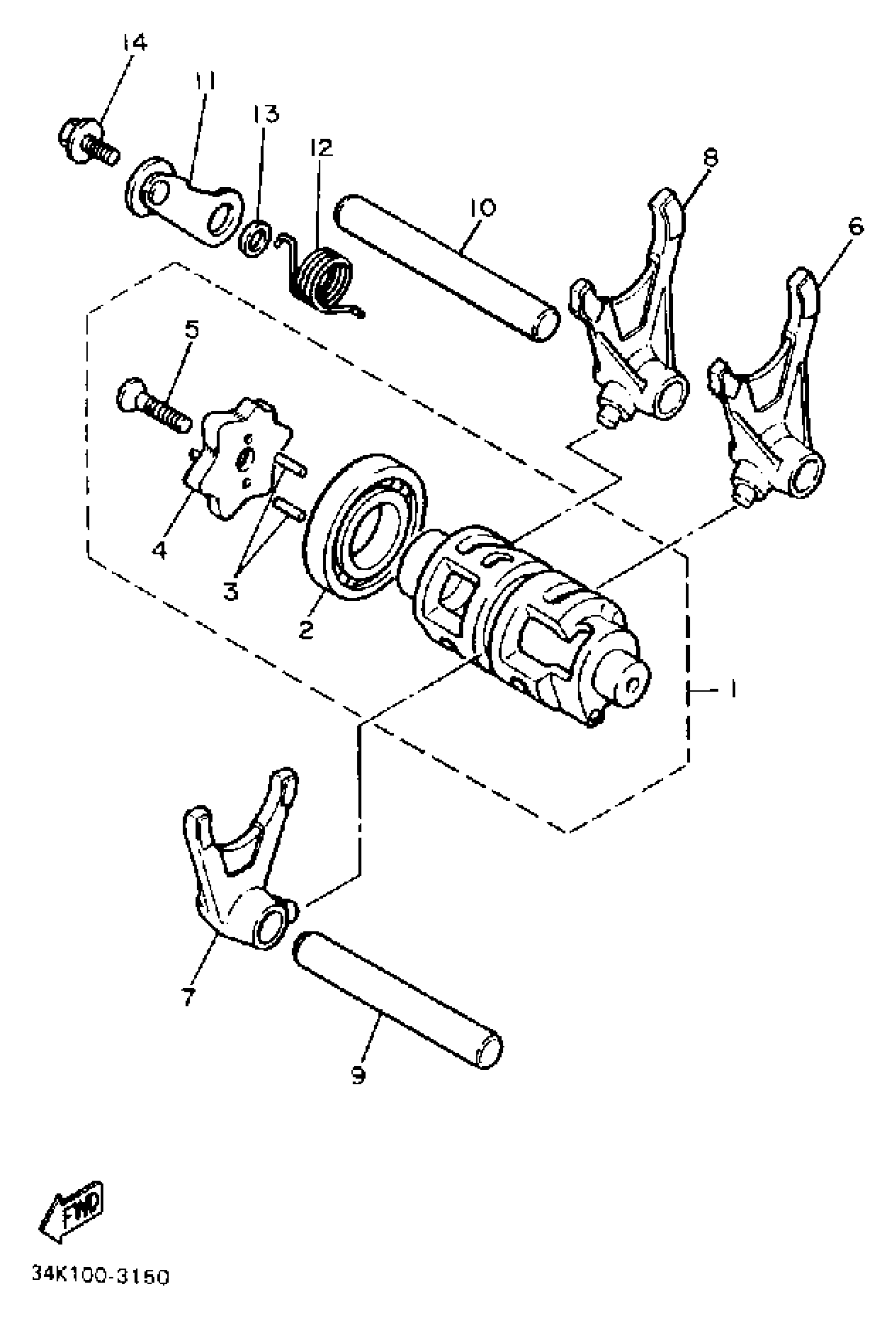

1986 Yamaha TT600 (TT600S) Shift CAM-Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSEMBLY

3YF-18540-00-00

1
Out of stock

2

BRG. (256)

93316-00501-00

1

$29.42

In stock

3

PIN,DOWEL (603)

93604-10011-00

1

$5.10

In stock

4

. SEGMENT

5Y1-18185-00-00

1
Out of stock

5

. SCREW, COUNTERSUNK

90151-06017-00

1
Out of stock

6

FORK, SHIFT 1

4PT-18511-00-00

—
Out of stock

7

FORK, SHIFT 2

4PT-18512-00-00

1
Out of stock

8

FORK, SHIFT 3

4PT-18513-00-00

—

$40.02

In stock

9

BAR, SHIFT FORK GUIDE 1

3YF-18531-00-00

—

$14.02

In stock

10

BAR, SHIFT FORK GUIDE 2

3XV-18535-00-00

1
Out of stock

11

STOPPER LEVER ASSEMBLY

5Y1-18140-00-00

1
Out of stock

12

SPRING, TORSION

90508-29527-00

1
Out of stock

13

COLLAR (5Y1)

90387-063F7-00

1

$6.71

In stock

14

SCREW, WITH WASHER (34K)

90159-06078-00

1
Out of stock
← Clutch Shift Shaft →
