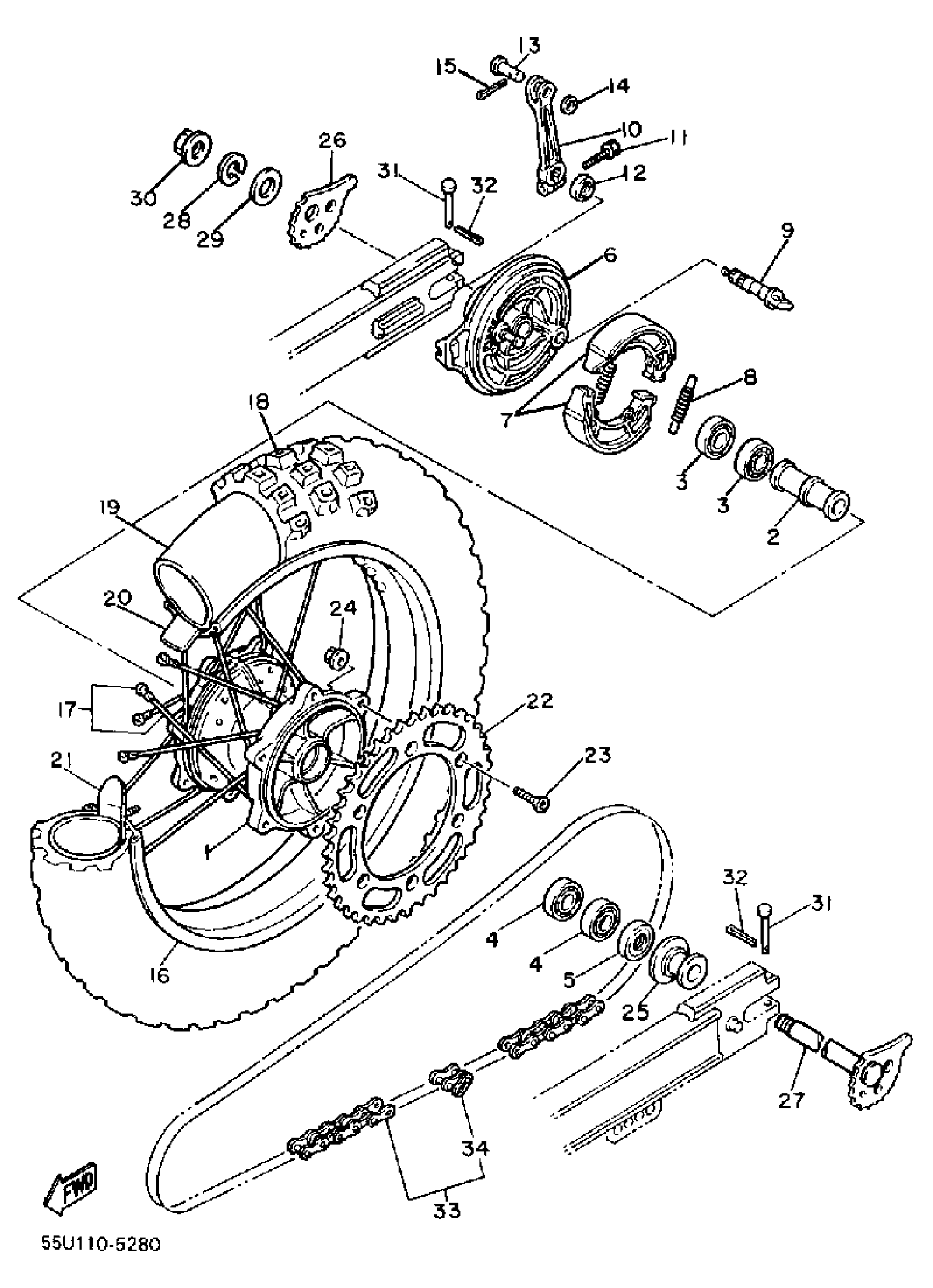

Yamaha TT600S (TT600) 1986 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

56A-25311-00-98

Unavailable

2

SPACER

90560-20226-00

Unavailable

3

BEARING(8AB)

93306-00444-00

$41.99

4

BEARING(3BN)

93306-00438-00

$37.99

5

OIL SEAL(39X)

93106-28023-00

$12.49

6

PLATE, BRAKE SHOE

26A-25321-00-98

Unavailable

7

BRAKE SHOE SET-2PCS

437-W2536-00-00

Unavailable

8

SPRING (5T9)

90506-17328-00

Unavailable

9

CAMSHAFT

26A-25351-00-00

Unavailable

10

LEVER, CAMSHAFT

34L-25355-00-00

Unavailable

11

BOLT, HEXAGON (462)

90101-06291-00

$8.49

12

SEAL, CAM SHAFT

148-25359-00-00

$4.78

13

PIN, CLEVIS

1W2-27237-00-00

Unavailable

14

WASHER, PLATE (583)

90201-12631-00

$9.49

15

PIN, COTTER(6L5)

91490-25030-00

$3.77

16

RIM 2.50

94425-18409-00

Unavailable

17

SPOKE SET, REAR

56A-25304-00-00

Unavailable

18

140/90-18 M2A TT

94114-186G1-00

Unavailable

19

TUBE

94245-18125-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

SPACER, BEAD

2X5-25394-00-00

Unavailable

22

SPROCKET, DRIVEN

26A-25450-51-00

Unavailable

23

BOLT(1TJ)

90109-081G2-00

Unavailable

24

NUT, SELF-LOCKING

90185-08169-00

Unavailable

25

COLLAR, WHEEL

26A-25383-00-00

Unavailable

26

PULLER, CHAIN 1

4V5-25388-01-00

Unavailable

27

AXLE, WHEEL

26A-25381-01-00

Unavailable

28

WASHER(N15)

92907-18100-00

Unavailable

29

WASHER(3JP)

92903-20600-00

Unavailable

30

NUT

90179-18332-00

Unavailable

31

PIN, CLEVIS

91701-05045-00

Unavailable

32

PIN, COTTER

91490-16020-00

Unavailable

33

CHAIN (25Y)

94581-08112-00

Unavailable

34

. JOINT, CHAIN (34L) (DID50HDS)

94680-50011-00

Unavailable
