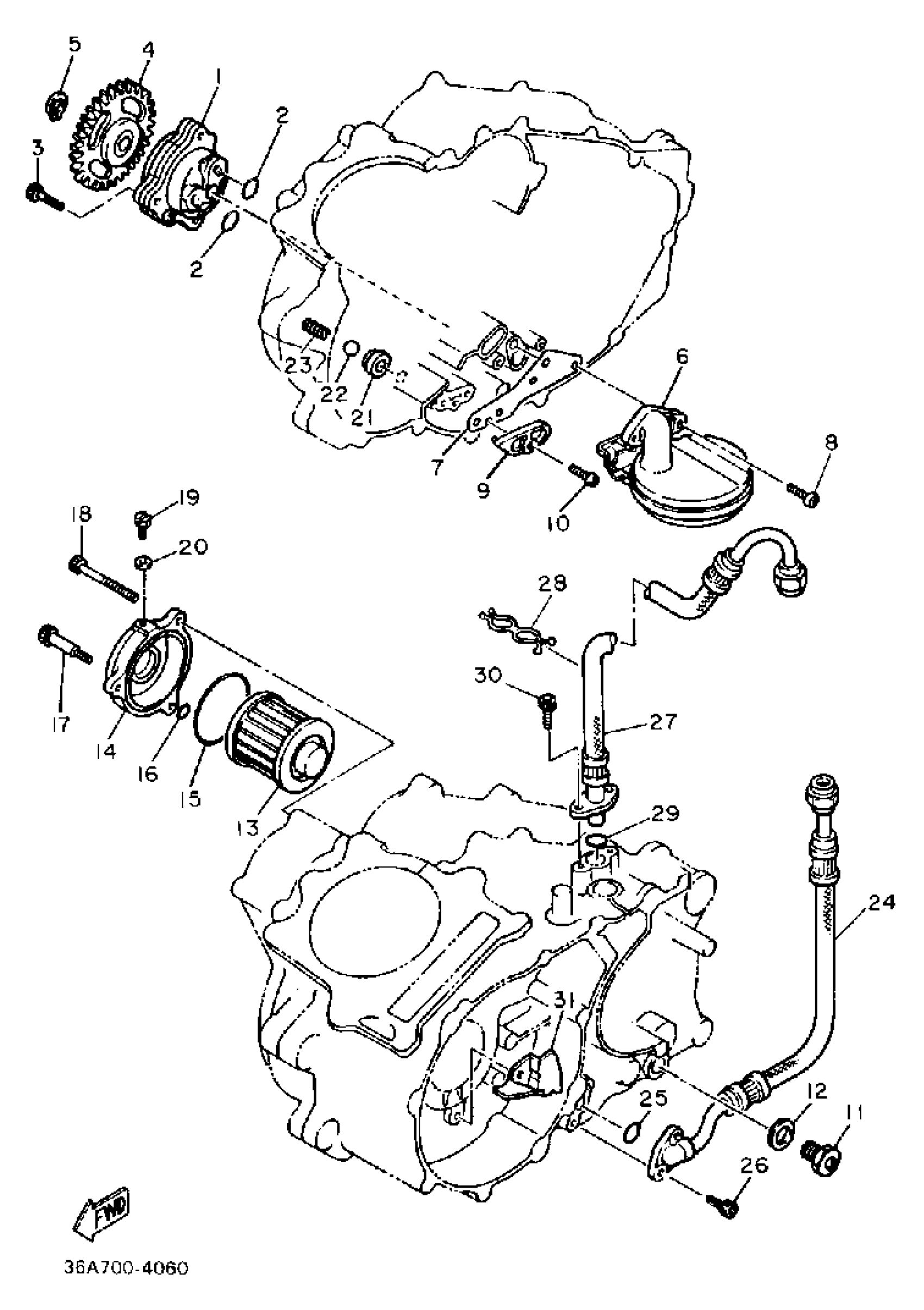

Yamaha TT600S (TT600) 1986 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP KIT (3AJ)

99999-01858-00

Unavailable

2

O-RING (2H7)

93210-13361-00

$5.60

3

BOLT,SOCKET

91317-06035-00

Unavailable

4

OIL PUMP GEAR KIT

99999-01925-00

Unavailable

5

CIRCLIP(24H)

99009-11400-00

$8.49

6

STRAINER ASSY.

5Y1-Y134C-00-00

Unavailable

7

SEAL, OIL STRAINER

4DW-13415-00-00

Unavailable

8

SCREW, PAN

98507-06014-00

$8.49

9

COVER, CAP 2

5Y1-15427-10-00

Unavailable

10

SCREW, PAN

98507-06014-00

$8.49

11

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

12

GASKET

214-11198-01-00

$3.17

13

ELEMENT ASSY, OIL CLEANER

4X7-13440-90-00

$14.49

14

COVER, OIL ELEMENT

583-13447-01-00

$29.99

15

O-RING (583 OIL CLEANER)

93210-64297-00

$8.49

16

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

Unavailable

17

BOLT (583 OIL DRAIN)

90109-06419-00

Unavailable

18

BOLT,SOCKET

91317-06080-00

Unavailable

19

SCREW (583)

90149-05110-00

Unavailable

20

GASKET

90430-05126-00

Unavailable

21

SEAT, CHECK BALL

583-13113-00-00

Unavailable

22

BALL

93503-08007-00

Unavailable

23

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable

24

HOSE, OIL 1

34K-13464-00-00

Unavailable

25

O-RING (371)

93210-10197-00

Unavailable

26

BOLT,SOCKET

91317-06016-00

Unavailable

27

HOSE, OIL 2

34K-13465-00-00

Unavailable

28

CLAMP (34K)

90464-20064-00

Unavailable

29

O-RING (341)

93210-15171-00

Unavailable

30

BOLT,SOCKET

91317-06016-00

Unavailable

31

PLATE

5Y1-13371-00-00

Unavailable
