Description

Price

1

H0LDER, LEVER 1

38V-82911-00-00

$38.99

1

KNOB AND SCREW SET

(4V5-00000-00-XX)

Unavailable

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

$23.99

3

LEVER 1

23X-83912-02-00

$27.99

4

BOLT(3GB)

90109-061F3-00

$7.49

5

WASHER, PLATE 1562722600

90201-08083-00

$9.49

6

NUT, SELF-LOCKING

95617-06100-00

$8.49

7

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

8

WASHER(3SX)

92907-05100-00

$8.49

9

LEVER 2

55Y-83922-02-00

$37.99

10

BOLT(48Y)

90109-062A8-00

$7.49

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

12

SCREW (2L0)

90149-06131-00

$8.49

13

NUT HEXAGON 306839270000

90170-06010-00

$8.49

14

SPRING COMPRESSION306839240000

90501-10312-00

$8.49

15

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

16

BAND, SWITCH CORD

437-83936-01-00

Unavailable

17

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

Unavailable

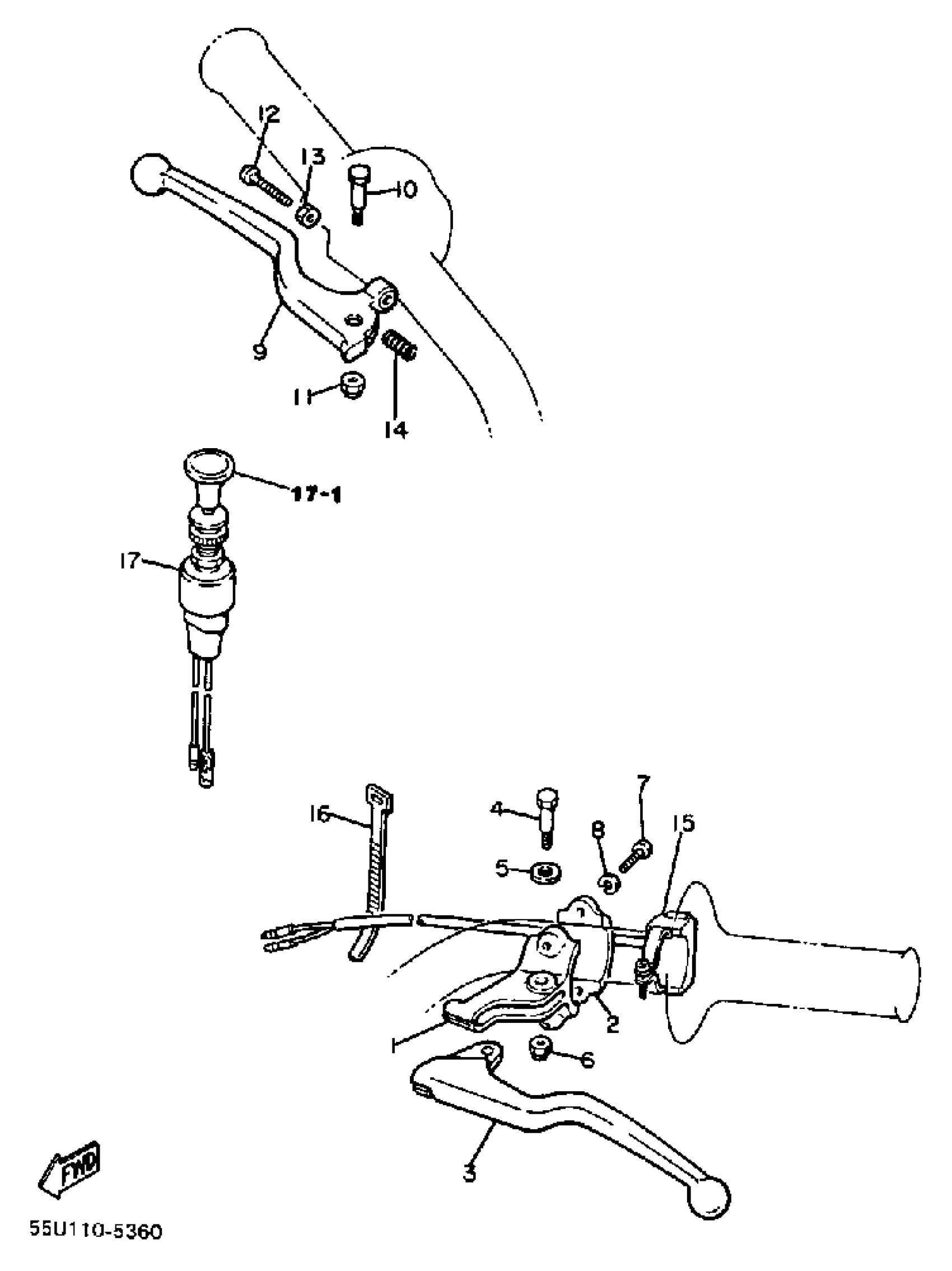

Yamaha TT600S (TT600) 1986 HANDLE SWITCH-LEVER Diagram

H0LDER, LEVER 1

KNOB AND SCREW SET

H0LDER, LEVER L0WER 1

LEVER 1

BOLT(3GB)

WASHER, PLATE 1562722600

NUT, SELF-LOCKING

SCREW, PAN HEAD(4MY)

WASHER(3SX)

LEVER 2

BOLT(48Y)

NUT, SELF-LOCKING

SCREW (2L0)

NUT HEXAGON 306839270000

SPRING COMPRESSION306839240000

SWITCH, HANDLE 1

BAND, SWITCH CORD

LIGHT SWITCH ASSEMBLY
