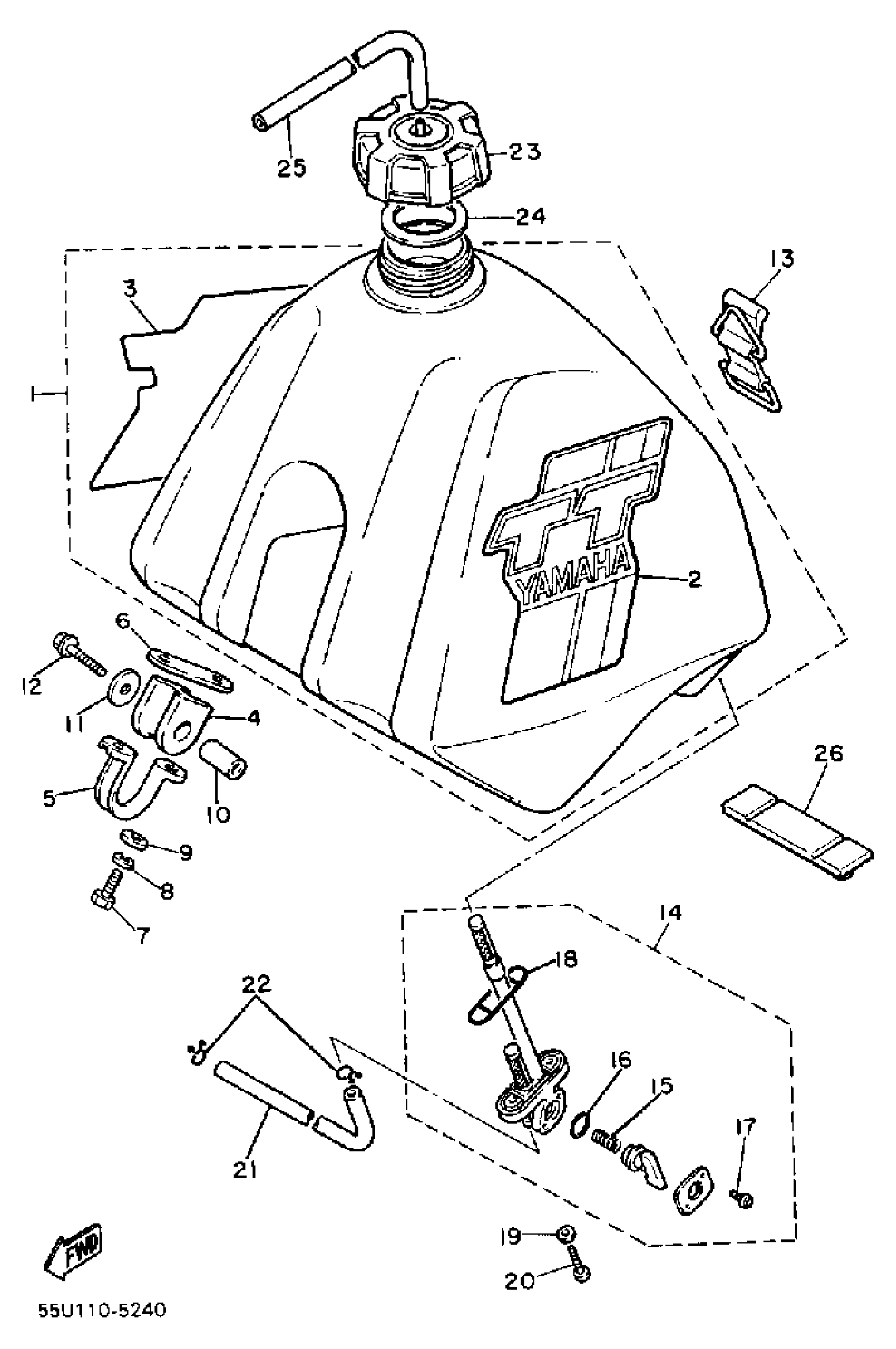

Yamaha TT600S (TT600) 1986 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

34K-Y2401-00-00

Unavailable

2

. GRAPHIC, FUELTANK 7

55U-24254-00-00

Unavailable

3

. GRAPHIC, FUELTANK 8

55U-24255-00-00

Unavailable

4

DAMPER, TANK LOCATING 2

1W1-24182-01-00

$32.99

5

HOLDER, DAMPER

1W1-24144-01-00

Unavailable

6

PLATE

34K-2413X-00-00

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

10

COLLAR, LEVER 1

36Y-83913-01-00

$9.99

11

WASHER, PLATE

90201-06747-00

$8.49

12

BOLT, WITH WASHER

90119-06022-00

Unavailable

13

BAND, TANK FITTING 1

59V-24173-00-00

$18.49

14

FUEL COCK ASSY 1

34K-24500-02-00

Unavailable

15

SPRING

(357-24529-10-00)

Unavailable

16

O-RING

4X8-24534-00-00

Unavailable

17

SCREW, PAN HEAD(6A3)

97885-06008-00

Unavailable

18

O-RING

4X8-24512-00-00

Unavailable

19

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

20

SCREW 256241430000

90149-06011-00

Unavailable

21

HOSE (L200)

90445-10752-00

Unavailable

22

CLIP

90467-090A2-00

Unavailable

23

CAP ASSY

5MV-24610-00-00

Unavailable

24

GASKET,CAP

3R9-24612-00-00

Unavailable

25

HOSE (L420)

90445-092K1-00

Unavailable

26

DAMPER, LOCATING 1

34K-24181-00-00

Unavailable
