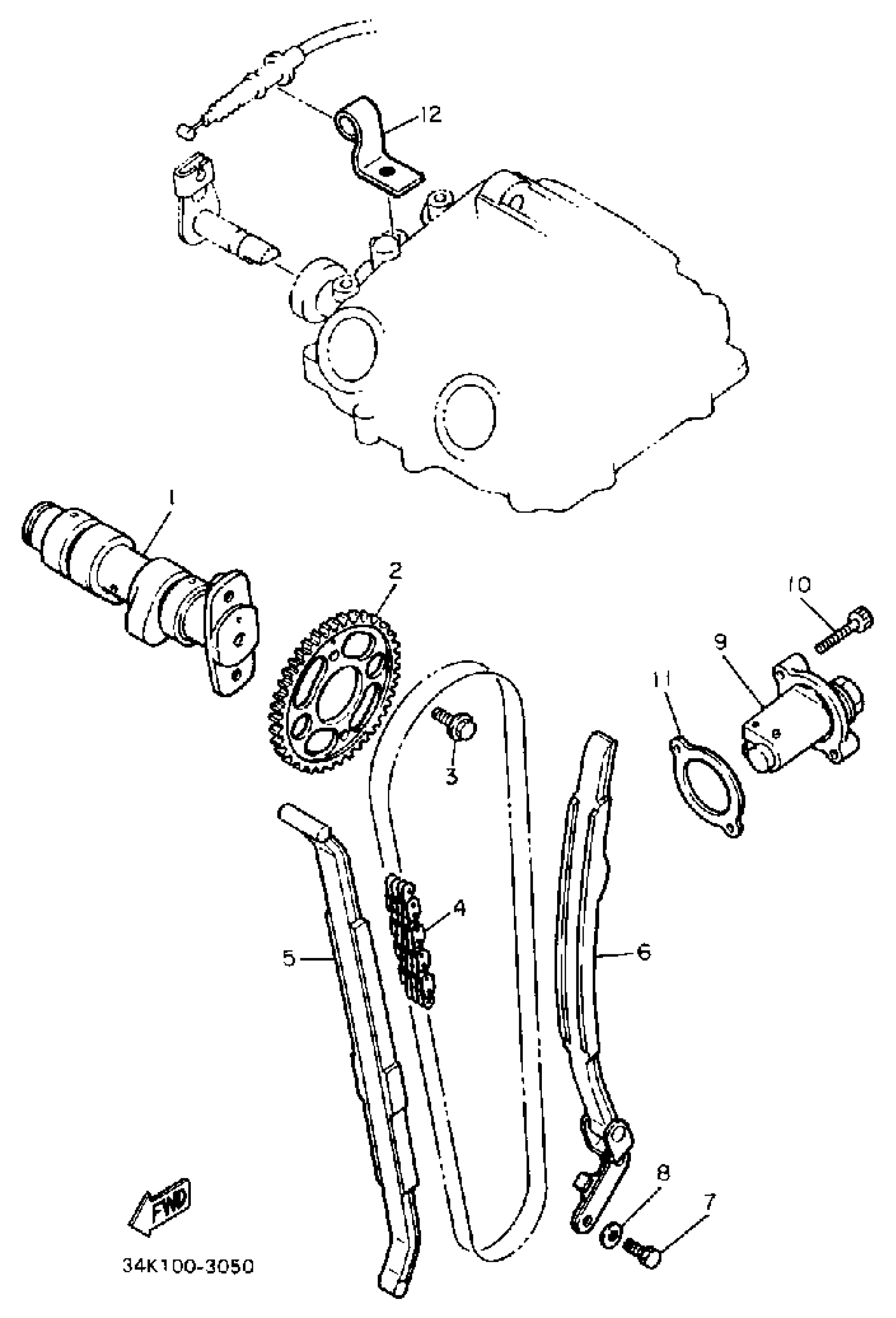

Yamaha TT600S (TT600) 1986 CAMSHAFT-CHAIN Diagram

CAMSHAFT ASSEMBLY 1 (34K-12170-00)

34K-12171-00-00

Unavailable

SPROCKET, CAM CHAIN

34K-12176-00-00

Unavailable

BOLT, FLANGE

90105-07004-00

$5.60

CHAIN

94591-40126-00

$63.99

GUIDE, STOPPER 1

34K-12231-01-00

Unavailable

GUIDE, STOPPER 2

34K-12241-01-00

$123.99

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

TENSNR ASSEMBLY, CAM CHN

34K-12210-00-00

Unavailable

BOLT,SOCKET

91317-06025-00

$5.60

GASKET, TENSIONER CASE

4DW-12213-00-00

$7.99

BRACKET, DCOMP (5Y1-12283-00)

1JK-12283-00-00

Unavailable
