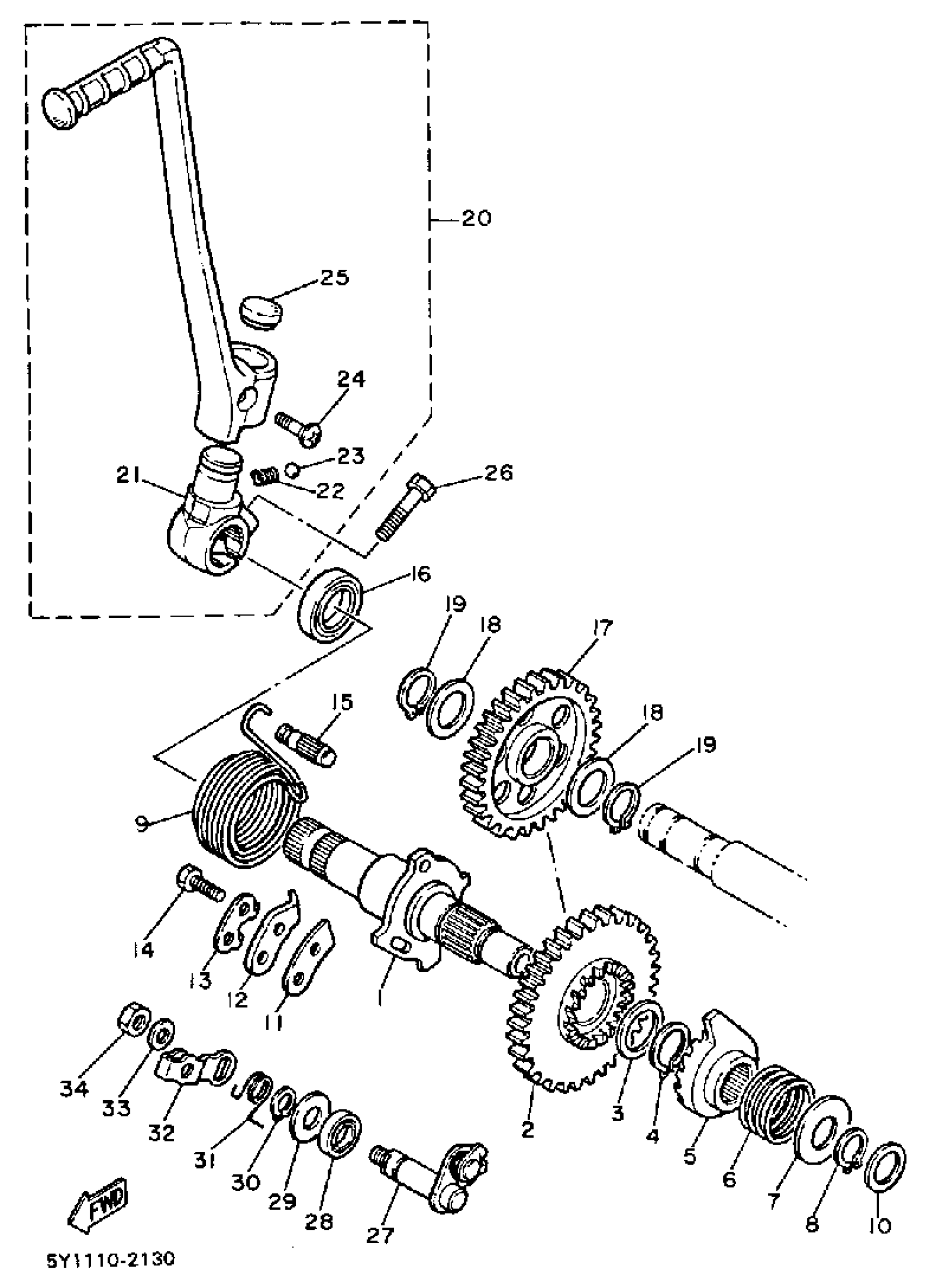

Yamaha TT600N (TT600) 1985 STARTER Diagram

#

Description
Price

1

KICK CRANK ASSEMBLY

5Y1-15660-01-00

Unavailable

2

GEAR,KICK

34K-15641-00-00

Unavailable

3

WASHER, PLATE (2K7)

90201-20685-00

$7.49

4

CIRCLIP (525)

93410-20038-00

$3.76

5

WHEEL, RATCHET

5Y1-15671-01-00

Unavailable

6

SPRING COMPRESSION168156750000

90501-16107-00

Unavailable

7

WASHER, PLAIN (1JL)

90201-155K6-00

Unavailable

8

CIRCLIP(1AR)

99009-15400-00

$8.49

9

SPRING, TORSION

90508-32529-00

Unavailable

10

WASHER (566)

90201-15701-00

$8.49

11

STOPPER

2NX-15668-00-00

$24.99

12

GUIDE, RATCHET WHEEL

2NX-15674-00-00

$9.99

13

WASHER, LOCK

214-15686-00-00

$7.99

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

STOPPER, KICK SPRING

248-15668-00-00

$7.99

16

OIL SEAL (20X30X7-371)

93102-20108-00

Unavailable

17

GEAR, SPR0CKET IDLE 31T

5Y1-15651-01-00

Unavailable

18

WASHER PLATE 328171160000

90201-20276-00

Unavailable

19

CIRCLIP(1AR)

99009-20400-00

Unavailable

20

KICK CRANK ASSY

5Y1-15620-02-00

Unavailable

21

BOSS, KICK CRANK

5Y1-15621-01-00

Unavailable

22

SPRING COMPRESSION278156220000

90501-12081-00

Unavailable

23

BALL (12R)

93507-32031-00

Unavailable

24

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

Unavailable

25

. PLUG, TAPER

90336-18038-00

Unavailable

26

BOLT, HEXAGON

97013-08030-00

Unavailable

27

LEVER DCOMP ASSEMBLY

3Y1-1561A-02-00

Unavailable

28

SEAL,OIL(SD 10-21-5 HS,3Y1)

93102-10207-00

Unavailable

29

WASHER, PLATE(52H)

90201-105J4-00

Unavailable

30

CIRCLIP(10W)

99009-10400-00

Unavailable

31

SPRING, TORSION

90508-14524-00

Unavailable

32

LEVER, CABLE

5Y1-1561G-00-00

Unavailable

33

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

34

NUT(JN5)

95317-06700-00

Unavailable
