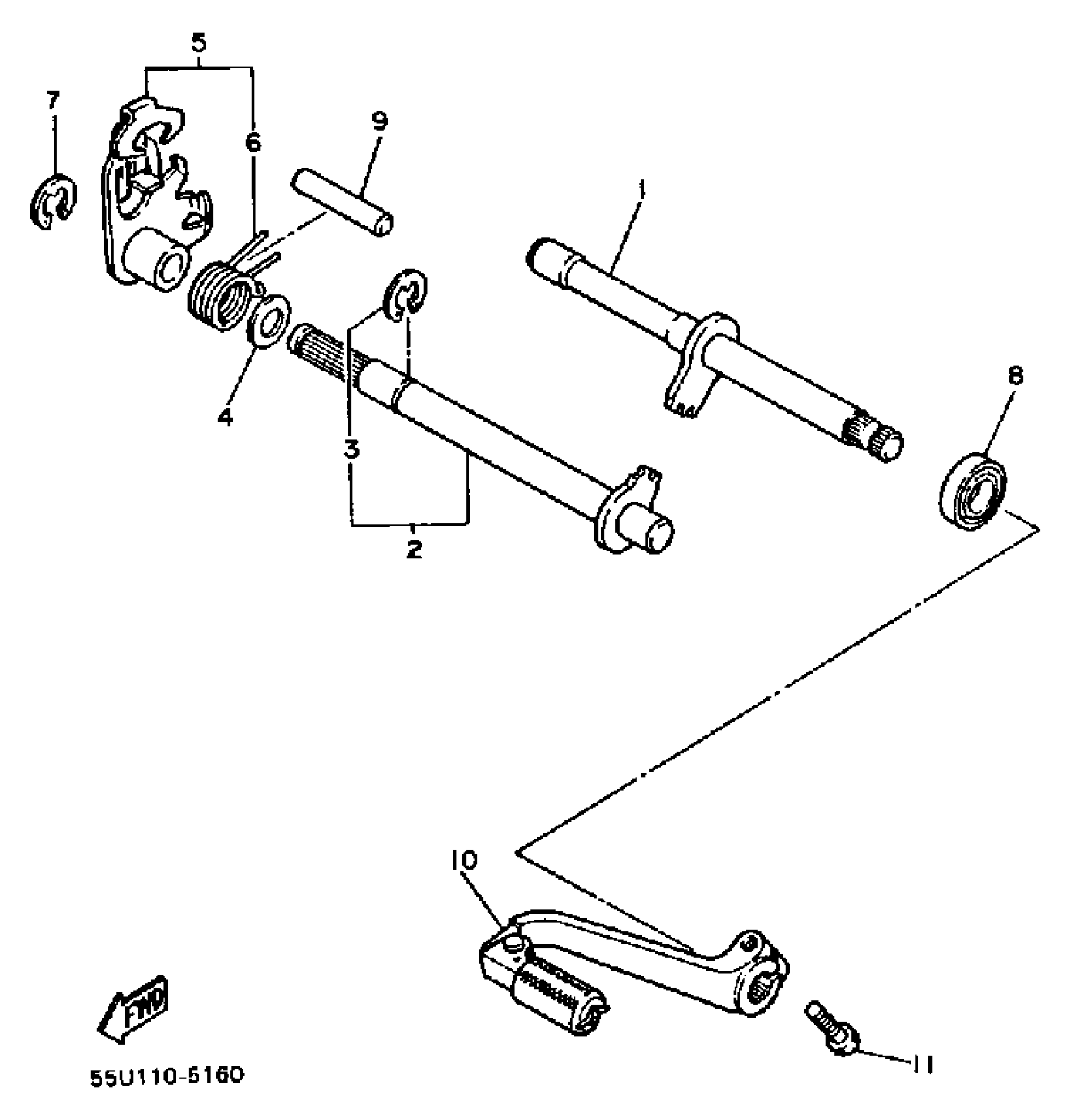

Yamaha TT600N (TT600) 1985 SHIFT SHAFT Diagram

#

Description
Price

1

SHIFT SHAFT ASSY 2

43F-18102-02-00

Unavailable

2

SHIFT SHAFT ASSEMBLY

5Y1-18101-02-00

Unavailable

3

CIRCLIP

99006-10600-00

$9.49

4

WASHER PLATE 102181410000

90201-12474-00

$7.49

5

SHIFT LEVER ASSY

34K-18120-01-00

Unavailable

6

. SPRING, TORSION

90508-29629-00

Unavailable

7

CIRCLIP(J51)

99080-09600-00

$2.55

8

SEAL, OIL (30X)

93102-12321-00

$12.49

9

PIN, DOWEL

93608-33046-00

Unavailable

10

SHIFT PEDAL ASSEMBLY

34K-18110-02-00

Unavailable

11

BOLT, HEXAGON

97017-06025-00

$4.24
