Description

Price

1

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

3SW-22210-00-6W

Unavailable

2

CIRCLIP (23X)

93440-30113-00

$1.70

3

OIL SEAL (23X)

93104-18077-00

$11.49

4

. SPRING, MXS HARD

34K-22212-20-6W

Unavailable

5

. GUIDE, SPRING 1

23X-22214-00-00

Unavailable

6

BOLT (1M1)

90109-10453-00

Unavailable

7

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

8

WASHER (7A9)

90201-100F7-00

$9.49

9

BUSHING, REAR ARM INNER

2J5-22124-00-00

$48.99

10

BOLT

90109-10700-00

Unavailable

11

WASHER, PLATE

90201-12027-00

$8.49

12

WASHER, PLATE(6TC)

90201-10M05-00

$5.60

13

NUT, SELF LOCKING (23X)

90185-10120-00

$5.60

14

COLLAR (23X)

90387-126H8-00

$28.99

15

HOLDER, SUB TANK

34K-22262-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

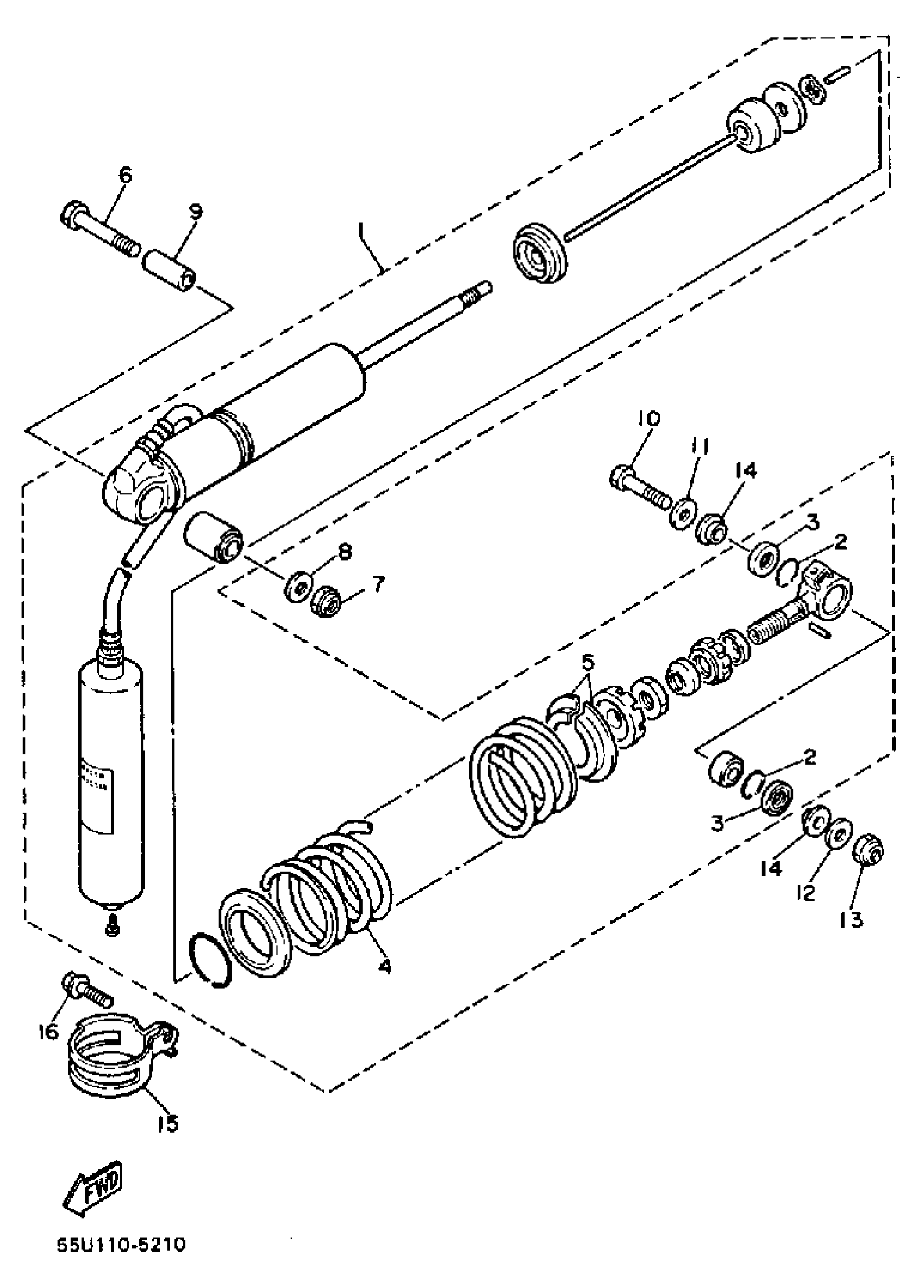

Yamaha TT600N (TT600) 1985 REAR SHOCKS Diagram

SHK/ABS ASSEMBLY, REARASSEMBLY, REAR

CIRCLIP (23X)

OIL SEAL (23X)

. SPRING, MXS HARD

. GUIDE, SPRING 1

BOLT (1M1)

NUT, SELF LOCKING (23X)

WASHER (7A9)

BUSHING, REAR ARM INNER

BOLT

WASHER, PLATE

WASHER, PLATE(6TC)

NUT, SELF LOCKING (23X)

COLLAR (23X)

HOLDER, SUB TANK

BOLT, FLANGE
