1985 Yamaha TT600 (TT600N) Handle Switch-Lever Diagram

← All diagrams

Find the part on the Handle Switch-Lever diagram for your 1985 Yamaha TT600 (TT600N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

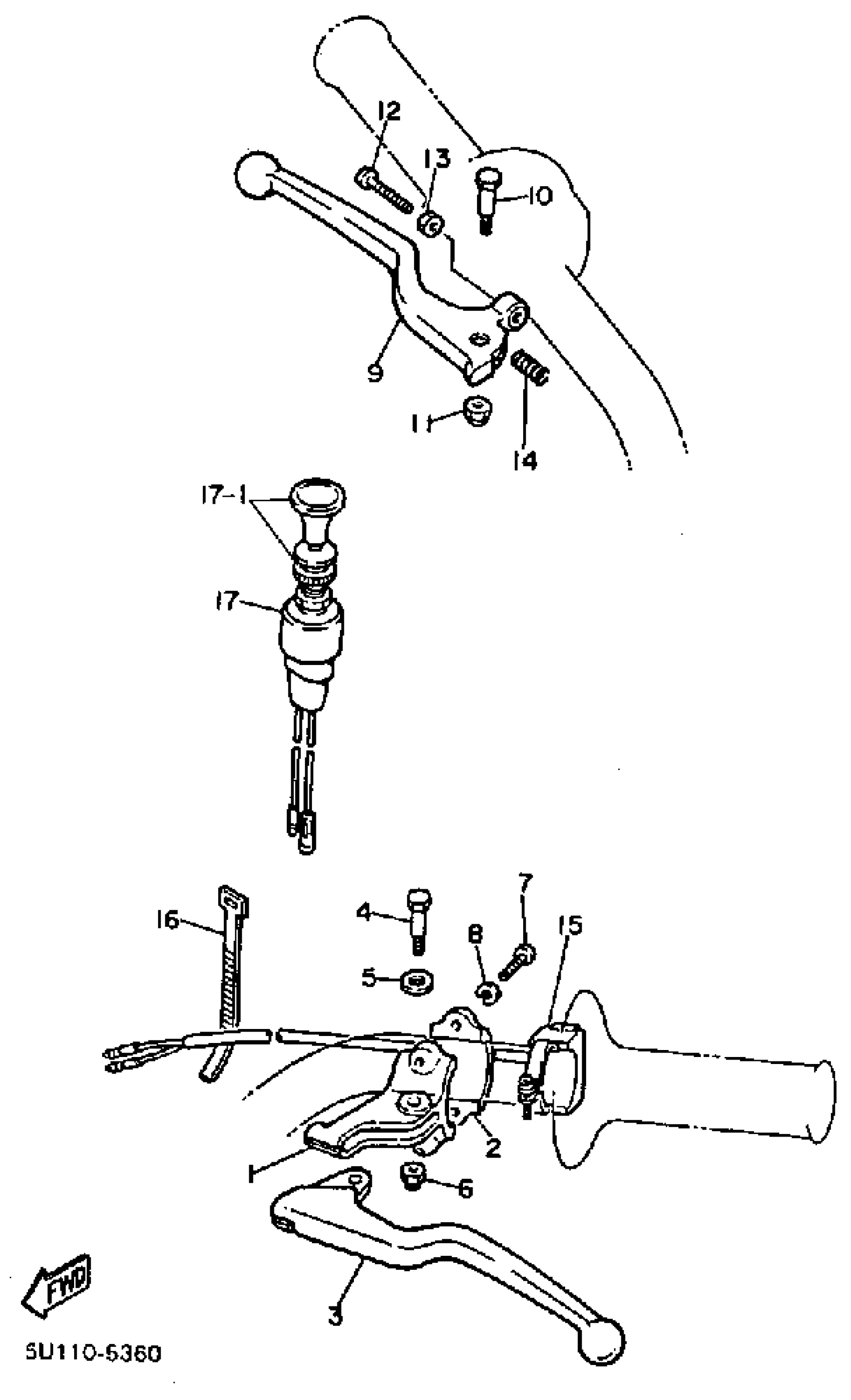

1985 Yamaha TT600 (TT600N) Handle Switch-Lever Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

H0LDER, LEVER 1

38V-82911-00-00

1

$33.86

In stock

2

H0LDER, LEVER L0WER 1

38V-82913-00-00

1
Out of stock

3

LEVER 1

23X-83912-02-00

1

$21.46

In stock

4

BOLT(3GB)

90109-061F3-00

1

$4.85

In stock

5

WASHER, PLATE 1562722600

90201-08083-00

1
Out of stock

6

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

7

SCREW, PAN HEAD(4MY)

98507-05018-00

1

$2.48

In stock

8

WASHER(3SX)

92907-05100-00

1

$6.18

In stock

9

LEVER 2

55Y-83922-02-00

1

$33.70

In stock

10

BOLT(48Y)

90109-062A8-00

1
Out of stock

11

NUT, SELF-LOCKING

95617-06100-00

1

$2.32

In stock

12

SCREW (2L0)

90149-06131-00

1

$6.17

In stock

13

NUT HEXAGON 306839270000

90170-06010-00

1

$6.17

In stock

14

1

$6.17

In stock

15

SWITCH, HANDLE 1

23X-83976-01-00

—
Out of stock

16

BAND, SWITCH CORD

437-83936-01-00

—

$4.63

In stock

17

LIGHT SWITCH ASSEMBLY

4V5-82520-00-00

1
Out of stock
