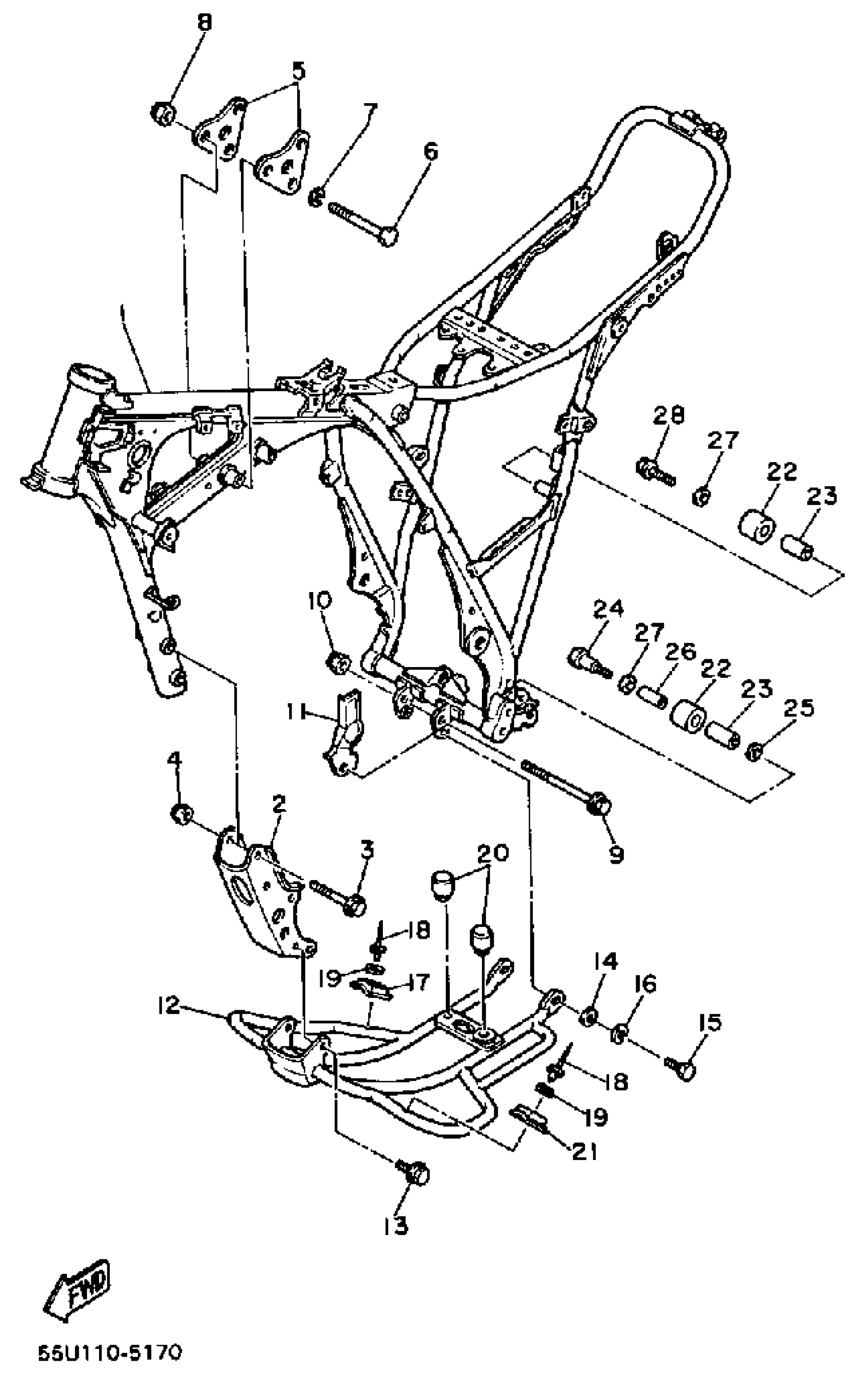

Yamaha TT600N (TT600) 1985 FRAME Diagram

#

Description
Price

1

FRAME

(55U-21110-00-FH)

Unavailable

2

STAY, ENGINE 3

(34K-21316-00-FH)

Unavailable

3

BOLT, WASHER BASED (39E)

90105-10286-00

$8.49

4

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

5

STAY, ENGINE 2

34K-21315-00-00

Unavailable

6

BOLT, WASHER BASED(65J)

90105-10M75-00

$7.49

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

9

BOLT, FLANGE(6TA)

95817-10110-00

$7.49

10

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

$7.49

11

PLATE

(34K-2176E-00-00)

Unavailable

12

PROTECTOR, ENGINE

34K-21471-00-FH

Unavailable

13

BOLT, FLANGE

95817-08012-00

$5.49

14

WASHER, PLATE (8K2)

90201-06778-00

$4.46

15

BOLT, HEXAGON

97017-06020-00

$4.06

16

WASHER, SPRING

92995-06100-00

Unavailable

17

DAMPER, RUBBER 1

34K-21485-00-00

Unavailable

18

RIVET,BLIND

90267-40080-00

Unavailable

19

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

20

STOPPER, MAIN STAND

4N0-27114-00-00

Unavailable

21

DAMPER 2

34K-21486-00-00

Unavailable

22

TENSIONER

30X-22178-00-00

Unavailable

23

BUSH

4V4-22184-00-00

Unavailable

24

BOLT (23X)

90109-08705-00

Unavailable

25

WASHER, PLATE

90201-13013-00

Unavailable

26

COLLAR (7R4)

90387-085E1-00

Unavailable

27

WASHER, PLATE(8AT)

90201-081R9-00

Unavailable

28

BOLT, FLANGE(JN5)

95817-08016-00

Unavailable
