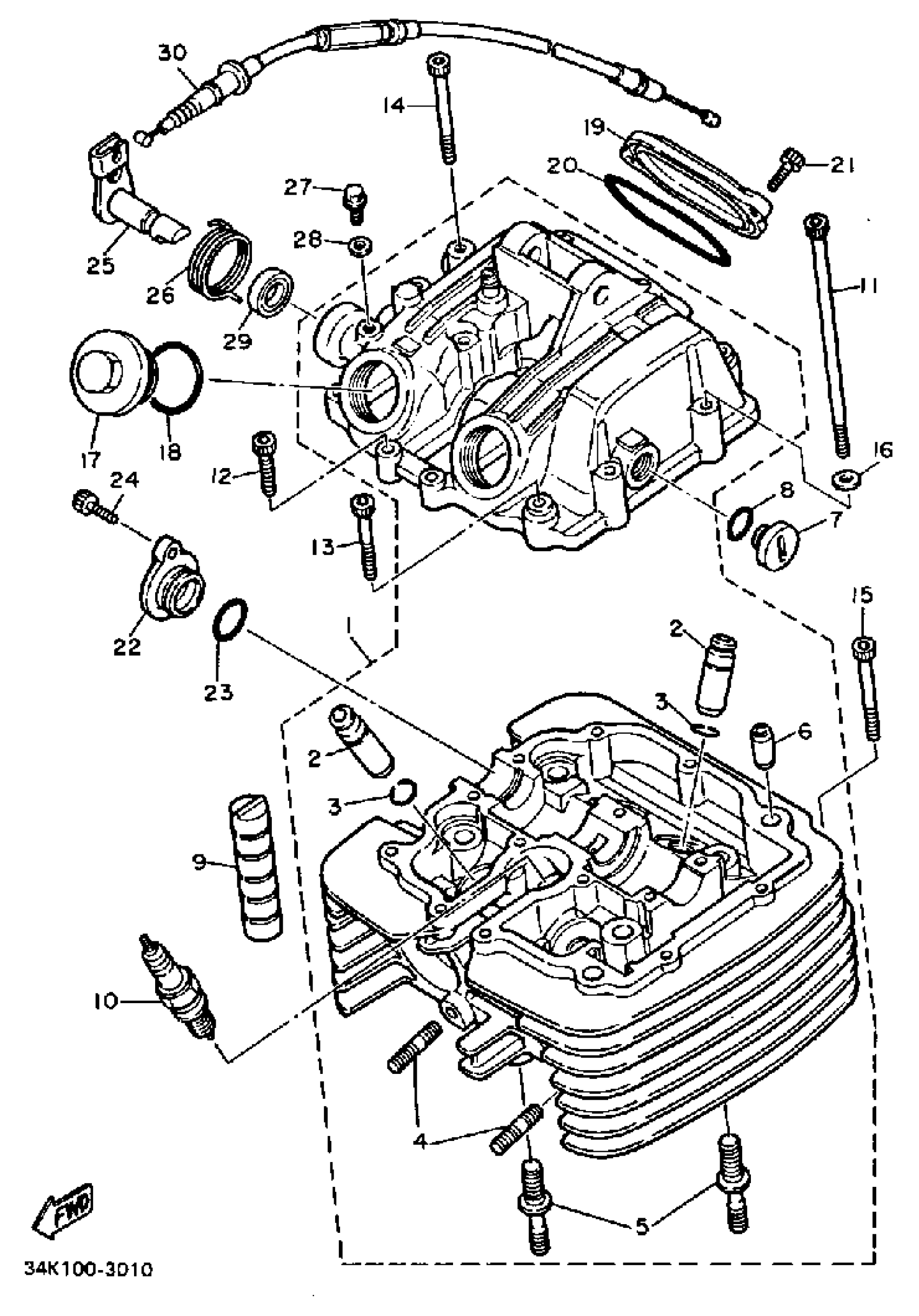

Yamaha TT600N (TT600) 1985 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSEMBLY

34K-11101-03-00

Unavailable

2

GUIDE, INTAKE VALVE

4H7-11133-11-00

$50.99

3

CIRCLIP (1L9)

93440-12052-00

$2.44

4

BOLT, STUD(1JK)

90116-06475-00

$8.49

5

BOLT, STUD (4H7)

90116-10329-00

$15.99

6

PIN, DOWEL(3VD)

99530-10114-00

$2.55

7

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

8

O-RING (2H9)

93210-14369-00

$7.49

9

ABSORBER

583-11127-00-00

$7.99

10

DP7EA9 NGK SPLUG 10PK

DP7-EA900-00-00

Unavailable

11

BOLT, SOCKET

91317-06125-00

$17.99

12

BOLT,SOCKET

91317-06025-00

$5.60

13

BOLT,SOCKET

91317-06040-00

$3.76

14

BOLT,SOCKET

91317-06055-00

$4.19

15

BOLT,SOCKET

91317-06050-00

$3.88

16

WASHER(6TA)

92907-06600-00

Unavailable

17

PLUG, VIEWER

1H2-11186-00-00

Unavailable

18

O-RING (341)

93210-32172-00

Unavailable

19

COVER, CYLINDER HEAD SIDE 3

5Y1-11187-00-00

Unavailable

20

O-RING (4X7)

93210-62446-00

Unavailable

21

BOLT,SOCKET

91317-06018-00

Unavailable

22

CAP, TENSIONER CASE

99999-03124-00

Unavailable

23

O-RING (5Y1)

93210-19522-00

Unavailable

24

BOLT,SOCKET

91317-06020-00

Unavailable

25

CAM, DECOMPRESSION

1JK-12288-00-00

Unavailable

26

SPRING, TORSION (5Y1)

90508-18551-00

Unavailable

27

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

28

GASKET 256113960000

90430-06014-00

Unavailable

29

SEAL, OIL (30X)

93102-12321-00

Unavailable

30

CABLE, DECOMP.

5Y1-12292-00-00

Unavailable
