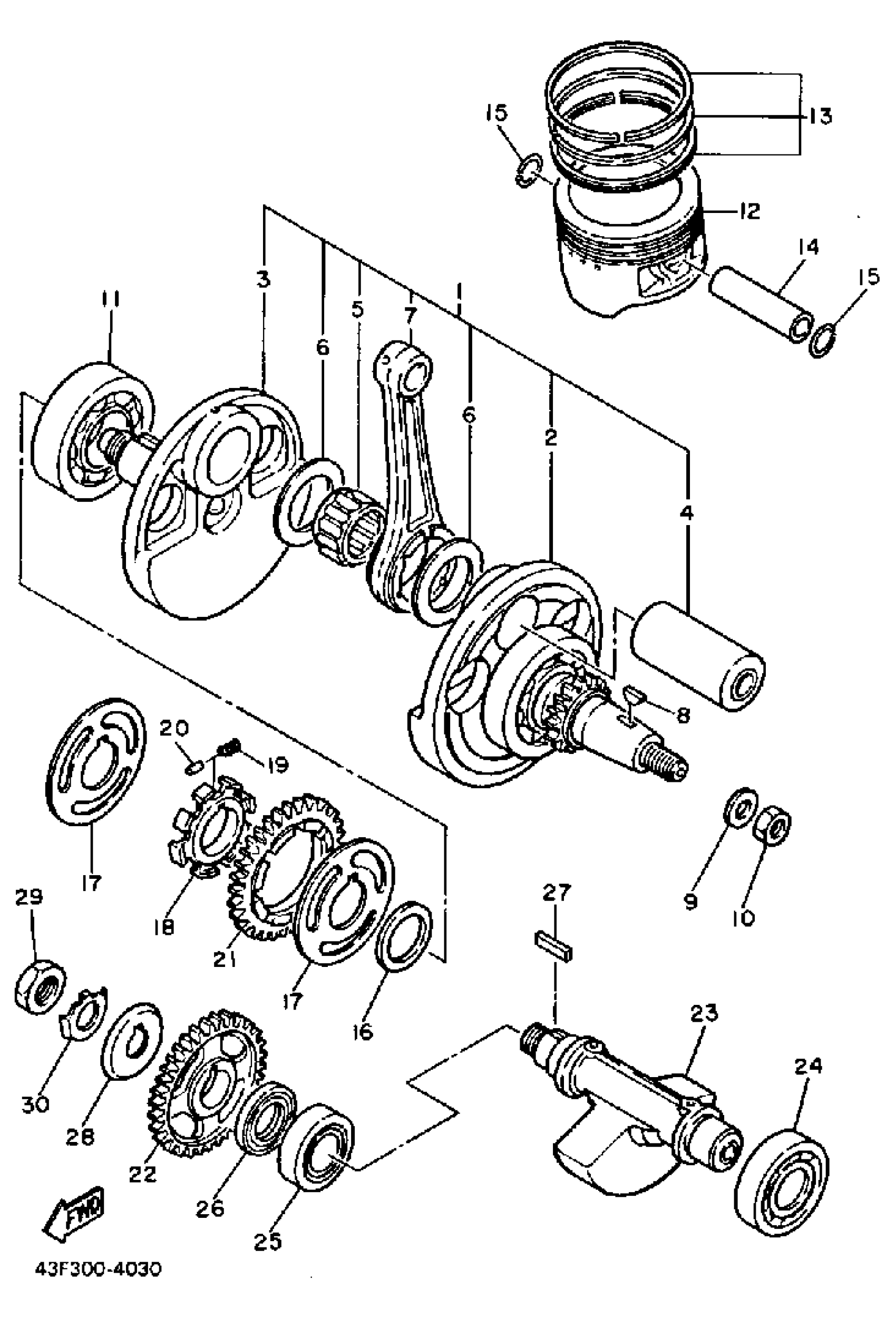

Yamaha TT600N (TT600) 1985 CRANKSHAFT-PISTON Diagram

CRANKSHAFT ASSEMBLY

34K-11400-00-00

Unavailable

. CRANK 1

34K-W1141-00-00

Unavailable

. CRANK 2

34K-11422-00-00

Unavailable

. PIN, CRANK 1

34K-11681-00-00

Unavailable

BEARING

93310-6340F-00

Unavailable

WASHER(24V)

90209-34254-00

$5.60

ROD, CONNECTING

34K-11651-00-00

Unavailable

KEY, WOODRUFF

90280-05001-00

$12.49

WASHER, PLATE

90201-140A6-00

Unavailable

NUT

90179-14317-00

$21.99

BEARING (3GV)

93306-30702-00

$74.99

PISTON (STD)

34K-11631-02-Y0

Unavailable

PISTON RING SET

34K-11610-01-00

Unavailable

PIN, PISTON

1JK-11633-01-00

Unavailable

CIRCLIP 256116340000

93450-24028-00

$5.60

WASHER, PLATE (5Y1)

90201-301F4-00

Unavailable

WASHER, BEARING COVER

34K-11565-02-00

Unavailable

BOSS, BUFFER

5Y1-11496-01-00

Unavailable

SPRING, COMPRESSION (5Y1)

90501-22721-00

Unavailable

PIN, DOWEL

93605-10090-00

Unavailable

GEAR, DRIVE

2JT-11536-00-00

Unavailable

GEAR, BALANCE WT 44T

5Y1-11531-00-00

Unavailable

WEIGHT 1

34K-11454-00-00

Unavailable

BEARING (3Y1)

93306-30525-00

Unavailable

BEARING(3RR)

93306-30560-00

Unavailable

OIL SEAL (5Y1)

93101-25106-00

Unavailable

KEY, STRAIGHT(34K)

90282-05065-00

Unavailable

PLATE, BREATHER 2

34K-11145-00-00

Unavailable

NUT(24V)

90170-16343-00

Unavailable

WASHER, LOCK(24V)

90215-16242-00

Unavailable
