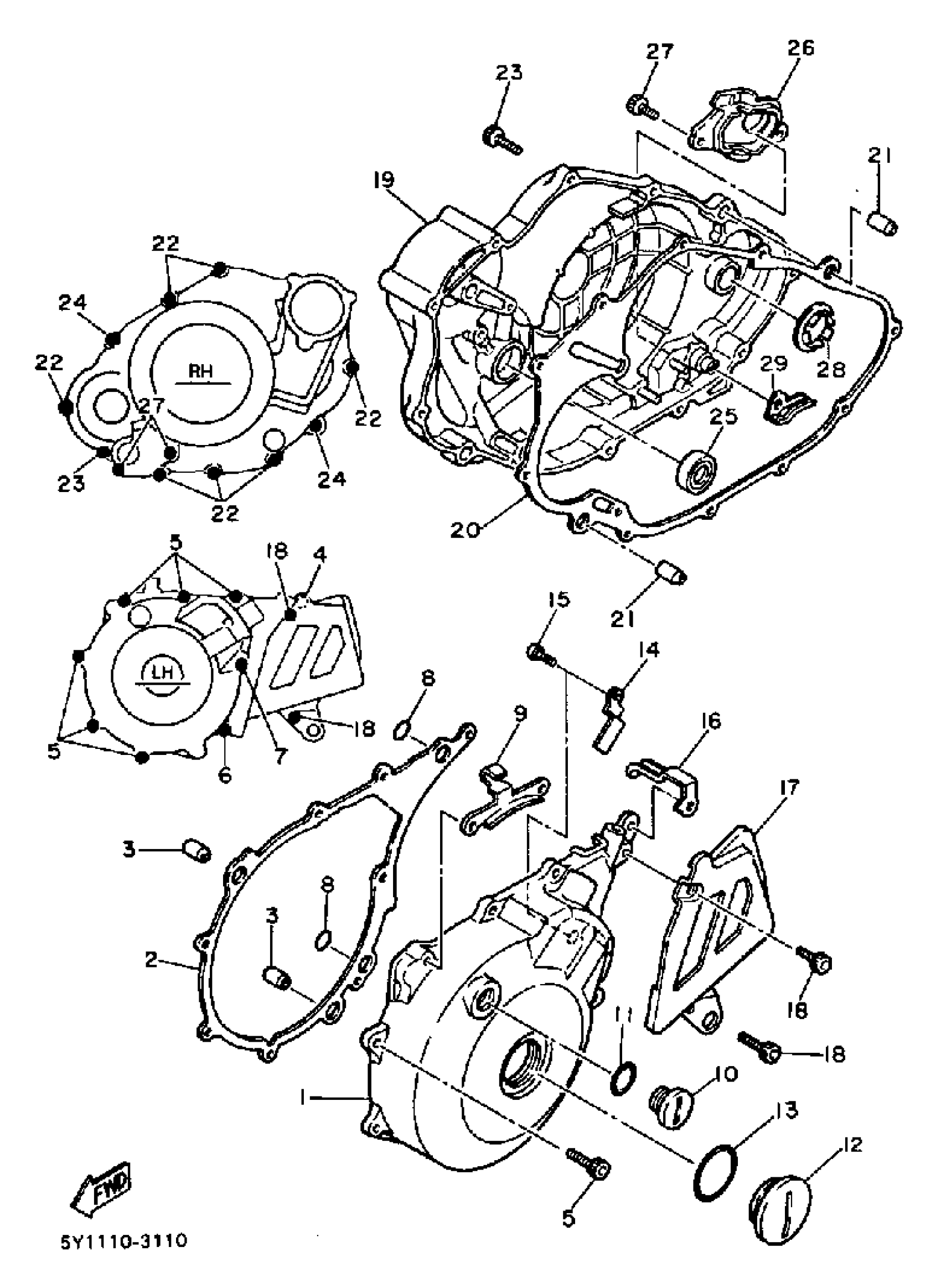

Yamaha TT600N (TT600) 1985 CRANKCASE COVER 1 Diagram

#

Description
Price

1

COVER, CRANKCASE L

34K-15411-00-00

Unavailable

2

GASKET, CRANKCASE COVER 1

3SW-15451-00-00

$27.99

3

PIN, DOWEL

99530-12016-00

$4.89

4

BOLT,SOCKET

91317-06020-00

Unavailable

5

BOLT,SOCKET

91317-06025-00

$5.60

6

BOLT,SOCKET

91317-06040-00

$3.76

7

BOLT,SOCKET

91317-06050-00

$3.88

8

O-RING (2H7)

93210-13361-00

$5.60

9

HOLDER, CLCH CABLE

5Y1-15441-00-00

Unavailable

10

PLUG, STRAIGHT SCREW (5Y1)

90340-14079-00

Unavailable

11

O-RING (2H9)

93210-14369-00

$7.49

12

PLUG, STRAIGHT SCREW (5Y1)

90340-36078-00

$14.99

13

O-RING

93210-35804-00

$0.48

14

CLAMP

90462-16102-00

Unavailable

15

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable

16

CLAMP

90462-10107-00

Unavailable

17

COVER, CRANKCASE R

5Y1-15421-02-00

Unavailable

18

BOLT,SOCKET

91317-06016-00

Unavailable

19

COVER, CRANKCASE 3

5Y1-15431-03-00

Unavailable

20

GASKET, CRANKCASE COVER 3

4DW-15462-00-00

Unavailable

21

PIN, DOWEL

99530-12016-00

$4.89

22

BOLT,SOCKET

91317-06025-00

$5.60

23

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

24

BOLT,SOCKET

91317-06035-00

Unavailable

25

OIL SEAL (3Y1)

93101-14092-00

Unavailable

26

COVER, CAP

2WK-15417-00-00

Unavailable

27

BOLT,SOCKET

91317-06016-00

Unavailable

28

SHIM, KICK SHAFT

5Y1-15645-00-00

Unavailable

29

PLATE, DECOMP

5Y1-1562F-01-00

Unavailable
