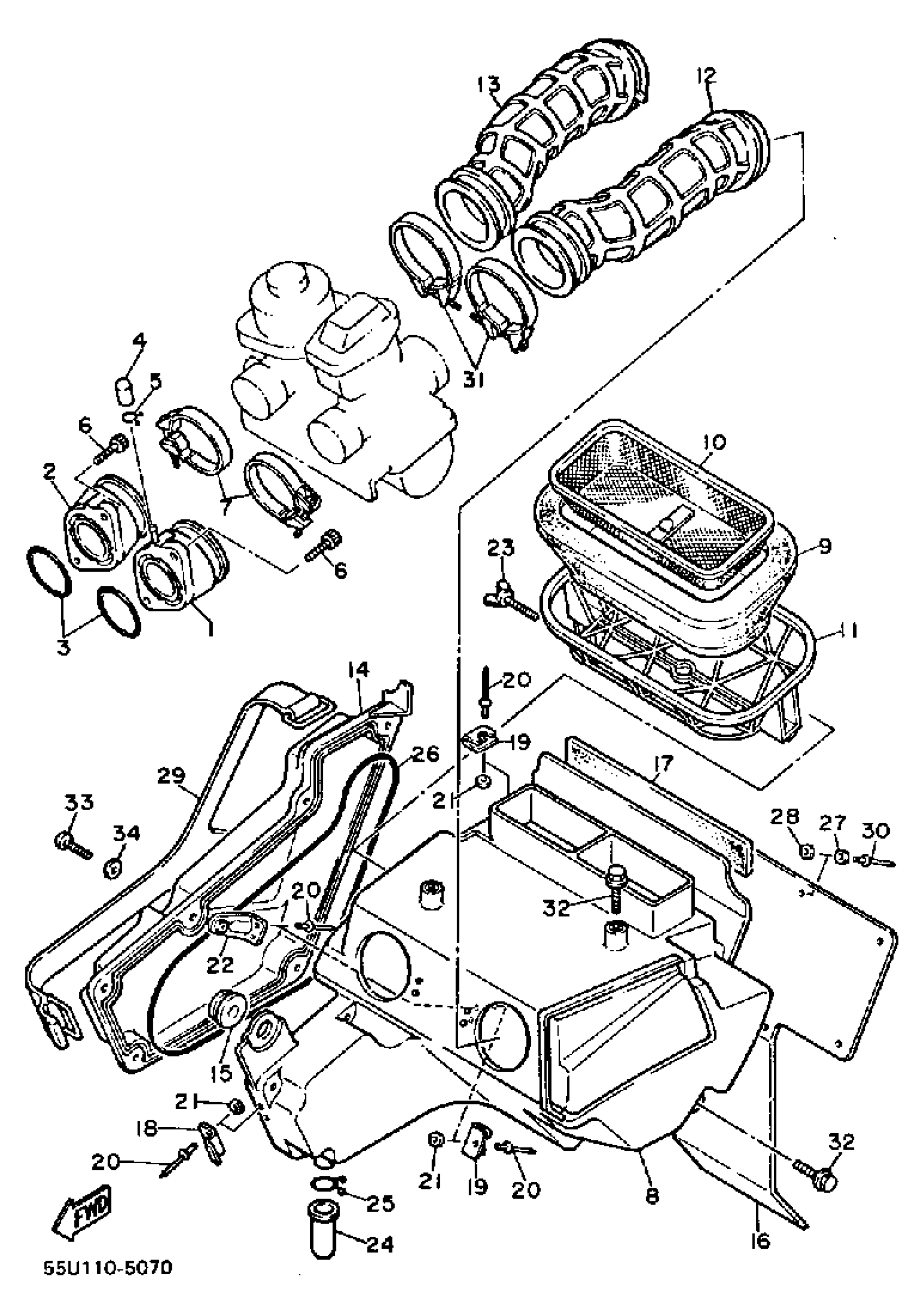

Yamaha TT600N (TT600) 1985 AIR FILTER Diagram

#

Description
Price

1

JOINT, CARBURETOR 1

43F-13586-01-00

Unavailable

2

JOINT, CARBURETOR 2

43F-13596-01-00

Unavailable

3

O-RING(2TY)

93210-36769-00

$11.49

4

PLUG, BLIND

16G-13569-00-00

$7.99

5

CLIP (3G0)

90467-10039-00

$9.49

6

BOLT,SOCKET

91317-06020-00

Unavailable

7

HOSE CLAMP ASSY

90450-47002-00

$8.49

8

AIR CLNR CASE ASSEMBLYASSY

34K-14401-01-00

Unavailable

9

ELEMENT, AIR CLEANER

34K-14451-02-00

Unavailable

10

GUIDE, ELEMENT

34K-14458-02-00

Unavailable

11

GUIDE, ELEMENT

34K-14473-02-00

Unavailable

12

JOINT, AIR CLNR 1

43F-14453-00-00

Unavailable

13

JOINT

43F-14454-00-00

Unavailable

14

CAP, CLEANER CASE 1

34K-14412-01-00

Unavailable

15

GROMMET

90480-13014-00

$8.49

16

FLAP

34K-21621-01-00

Unavailable

17

DAMPER 2

34K-14426-00-00

Unavailable

18

HOOK

26A-14436-00-00

Unavailable

19

PLATE, CLEANER CASE FITTING

34K-14484-00-00

Unavailable

20

RIVET, BLIND

90267-40029-00

Unavailable

21

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

22

STAY 1

34K-14493-01-00

Unavailable

23

BOLT, WING

90122-05010-00

Unavailable

24

SEAL

1W4-14457-00-00

Unavailable

25

CLIP

90467-20M15-00

Unavailable

26

SEAL

51Y-14462-00-00

Unavailable

27

WASHER, PLATE (8M6)

90201-047A2-00

Unavailable

28

YBS66-4 WASHER, PLAIN

92990-04200-00

Unavailable

29

BAND

34K-14455-00-00

Unavailable

30

RIVET, BLIND

90267-40029-00

Unavailable

31

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

32

BOLT, FLANGE

95817-06012-00

Unavailable

33

SCREW, PAN HEAD

90157-05M19-00

Unavailable

34

WASHER(1RW)

92907-05600-00

Unavailable
