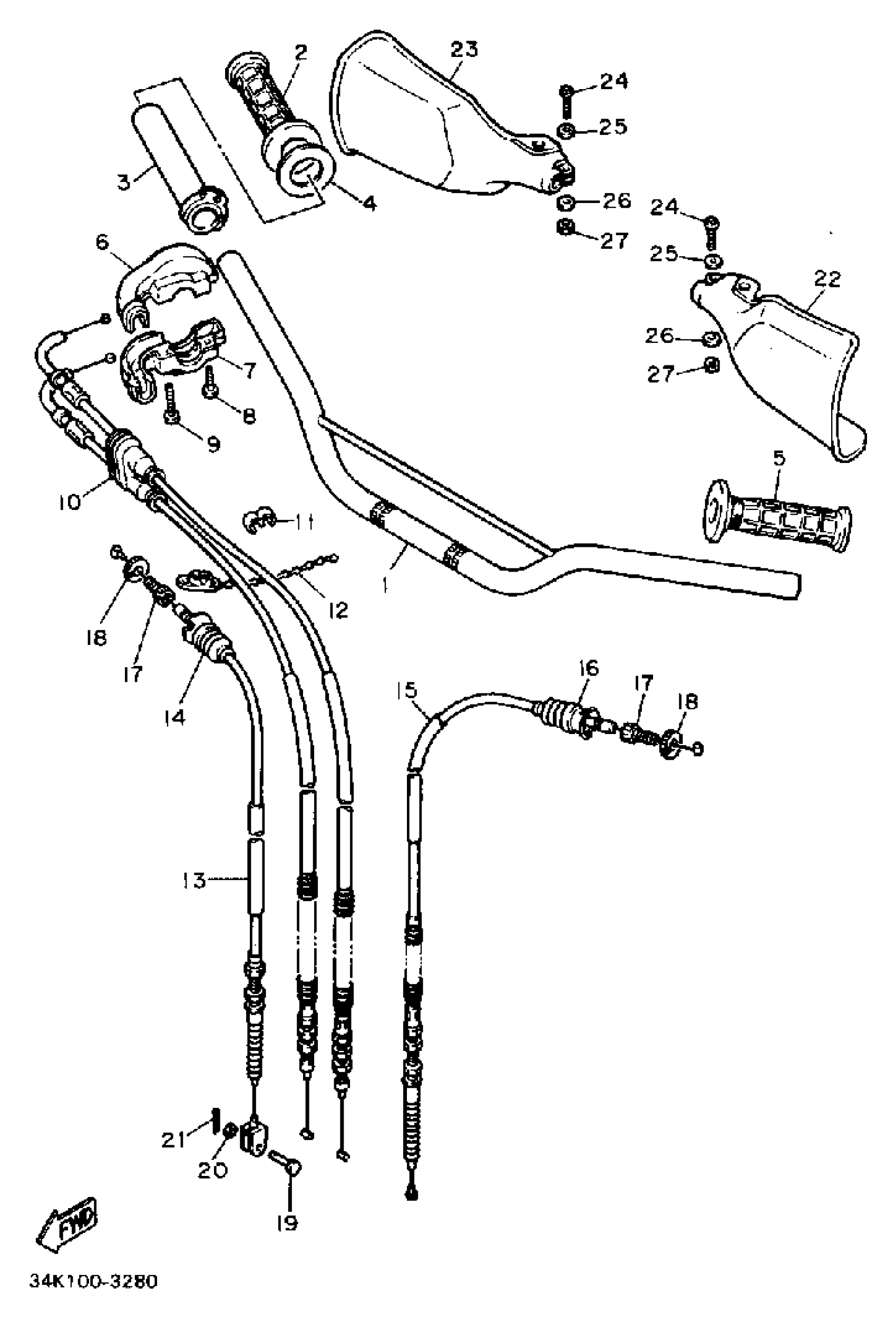

Yamaha TT600K (TT600) 1983 STEERING HANDLE-CABLE Diagram

#

Description
Price

1

HANDLEBAR

34K-26111-00-00

$122.20

2

GRIP (R.H)

1LX-26242-01-00

$28.57

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$21.89

4

RING, LEAF

3Y1-26249-00-00

$7.96

5

GRIP (L.H)

1LX-26241-01-00

$27.16

6

CAP, GRIP UPPER

34K-26281-00-00

Unavailable

7

CAP, GRIP LOWER

1VJ-26282-00-00

Unavailable

8

SCREW, PAN HEAD

98517-05020-00

$1.26

9

SCREW, PAN HEAD(4MY)

98507-05025-00

$5.76

10

THROTTLE CABLE ASSEMBLYASSY

34K-26302-00-00

Unavailable

11

CLIP, WIRE 2072639100

90468-15009-00

Unavailable

12

CLAMP

90464-20031-00

$2.43

13

CABLE, BRAKE

34K-26341-00-00

Unavailable

14

BOOT, WIRE

1E6-26342-00-00

$25.03

15

WIRE, CLUTCH

55U-26335-01-00

$57.89

16

BOOT, WIRE

1E6-26342-00-00

$25.03

17

BOLT (23X)

90123-08090-00

Unavailable

18

NUT

90179-08401-00

Unavailable

19

PIN, CLEVIS (5X6)

91701-06018-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

PIN, COTTER

91490-20025-00

Unavailable

22

GUARD, BRUSH 1

3Y0-26141-00-00

Unavailable

23

GUARD, BRUSH 2

3Y0-26142-00-00

Unavailable

24

SCREW, PAN

98507-06014-00

Unavailable

25

WASHER, PLAIN (646)

92990-06600-00

Unavailable

26

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

27

NUT(650)

95380-06700-00

Unavailable
