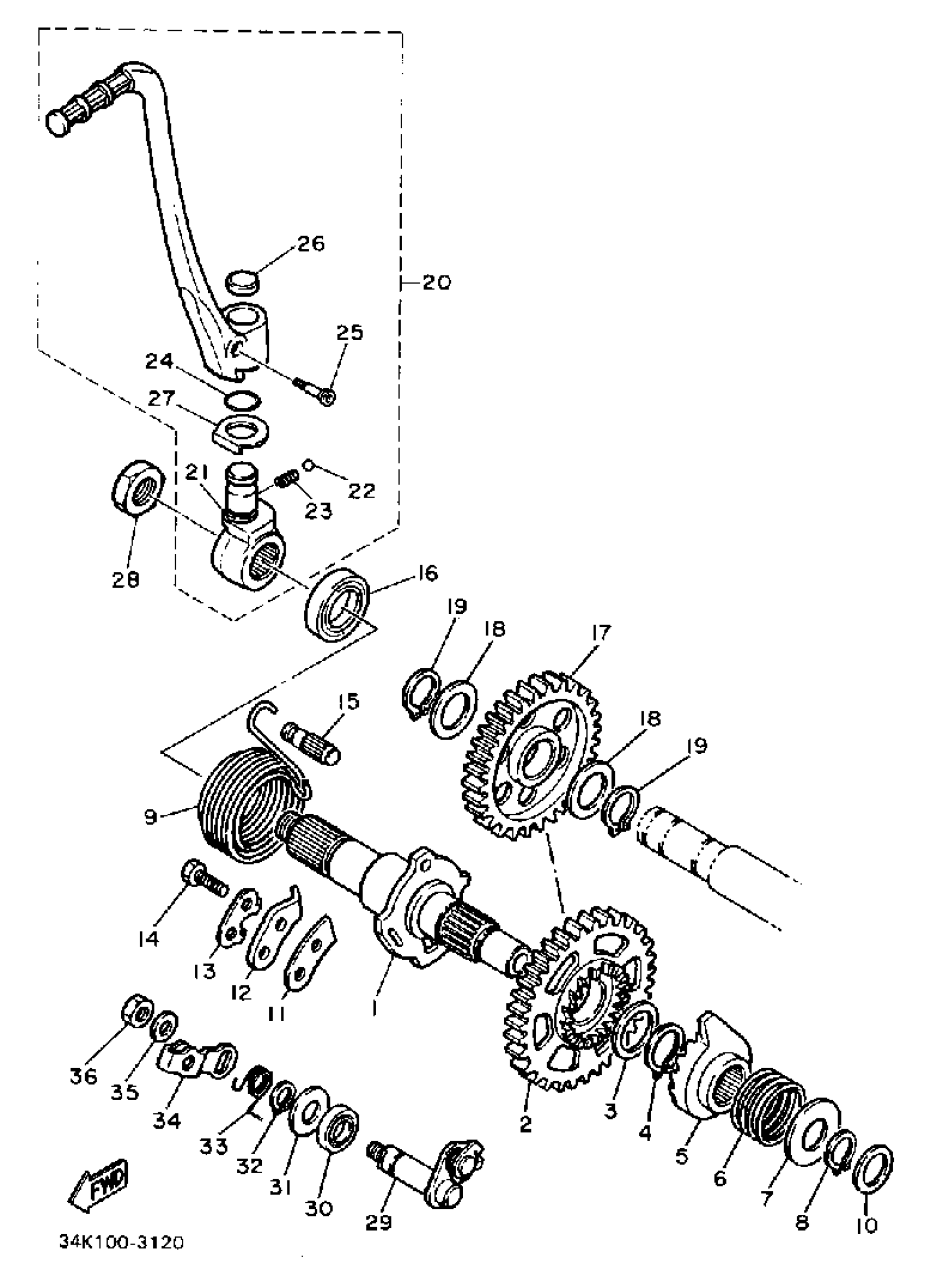

Yamaha TT600K (TT600) 1983 STARTER Diagram
#
Description
Price
1
KICK AXLE ASSEMBLY
34K-15660-00-00
Unavailable
2
GEAR,KICK
34K-15641-00-00
Unavailable
5
WHEEL, RATCHET
5Y1-15671-01-00
Unavailable
6
SPRING COMPRESSION168156750000
90501-16107-00
Unavailable
7
WASHER, PLAIN (1JL)
90201-155K6-00
Unavailable
9
SPRING, TORSION
90508-32529-00
Unavailable
16
OIL SEAL (20X30X7-371)
93102-20108-00
Unavailable
17
GEAR, SPR0CKET IDLE 31T
5Y1-15651-01-00
Unavailable
18
WASHER PLATE 328171160000
90201-20276-00
Unavailable
19
CIRCLIP(1AR)
99009-20400-00
Unavailable
20
KICK CRANK ASSEMBLY
34K-15620-00-00
Unavailable
21
. BOSS, KICK CRANK
34K-15621-03-00
Unavailable
22
BALL
93501-04011-00
Unavailable
23
SPRING, COMPRESSION (23X)
90501-13720-00
Unavailable
24
O-RING (1J7)
93210-16314-00
Unavailable
25
SCREW, COUNTERSUNK (5Y1)
90152-06010-00
Unavailable
26
PLUG (517)
90338-18064-00
Unavailable
27
. STOPPER
34K-15626-00-00
Unavailable
28
NUT(1EE)
90179-12659-00
Unavailable
29
LEVER DCOMP ASSEMBLY
3Y1-1561A-02-00
Unavailable
30
SEAL,OIL(SD 10-21-5 HS,3Y1)
93102-10207-00
Unavailable
31
WASHER, PLATE(52H)
90201-105J4-00
Unavailable
32
CIRCLIP(10W)
99009-10400-00
Unavailable
33
SPRING, TORSION
90508-14524-00
Unavailable
34
LEVER, CABLE
5Y1-1561G-00-00
Unavailable
35
WASHER, PLAIN (646)
92990-06600-00
Unavailable
36
NUT(JN5)
95317-06700-00
Unavailable
