Description

Price

1

SINGLE SEAT ASSEMBLY

34K-24710-11-00

Unavailable

2

. COVER, SEAT

34K-24731-10-00

Unavailable

3

PAD, SEAT

1L9-24741-00-00

$9.99

4

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

5

WASHER, PLATE

90201-06M02-00

Unavailable

6

CARRIER BOX ASSEMBLY

4V5-24850-00-00

Unavailable

7

BRACKET, CARRIER 2

4V5-24833-00-00

Unavailable

8

SCREW PAN HEAD

98580-06020-00

$8.49

9

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

10

WASHER, SPECIAL 1

34K-21615-00-00

Unavailable

11

NUT, SELF-LOCKING

95617-06100-00

$8.49

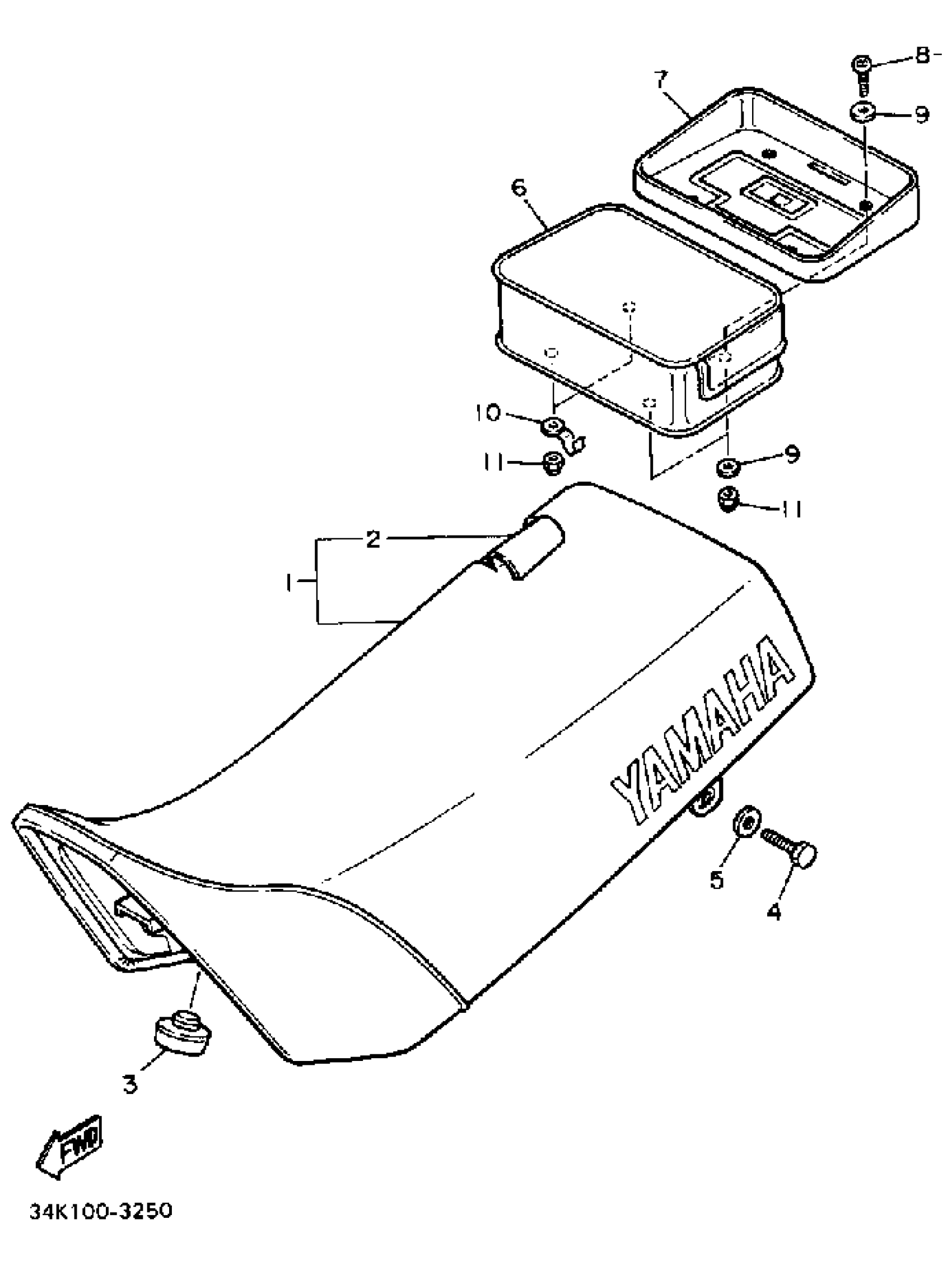

Yamaha TT600K (TT600) 1983 SEAT Diagram

SINGLE SEAT ASSEMBLY

. COVER, SEAT

PAD, SEAT

BOLT, HEXAGON DEEP RECESS

WASHER, PLATE

CARRIER BOX ASSEMBLY

BRACKET, CARRIER 2

SCREW PAN HEAD

WASHER, PLATE (583 REAR FENDER

WASHER, SPECIAL 1

NUT, SELF-LOCKING
